Anytone (ARES II) - All Mode, AM/FM/USB/LSB/PA/WX, Black, 10 Meter Amateur Mobile Radios

Product ID:   PID4698 Specials
Status: Available To Order

Anytone (ARES II) - All Mode, AM/FM/USB/LSB/PA/WX, Black, 10 Meter Amateur Mobile Radios





"Optimum Performance" Upgrade Option:



Anytone (ARES II) - All Mode, AM/FM/USB/LSB/PA/WX, Black


The AnyTone ARES II ALL MODE 10-Meter Radio: Jammed With Features and Superb Audio Quality

The AnyTone ARES II radio was designed for excellent transmit, receive and extreme reliability! AnyTone loaded it with features that are normally only found in much more expensive radios.

AnyTone - Professional radio supplier since 1993.

Features and Specifications:

  • 10-Meter Mobile Amateur Radio
  • 4-Pin Front Microphone Jack
  • Frequency: 28.000-29.695MHz
  • FM, AM, USB, LSB, PA mode
  • Weather Channel 150-170MHz Programmable (Optional)
  • CTCSS/DCS Code (Optional)
  • PWR, RX RSSI S-Meter
  • PC programmable
  • Echo Function
  • SQ, ASQ Function
  • RF GAIN Adjustment
  • Mic Gain Adjustment
  • RF PWR Adjustment
  • Programmable RB
  • NB/ANL Function
  • Offset Function
  • BEEP Voice Prompt
  • +10KHZ Function
  • TOT function
  • HI-CUT Function
  • Busy channel lock
  • Monitor
  • LED Brightness Adjustment
  • SWR Protection
  • Voltage Protection
  • VOX Function
  • RX noise reduction
  • TX noise reduction
  • NPC function
  • SCAN function
  • Specifications:
    • General:
      • Model: AnyTone ARES II
      • Frequency Range: 28.000-29.700MHz (Programmable)
      • Frequency Band: Low - A/B/C/D/E/F; High - A/B/C/D/E/F
      • Frequency Tolerance: ±5.0ppm
      • Channel: 40 channels (programmable) in each band
      • Frequency Control: Phase-Locked-Loop Synthesizer
      • Frequency Tolerance: ±5.00ppm
      • Input Voltage: 13.8V
      • Microphone: with push-to-talk /UP/DN and coiled cord
      • Dimensions: 287(L)x200(W)x61(H)
      • Dimensions: 13"(L)x7.8"(W)x2.4"(H)
      • Weight: 1.5kgs / 3.31#
      • Antenna Connector: UHF, SO239
      • Operating Temperature Range: -20C to +50C
    • Transmitter:
      • Power Output: AM 1-12W Adj / FM: 1-40W Adj / SSB: 1-35W Adj
      • Drain: 8A(with modulation)
      • Modulation: AM/FM/USB/LSB
      • Inter-modulation Distortion: SSB: 3rd order, more than -25dB; 5th order, more than -35dB
      • SSB Carrier Suppression: 55dB
      • Unwanted Sideband: 50dB
      • Frequency Response: AM/FM: 450 to 2500Hz
      • Output Impedance: 50ohms, unbalanced
    • Receiver:
      • Sensitivity:
        • SSB: 0.25µV for 10dB(S+N)/N at greater than 1/2-watt of audio output
        • AM:1.0µV for 10dB(S+N)/N at greater than 1/2watt of audio output
        • FM: 1.0µV for 20 dB (S+N)/N at greater than 1/2 watt of audio output
      • Selectivity: AM/FM: 6dB@3KHz, 50dB@9KHz; SSB: 6dB@2.1KHz, 60dB@3.3KHz
      • Adjacent-Channel Selectivity: AM/FM: 60dB SSB: 70dB
      • Image Rejection: More than 65dB
      • IF Frequency: AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF SSB: 10.695MHz
      • RF Gain Control: 45dB adjustable for optimum signal reception
      • Automatic Gain Control(AGC): Less than 10dB change in audio output for inputs from 10 to 100,000 microvolt.
      • Squelch: Adjustable; threshold less than 0.5µV. Automatic Squelch Control(only AM/FM)0.5µV
      • ANL: Switchable
      • Noise Blanker: RF type, effective on AM/FM and SSB
      • Audio Output Power: 3 watts into 8 ohms
      • Frequency Response: AM/FM: 300 to 2800Hz
      • Built-in Speaker: 8 ohms, round
      • External Speaker(Not Supplied): 8 ohms; disables internal speaker when connected.

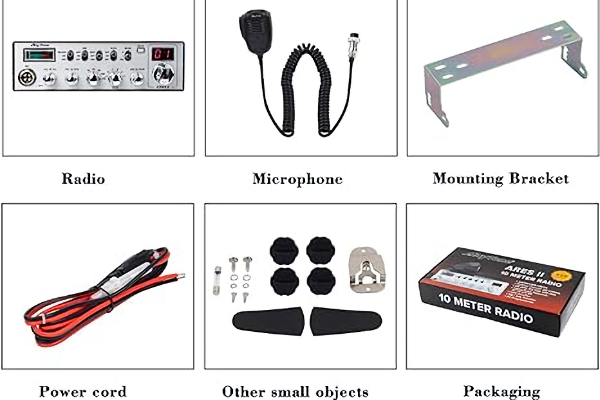

  • Contents:
    • 10 Meter AnyTone ARES II
    • Microphone
    • DC Power Cord
    • Bracket and accessories
    • User's Manual
    • Downloadable software
  • Color: Black
  • Manufacturer's Limited Warranty - 18 Month(s)
  • Sold: Each

AnyTone (ARES II) - 10 Meter Amateur Radio
AnyTone (ARES II) - 10 Meter Amateur Radio

The AnyTone ARES II Instruction Manual

Anytone -10M RADIO ARES II 10 Meter Amateur Radio - Functions and Features

Anytone -10M RADIO ARES II 10 Meter Amateur Radio - Digital Noise Reduction

Anytone (ARES II) - All Mode, AM/FM/USB/LSB/PA/WX

Please Note:
  • This Selection Is Anytone (ARES II) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each
