Ranger (RCI-99N1) - AM/USB/LSB/PA, 7-Color Backlite Bezel Plate, Black

Description:

The Ranger RCI-99N1 (100+ watts) amateur mobile transceiver offers exceptional value for Novice and Experienced operators.

This top-level unit is designed for easy, reliable and safe mobile operation. The RCI-99N1 transceiver provides excellent receiver sensitivity and multi-mode operations.

The easy-to-use frequency selection system covers the 10- meter amateur band in 12-band segments. Actual operating frequency is accurately displayed in the 5-digit LED display that's easy to read even in bright sunlight.

A channel indicator speeds return to a popular or previously used frequency without interfering with the operator's attention to the road.

Selectable Automatic Noise Limiter (ANL) and Noise Blanker assures noise reduction during mobile operation.

Front panel RF power output control and RF Gain controls enable the operator to set transmitter power and receiver sensitivity to match operating conditions.

Additional front panel controls assure optimum performance under widely varying conditions:

• RF Power Amplifier Control ON-OFF Toggle Switch for High/Low Power (100/50 Watt).
• Easy-to-read panel meter - three-functions indicating received signal strength, transmitter power output, and antenna SWR.
• Dual Control Echo and Variable Talkback
• Clarifier Fine Control to tune in SSB signals

For use of the RCI-99N1 in a base station application, Ranger recommends at minimum a 15 Amp power supply.

Ranger Communications, Inc. - Home of top quality communications equipment.

Features and Specifications:

• 10 Meter Mobile Amateur Radio
• AM/USB/LSB/PA
• 100+ watts
• RF Power Amplifier Control ON-OFF Toggle Switch for High/Low Power (100/50 Watt)
• Echo & Talkback
• Built-in Frequency Counter
• Multifunction Panel Meter
• Black Chrome Finish
• Touch Select 7-Color Backlite Bezel Plate
• High Sensitivity Receiver Design
• Variable RF Power Output Control - Adjusts Deadkey Power
• White LED Channel & Frequency Display Lights
• Heavy Duty Heat Sink
• Variable Echo Control & Switched Talk-back
• Antenna Warning Light
• Ranger SRA-198NC Chrome Noise Cancelling Mic Included
• Specifications:
  • General:
    • Model: RCI-99N1
    • Frequency Range: 28.245 - 29.665 MHz
    • Emission: AM/USB/LSB/PA
    • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
    • Frequency Tolerance: 0.005%
    • Frequency Stability: 0.001%
    • Temperature Range: -20C to +50C
    • Antenna Impedance: 50 Ohm
    • Input Voltage: 13.8V DC Normal @ 20 AMP
    • Size: 7 7/8" (W) x 9 1/4" (D) x 2 3/8" (H)
    • Weight: 5 Lbs. 0 Oz.
    • Meter: RF Output, RX Receive Signal Strength, SWR, AM Modulation
  • Transmitter:
    • RF Power Output: AM: 5/25 watts RMS; AM/SSB: 40/100 watts Peak Power
    • RF Transmit Mode: USB, LSB, AM, PA
    • Antenna Connectors: Standard SO-239 type, 50 Ohms
    • Modulation: A3E, J3E
    • Spurious Emission: > -50 dB
    • Carrier Suppression: -50 dB
    • Microphone: Plug-in (4-Pin) noise canceling dynamic; with push-to-talk switch and coiled cord
  • Receiver:
    • AM Sensitivity: 0.5 uV for 10dB Sinad
    • SSB Sensitivity: 0.25 uV for 12dB Sinad
    • Image Rejection: > 50 dB
    • Audio Power Output: 2.5W

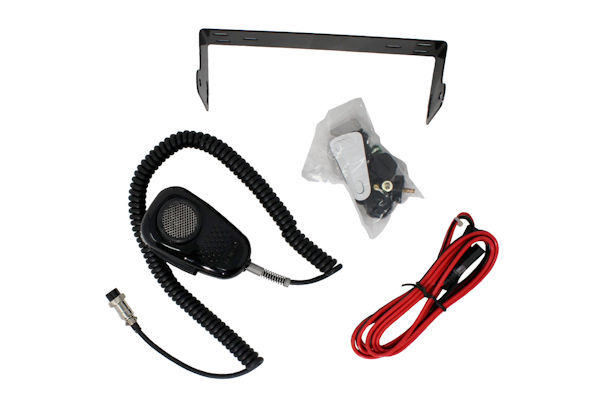

• Contents:
  • 10 Meter RCI-99N1 Radio
  • 4-Pin Dynamic Microphone (SRA-198 Noise Cancelling Mic)
  • DC Power Cord
  • Mounting Bracket with Hardware
  • Installation Hardware
  • User's Manual
• UPC 0073416891005
• Color: Black Chrome Finish
• Manufacturer's Limited Warranty - 2 Year(s)
• Sold: Each

Ranger (RCI-99N1) - AM/USB/LSB/PA
