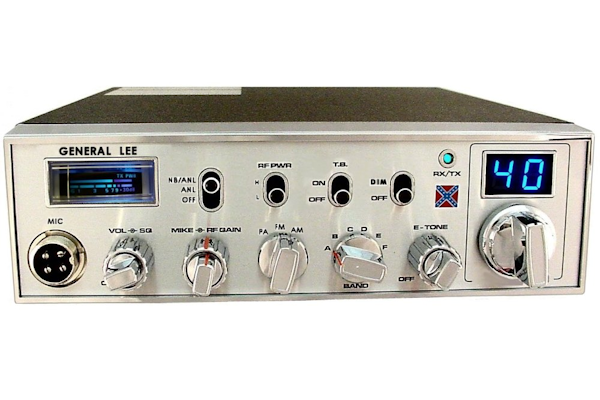

General (Lee) - AM/FM/PA, Black, 10 Meter Amateur Mobile Radios


Product ID:   PID0295
Status: Out of Stock - Can Not Order At This Time


General (Lee) - AM/FM/PA, Black, 10 Meter Amateur Mobile Radios



Price:
Quantity:





"Optimum Performance" Upgrade Option:





General (Lee) - AM/FM/PA, Black


Description:

The General Lee features 40+ watt power output, blue lighting, front mic jack, echo with dual controls and switchable talkback.

General - Amateur Radios


Features and Specifications:

  • 10 Meter Mobile Amateur Radio
  • AM/FM/PA
  • 40+ Watts
  • Small Meter with Scales for Signal Strength and Power Output
  • Front Panel 4 Pin Mic Jack
  • Blue Channel LED's
  • Rear Frequency Counter Jack
  • Dimmer On/Off Switch
  • Vol, Sql, Mic Gain, RF Gain
  • Dual Echo and Talk Back with On/Off Switch
  • Band Selector (6 Bands)
  • 2 Level Power Control
  • ANL-NB/ANL/OFF Switch
  • Blue Lighting for Meter
  • RX/TX Indicator LED
  • Specifications:
    • General:
      • Model: General Lee
      • Frequency Range: 28.015 to 28.585 MHz
      • Emission: AM/FM
      • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
      • Frequency Stability: 0.001%
      • Temperature Range: -30C to +50C
      • Antenna Impedance: 50 Ohms
      • Antenna Connectors: Standard SO-239 type
      • Input Voltage: 13.8V DC
      • Size: 2-3/8" (H) x 7-7/8" (W) x 9-1/4" (D)
      • Weight: 5 lb.
      • Meter: Illuminated; indicates relative output power, received signal strength
    • Transmitter:
      • RF Power Output: Hi: 12W; Lo: 3W
      • Spurious Emission: > -50 dB
      • Audio Distortion: 10%
      • Frequency Response: 300 to 2500 Hz
      • Microphone: Plug-in dynamic; with push-to-talk switch and coiled cord
    • Receiver:
      • Sensitivity for 10 dB (S+N)/N: AM: <1 uV
      • Sensitivity for 20 dB (S+N)/N: FM: <1 uV
      • Squelch Sensitivity: < 0.5 uV
      • Audio Power Output: 2W @ 10% Distortion
      • Image Rejection: > 50 dB
      • AGC Figure of Merit: 50 mV for 10 dB Change in Audio Output
      • Audio Response: 300 to 2500 Hz
  • Contents:
    • 10 Meter General Lee Radio
    • 4 Pin Dynamic Microphone
    • DC Power Cord
    • Mounting Bracket with Hardware
    • Microphone Hanger with Hardware
    • User's Manual
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: Each

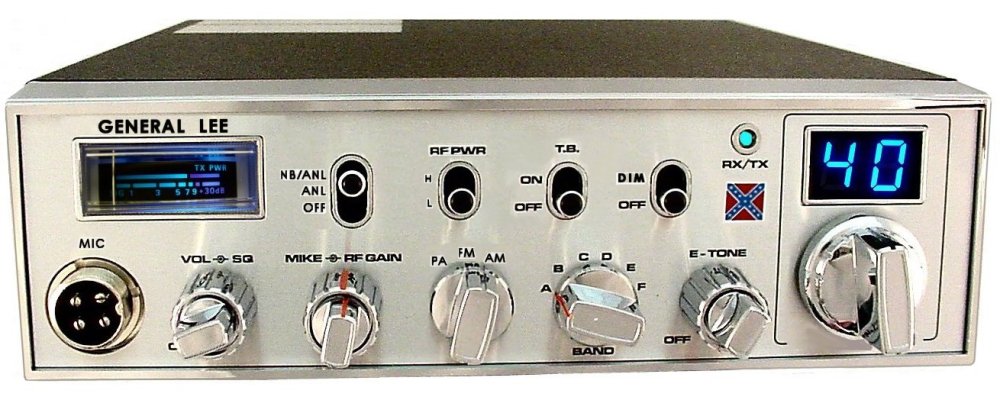

General Lee - 10 Meter Amateur Radio
General Lee - 10 Meter Amateur Radio

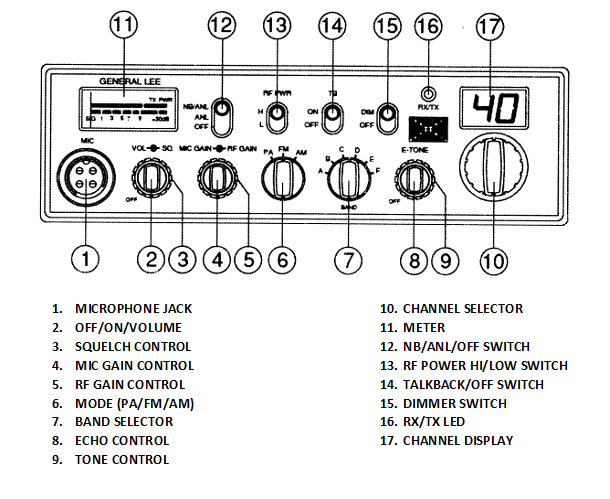

General Lee - Operation's Guide
General Lee - Operation's Guide


The General Lee Manual


General (Lee) - AM/FM/PA

Please Note:
  • This Selection Is General (Lee) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
