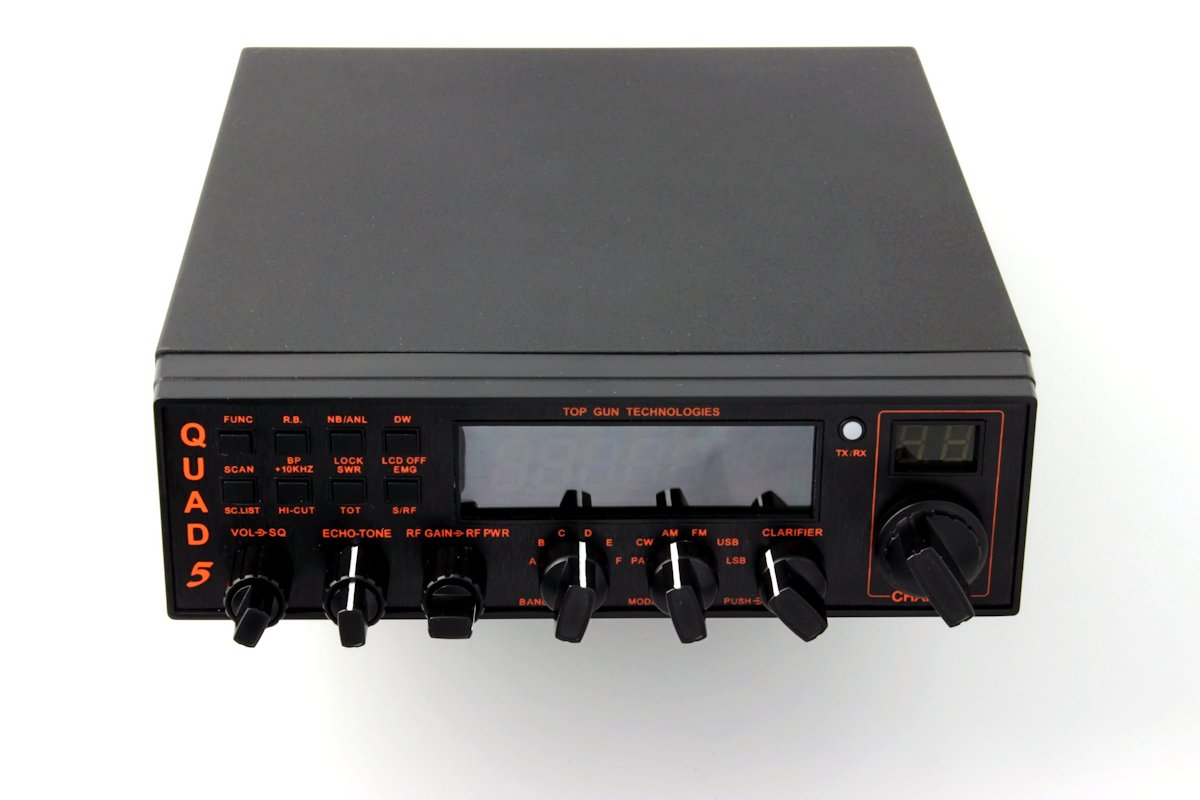

Top Gun Technologies (QUAD-5 Limited Edition) - All Mode, AM/FM/USB/LSB/CW/PA, Black, 10 Meter Amateur Mobile Radios

Product ID:   PID3592 Specials
Status: Available To Order

Top Gun Technologies (QUAD-5 Limited Edition) - All Mode, AM/FM/USB/LSB/CW/PA, Black, 10 Meter Amateur Mobile Radios





"Optimum Performance" Upgrade Option:



Top Gun Technologies (QUAD-5/Limited Edition) - All Mode, AM/FM/USB/LSB/CW/PA, Black


The Top Gun QUAD-5/Limited Edition ALL MODE 10-Meter Radio: Jammed With Features and Superb Audio Quality

The QUAD-5/Limited Edition radio is loaded with memory. Every channel retains the last clarifier frequency and more... It's top of it's class...the audio on both transmit and receive is excellent. Convenient standard 4-pin mic wiring. (Quality UP/DN/Auto Squelch switching mic included.) Program your favorite channel in the EMG channel on each of 6 bands for one button tuning. Your favorite mic is easily updated for UP/DN/ASQ.

  • Computer Programmable! (Programming Cable NOT Included - SEE: PID1301)
  • Front Panel Programmable!
  • Repeater Offset Per Channel Programming
  • Volt Meter
  • Voltage Protection
  • High SWR Protection
  • Mic Gain, Adjustable Echo and Talkback
  • Dual Watch
  • Automatic Squelch
  • SWR Meter and More!

Visit The Quad-5 Resource Center located at TopGunTec.Com for the 'latest' including programming instructions and software.

Note: The QUAD-5 Resource Center is located at the bottom of the TopGunTec.Com's QUAD-5 webpage.

Top Gun Technologies - Providing the Best Products for the CB and Amateur Radio Enthusiast.

Features and Specifications:

  • All Mode 10-Meter Mobile Amateur Radio

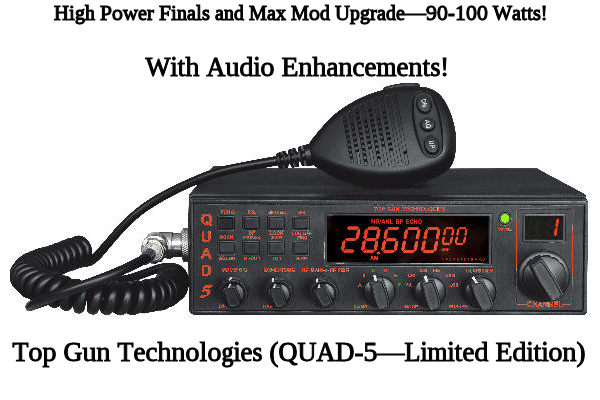

  • High Power Dual Finals with Max Mod Update / 90-100 Watts PEP!
  • With Audio Enhancements!

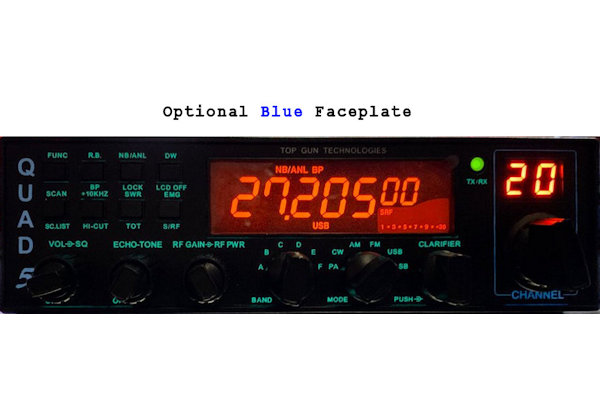

  • Illuminated Faceplate
  • Computer Programmable - Programming Cable NOT Included (SEE: PID1301)
  • Adjustable Talkback And Mic Gain
  • Dual Watch & Scan Feature
  • Dual Control Adjustable Echo
  • Adjustable RF Gain And RF Power
  • No Cal Auto SWR Meter
  • DC Voltage Meter Display
  • SWR And Voltage Protection
  • Hi Cut Tone Control
  • ANL & NB Filters
  • AM/FM Auto Squelch
  • Programmable Clarifier
  • UP/DOWN & Auto Squelch Buttons On Mic
  • Programmable Emergency Channel 1 each For All 6 Bands
  • Specifications:
    • General:
      • Model: QUAD-5/Limited Edition
      • Frequency Range: 28.000MHz-29.700MHz MHz
      • Frequency Range: 28.000MHz-29.700MHz (Programmable)
      • Frequency Band: A/B/C/D/E/F
      • Channels: 60 Channels (Programmable) in Each Band
      • Frequency Control: Phase-Locked-Loop (PLL) Synthesizer
      • Frequency Step: 10Hz 100Hz 1KHz 10KHz
      • Frequency Tolerance: 0.005%
      • Frequency Stability: 0.001%
      • Temperature Range: -30C to +50C
      • Microphone: Plug-in Dynamic; 4-Pin; with Push-To-Talk/Up/Down/ASQ switch and Coiled Cord
      • Input Voltage: DC 13.8V Normal, 15.9V Max, 11.7V Min; Transmit: AM Full Mod 5A; Receiver: Squelched 0.6A, SSB 30W PEP Output 9A
      • Size: 11" x 9 13/16" x 2 13/32" inches (28x25x6CM)
      • Weight: 6.2 pounds (2.8KG)
      • Antenna Connector: UHF, SO239
    • Transmitter:
      • RF Power Output: AM/CW:1-12W (Adjustable); AM PEP 90+W; FM:90+W (Adjustable); USB/LSB:15-90wW (Adjustable)
      • Modulation: High and Low Level Class B; Amplitude Modulation: AM; Varied Capacitance Frequency Modulation: FM
      • Inter-Modulation Distortion: SSB: 3rd Order, More than -25dB; 5th Order, More than -35dB
      • SSB Carrier Suppression: 55 dB
      • Unwanted Sideband: 50dB
      • Frequency Response: AM and FM: 450 to 2500Hz
      • Impedance: 50 Ohms, Unbalanced
    • Receiver:
      • Sensitivity: SSB: 0.25uV for 10dB (S+N)N at Greater than 1/2 Watt of Audio Output
      • Sensitivity: AM: 1.0uV for 10 dB (S+N)N at Greater than 1/2 Watt of Audio Output
      • Sensitivity: FM: 1.0uV for 20dB (S+N)N at Greater than 1/2 Watt of Audio Output
      • Selectivity: AM/FM: 6dB@3KHz, 50dB @9KHz
      • Selectivity: SSB: 6 dB@2.1KHz, 60dB @3.3KHz
      • Image Rejection: More than 65 dB
      • IF Frequency: AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF; SSB: 10.695 MHz
      • Adjacent-Channel Rejection: 60dB AM/FM; 70 dB SSB
      • RF Gain Control: 45 dB Adjustable for Optimum Signal Reception
      • Automatic Gain Control (AGC): Less than 10 dB Change in Audio Output for Inputs From 10 to 100,000 Microvolt
      • Squelch: Adjustable; Threshold Less Than 0.5uV; Automatic Squelch Control (Only AM/FM) 0.5uV
      • ANL: Switchable
      • Noise Blanker: RF Type, Effective on AM/FM and SSB
      • Audio Output Power: 4 Watts Into 8 Ohms
      • Frequency Response: 30 to 2800 Hz
      • Built-In Speaker: 8 Ohms, Round
      • External Speaker Jack: 8 Ohms; Disables Internal Speaker When Connected
  • Contents:
    • 10 Meter QUAD-5/Limited Edition Radio
    • 4 Pin Microphone
    • DC Power Cord
    • Mounting Bracket with Hardware
    • User's Manual
    • Quick Reference Card
  • Optional: QUAD-5 Programming Cable
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: Each

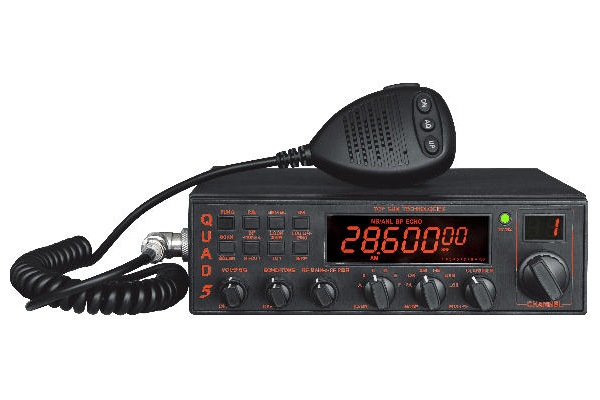

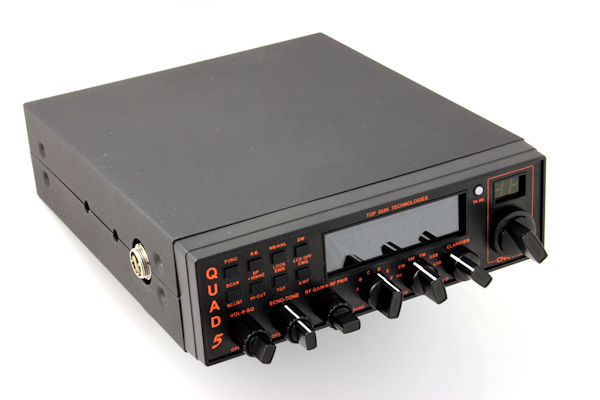

Top Gun Technologies QUAD-5 - 10 Meter Amateur Radio
Top Gun Technologies QUAD-5 - 10 Meter Amateur Radio

Top Gun Technologies QUAD-5 - Operation's Guide
Top Gun Technologies QUAD-5 - Operation's Guide

The QUAD-5 Manual

The QUAD-5 Quick Reference Card (Front)

The QUAD-5 Quick Reference Card (Back)

The QUAD-5 Sales Flyer

The Quad-5 Resource Center

Top Gun Technologies (QUAD-5/Limited Edition) - All Mode, AM/FM/USB/LSB/CW/PA

Please Note:
  • This Selection Is Top Gun Technologies (QUAD-5/Limited Edition) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each

Inventory Status: Available To Order
