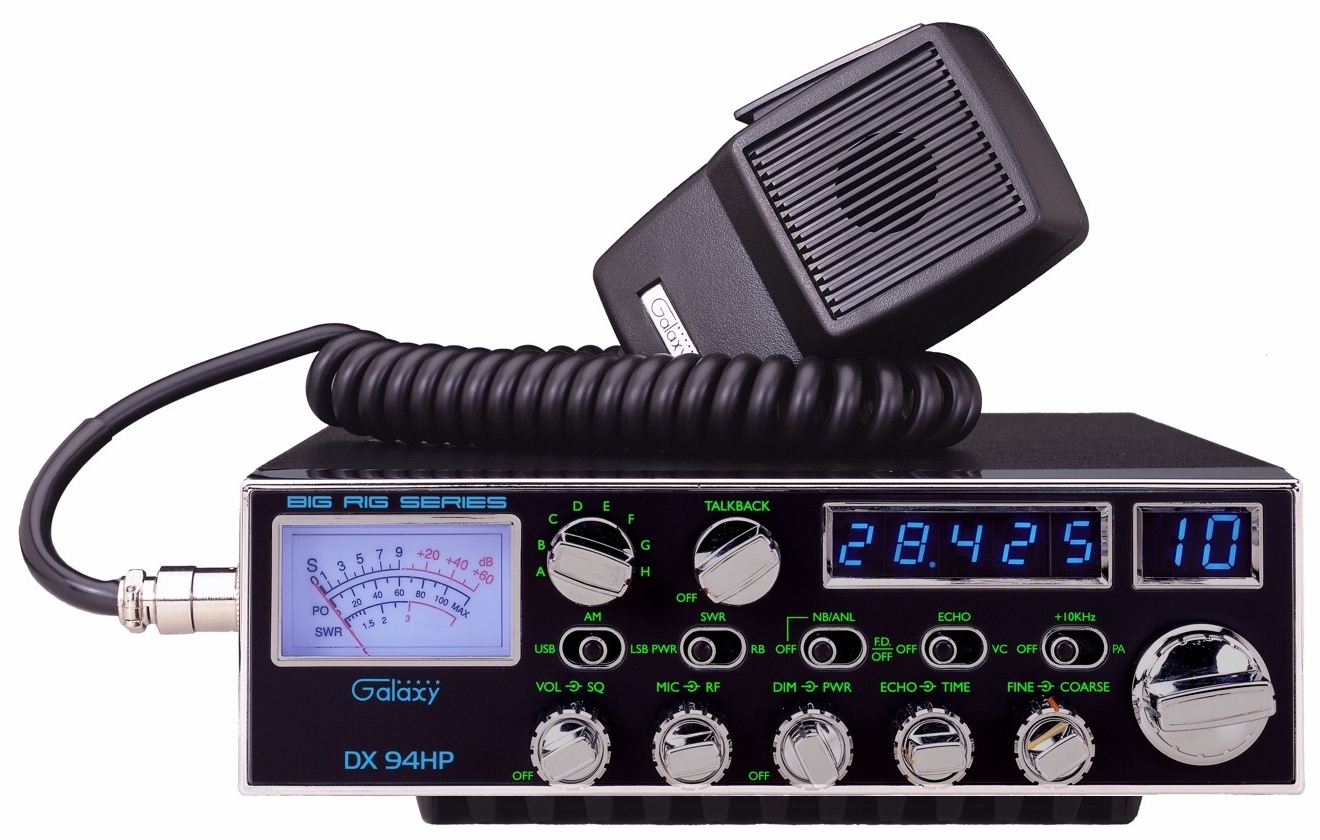

Galaxy (DX 94HP) - AM/USB/LSB/PA, StarLite Faceplate,
Black
Description:
The Galaxy DX 94HP features 100 watt maximum power output
from four IRF520 MOSFETs, blue LEDs for frequency and
channel readouts, a large easy to read meter with scales
indicating power output, SWR and incoming signal
strength, a side mic jack, and the StarLite faceplate.
Galaxy - Amateur and CB Radios
Features and Specifications:
- 10 Meter Mobile Amateur Radio
- AM/USB/LSB/PA, but no FM
- 100 watt maximum power output from four IRF520
MOSFETs
- Maximum current is 25 amps
- Heavy-duty DC power cord
- Low profile bottom heatsink
- Blue LEDs for frequency and channel readouts
- Dual blue LEDs light the signature large meter
- StarLite faceplate (all printing is backlit)
- Meter scales indicating power output, SWR and
incoming signal strength
- Side mic jack - not a front mic jack
- Additional Features Include:
- Variable power output control
- Variable receive gain control
- Echo and Voice Changer like the old DX99V, but no
Robot
- Echo/Voice Changer controls on the front panel,
not inside the radio
- Roger Beep with on/off switch
- Variable dimmer control for LEDs, meter lamp and
faceplate lettering
- Switch to turn off the frequency digits
- Variable Talkback circuit with on/off switch
- Automatic SWR circuit
- Standard clarifier circuit - no on/off switch
- Specifications:
- General:
- Model: DX 94HP
- Frequency Range: 28.315 - 28.755 MHz
- Emission: AM/USB/LSB
- Frequency Control: Phase-Lock-Loop (PLL)
Synthesizer
- Frequency Stability: 0.001%
- Temperature Range: -30C to +50C
- Antenna Impedance: 50 Ohms
- Antenna Connectors: Standard SO-239 type
- Input Voltage: 13.8V DC
- Size: 7 3/4" (W) x 2 7/8" (H) x 10
1/4" (D)
- Weight: 6 lb.
- Transmitter:
- RF Power Output: AM: 5W-40W, USB/LSB: 100W
PEP
- Transmit Current: AM: 14 Amps SSB: 25 Amps
- Spurious Emission: -50 dB
- Unwanted Sideband: -50 dB
- Audio Distortion: 10%
- Frequency Response: 300 to 2500Hz
- Microphone: Dynamic
- Clarifier Range: Coarse: +/- 6.0KHz, Fine:
+/- 1.0KHz
- Receiver:
- Sensitivity for 10 dB (S+N)/N: AM: < 0.5
microV; USB/LSB: < 0.25 microV
- Squelch Sensitivity: < 0.5 microV
- Selectivity: -55 dB
- Image Rejection: -50 dB
- AGC Figure of Merit: 100 mV for 10dB Change
in Audio Output
- Audio Power Output: 2.5W @ 10% Distortion
- Audio Response: 300 to 2500 Hz
- Contents:
- 10 Meter Galaxy DX 94HP Radio
- 4 Pin Stock Microphone
- DC Power Cord
- Mounting Bracket with Hardware
- Microphone Hanger with Hardware
- User's Manual
- UPC 0656955100946
- Color: Black
- Manufacturer's Limited Warranty - 2 Year(s)
- Sold: Each

Galaxy DX 94HP - 10 Meter Amateur Radio

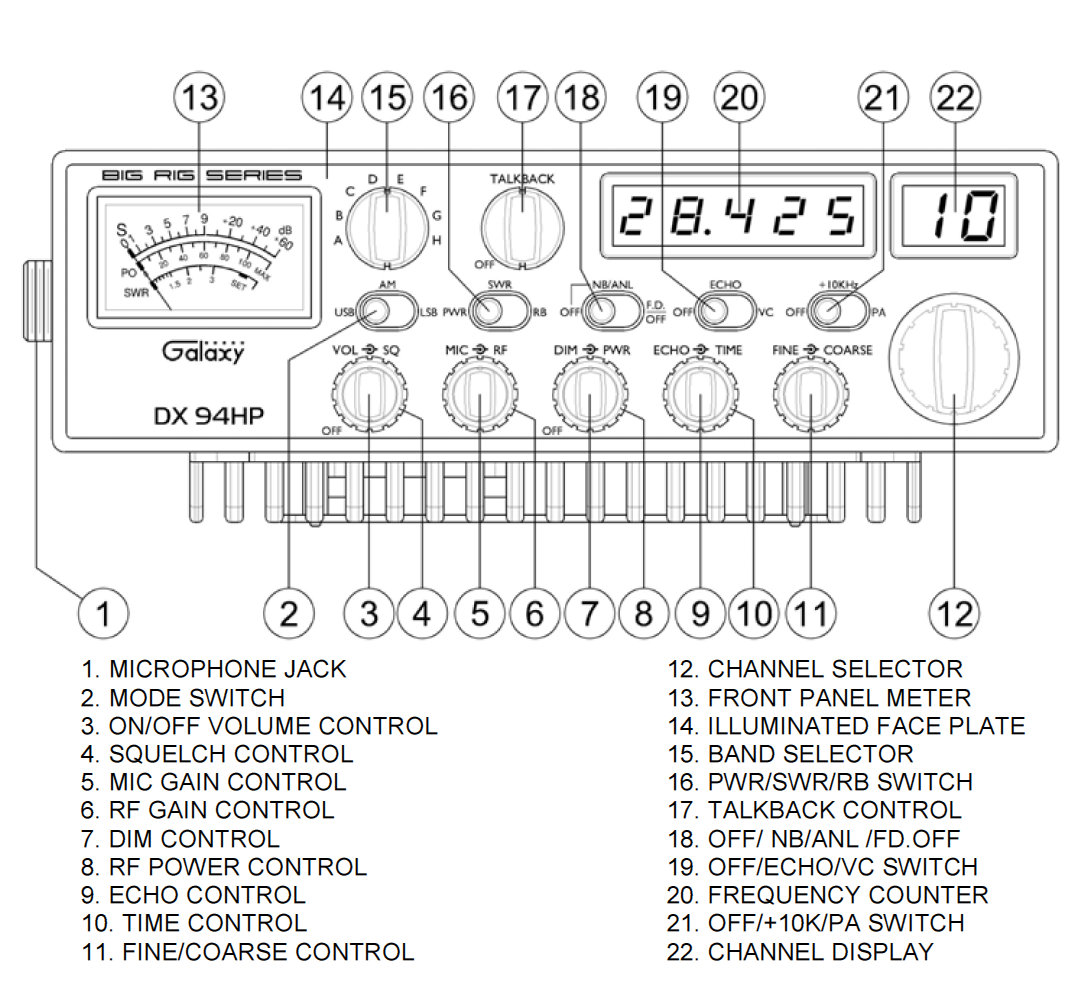

Galaxy DX 94HP - Operation's Guide
The DX
94HP Manual

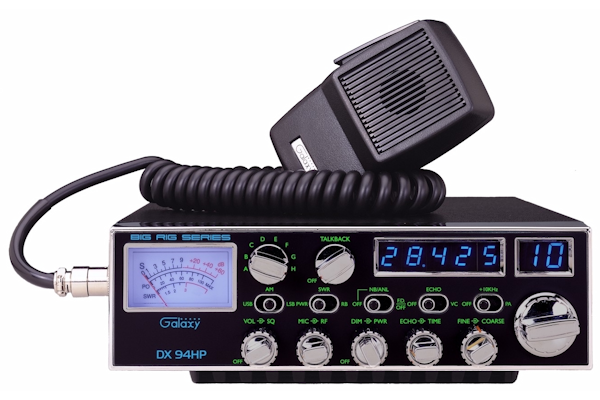

Galaxy (DX 94HP) - AM/USB/LSB/PA
Please Note:
- This Selection Is Galaxy (DX 94HP) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
