~Wilson Electronics (301135) - Dual Band In-Building Panel Antenna with Wall Mounting Hardware, Cell Phone Base Antennas


Product ID:   PID2446
Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.





~Wilson Electronics (301135) - Dual Band In-Building Panel Antenna with Wall Mounting Hardware, Cell Phone Base Antennas

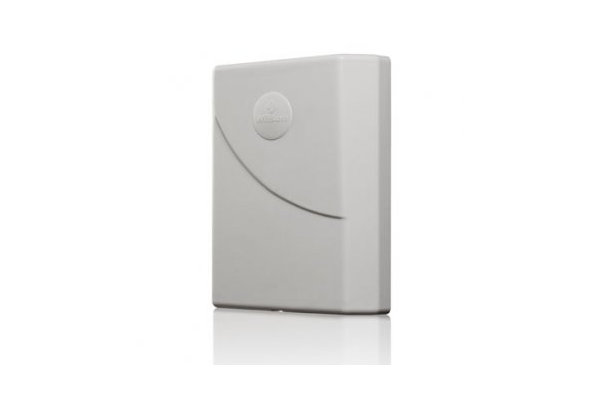

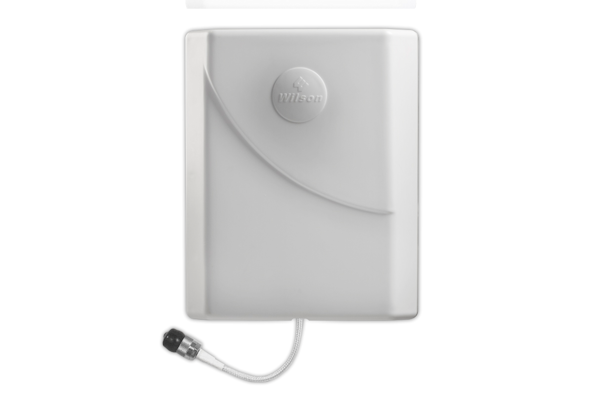

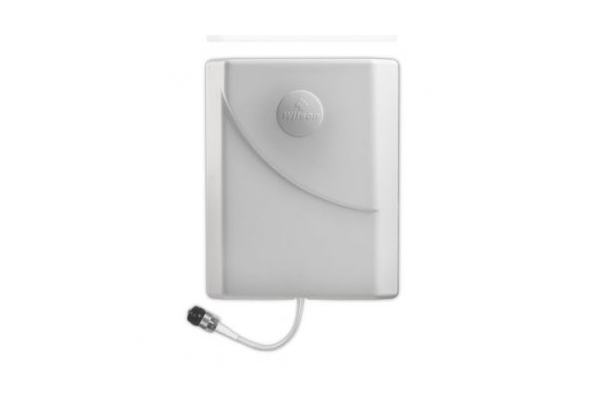

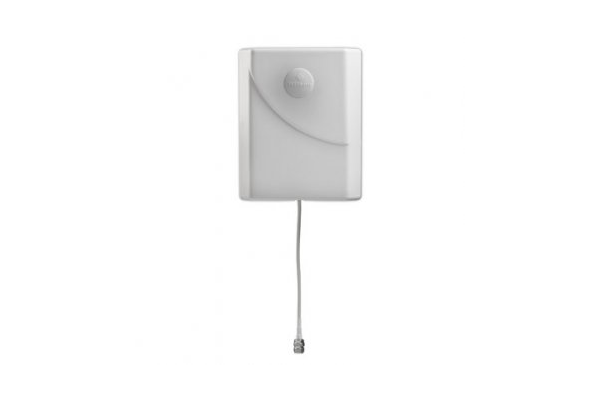

Wilson Electronics (301135) - Dual Band In-Building Panel Antenna with Wall Mounting Hardware


Description:

This wall mount dual band antenna improves transmit and receive signals to cell phones.


Wilson Electronics - Improving your cellular signal.


Features and Specifications:

  • In-Building Panel Antenna
  • Directional Antenna
  • Built-In Ground Plane
  • Mounting Hardware Included
  • For Fixed Installations
  • UPC 0813986005491
  • Color: White
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each


Product Number 301135 301155 304447
700-800 MHz
Gain 		5.2 dBi
824-894 MHz
Gain 		4.4 dBi
880-960 MHz
Gain 		4.2 dBi
1710-1880 MHz
Gain 		10.0 dBi
1850-1990 MHz
Gain 		10.6 dBi
2110-2170 MHz
Gain 		8.2 dBi
Impedance 50 ohms 75 ohms 50 ohms
Polarization Vertical
Max Power 50 watts
Beamwidth Horizontal
Plane 		70 Degree's
Beamwidth Vertical
Plane 		50 Degree's / 45 Degree's
VSWR 1:5:1
Connector N-Female F-Female N-Female
Dimensions 8.27 x 7.09 x 1.73 inches / 21 x 18 x 4.39 cm
Ground Plane Built-In


Wilson Electronics (301135) - Dual Band In-Building Panel Antenna

Please Note:
  • This Selection Is Wilson Electronics (301135) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.
