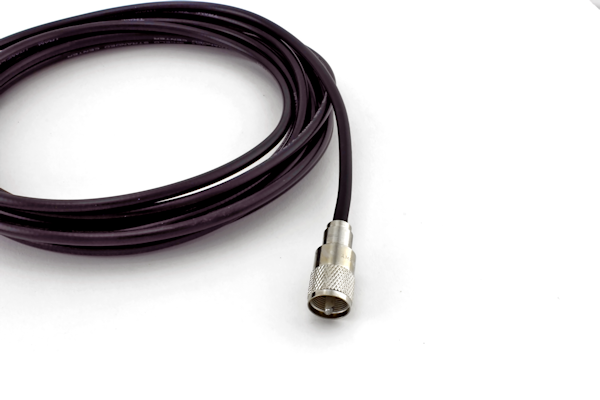

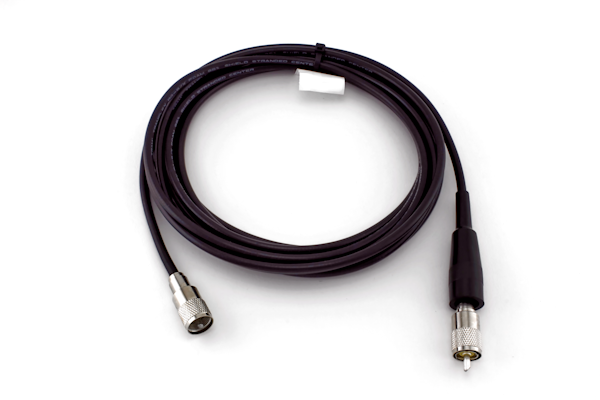

Bob's CB (TGT-8X18-S) - RG-8X Coax, Black, Amphenol PL-259 Connector(s), 18ft, Coaxial Cable

Product ID:   PID2375
Status: Available To Order

Bob's CB (TGT-8X18-S) - RG-8X Coax, Black, Amphenol PL-259 Connector(s), 18ft, Coaxial Cable







Bob's CB (TGT-8X18-S) - RG-8X Coax, Black, Amphenol PL-259 Connector(s), 18ft


Good arteries are important to your heart like good coax cable is important to your radio.

This 18 foot coax is professionally assembled in-house utilizing exacting techniques, high quality connectors, and RG-8X coaxial cable.

RG-8X is a type of coaxial cable often used for amateur radio. The cable has a characteristic impedance of 50 Ohm. RG-8X is a "thinner" version with the electrical characteristics of RG-8U.

Most two-way radio communication systems, such as marine, CB radio, amateur, police, fire, WLAN antennas etc., are designed to work with a 50 Ohm cable.

RG-8X cable is to be used in a "single antenna" installation only.

Bob's CB

Features and Specifications:

  • 18 Foot Cable Assembly Utilizing RG-8X Coaxial Cable
  • RG-8X Coaxial Cable Construction Specifications:
    • Shield Imp. Velocity: Bare Copper Braid 95%, 50 Ohms, 78% VOP
    • Center Conductor: Stranded Bare Copper, 19/29 ga (0.011") (19/0.287mm)
    • Polyethylene Insulation: Foam, 0.155"" (3.94mm)
    • Capacitance: 25.0 pF/ft., 85.00 pF/m
    • Jacket: 0.242" (6.15mm), Black PVC
    • 95% Shield
  • 2 Amphenol PL-259 Connector(s)
  • Professionally Assembled In-House Utilizing Exacting Techniques
  • For "Single Antenna" Installations Only

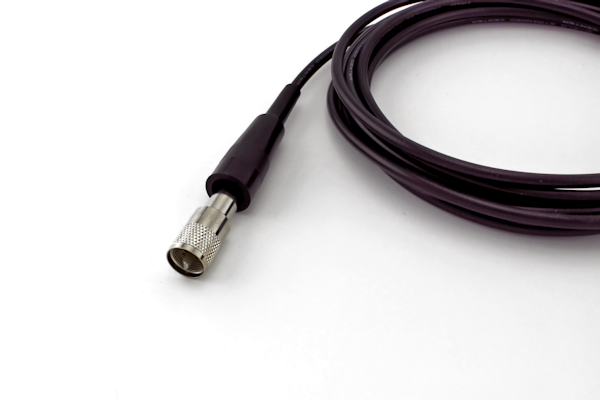

  • Weather Boot - Slides Over Your "Outside" Connector to Protect Your Connection from the Elements
  • Color: Black
  • Sold: Each

Bob's CB (TGT-8X18-S) - RG-8X Coax

Please Note:
  • This Selection Is Bob's CB (TGT-8X18-S) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each

Inventory Status: Available To Order
