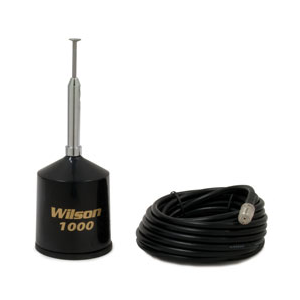

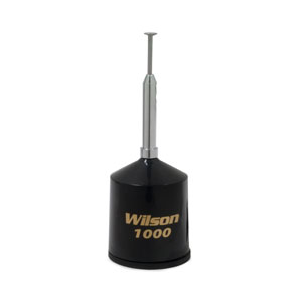

Wilson (880-900802B) - Wilson 1000 Series Roof Top Mount Antenna Kit, Tunable, 62.5in Whip, Black Coil, 3000 Watt, 26-30MHz, Base Loaded, Mobile CB Antennas


Product ID:   PID0891
Status: Out of Stock - Can Not Order At This Time





Wilson (880-900802B) - Wilson 1000 Series Roof Top Mount Antenna Kit, Tunable, 62.5in Whip, Black Coil, 3000 Watt, 26-30MHz, Base Loaded, Mobile CB Antennas



Price:
Quantity:





Additional Handling Upcharge:
Shipping Information:





Wilson (880-900802B) - Wilson 1000 Series Roof Top Mount Antenna Kit, Tunable, 62.5in Whip, Black Coil, 3000 Watt, 26-30MHz, Base Loaded


Description:

Tests by Lockheed show Wilson 1000 has 58% more power gain than the K40.

The Wilson 1000's higher gain performance is a result of several new design developments that bring to you the most powerful CB base loaded antenna available in its price range.

A large portion of the power that goes into a typical base loaded CB antenna is lost as heat in the coil and as dielectric heat loss in the plastic inside the coil form. Many CB antennas lose more than 50% of the power put into them. The power is wasted as heat loss and not radiated as radio waves. Another weak link in other CB antennas is the capacitor used to match the coax to the antenna, which is a cheap and easy way to make the SWR look good, but has lots of power loss, plus blows out when high power is applied to it.

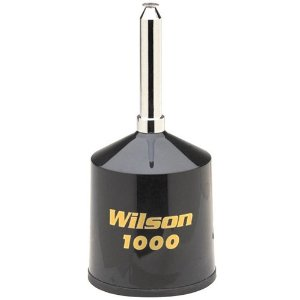

The first priority was to reduce the dielectric loss by removing as much of the plastic inside the coil as possible. This was accomplished by suspending the coil in air, supported only at four small points, 90 degrees apart, in effect removing 95% of the plastic from the inside surface of the coil. This reduced the dielectric loss to a negligible amount.

The second priority was to get rid of the resistive heat losses in the coil. Since most of the RF energy at 27 MHz travels on the surface of the wire, it was decided to increase the surface area by making the diameter of the wire larger 10 GA copper. Since silver is a much better conductor than copper, although very expensive, the wire was heavily silver plated. This reduced the resistive loss to a minimum.

Finally, to get rid of the losses in the matching between the coax and the loading coil, the loss capacitor was eliminated and a difficult but more efficient means of coupling the antenna was used. A Scalar Network Analyzer was used to determine the very precise point to direct match the coil with the coax and obtain the best match with maximum power transfer, which gives the 3000 watts of power handling capability.

So far you have read about why the Wilson 1000 performs better, but the Wilson 1000 is also the most rugged antenna you can buy. It is made with Mobay's Thermoplastic which costs a lot more, but it's the best available.

For the ultimate in performance and power handling see the Wilson 5000 Base Loaded Antenna Kits.

*TEST RESULTS: In tests conducted by Lockheed Corporation, one of the world's largest Aerospace Companies, at their Rye Canyon Laboratory and Antenna Test Range, the Wilson 1000 was found to have 58% more power gain than the K-40 Electronics Company, K40 CB Antenna. This means that the Wilson 1000 gives you 58% more gain on both transmit and receive, on channel 40. Now you can instantly increase your operating range by installing a Wilson 1000.

ANTENNA POWER GAIN: The amount of improvement in power amplification over another antenna. The higher gain antenna will transmit & receive farther, but the actual distance will vary depending on the gain, ground terrain and other environmental factors. Individual test results may vary due to the vehicle's ground plane and matching configuration.


Wilson Antenna - The Name in Over-the-Road Communication.


Features and Specifications:

  • Mobile CB Antenna
  • Tests by Lockheed Show Wilson W1000 has 58% More Power Gain than K40
  • 3000 Watt Power Handling Capability (ICAS)
  • Frequency Range 26MHz to 30MHz
  • Made with High Impact Mobay Thermoplastic
  • 10-Gauge Silver-Plated Coil Winding
  • Exclusive Low Loss Coil Design (Patent #4,882,591)
  • Roof Top Mount Base

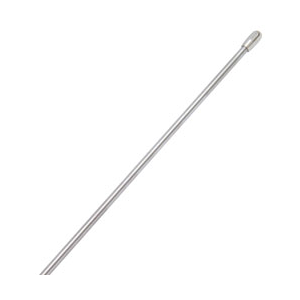

  • 62.5" 17-7 PH Tapered Spring Stainless Steel Whip
  • Removable Coil for Safe Storage & Garage Entrance
  • Weather Channel Ready
  • 17' Coax
  • UPC 0020126900879
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: Each


Wilson 1000 Series
by Mounting Option
Item # UPC Mounting Option
880-900800B 020126900800 Boxed - Black Magnet Mount
880-900802B 020126900879 Boxed - Black Roof Top Mount
880-900803B 020126900848 Boxed - Black Trunk Lip Mount


Wilson (880-900802B) - Wilson 1000 Series Roof Top Mount Antenna Kit

Please Note:
  • This Selection Is Wilson (880-900802B) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each
