~Wilson Electronics (301103) - Dual Band Magnet Mount Antenna with FME Female Connector, 800-1900 MHz, 10ft Coax, Cell Phone Mobile Antennas


Product ID:   PID0838
Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.


~Wilson Electronics (301103) - Dual Band Magnet Mount Antenna with FME Female Connector, 800-1900 MHz, 10ft Coax, Cell Phone Mobile Antennas

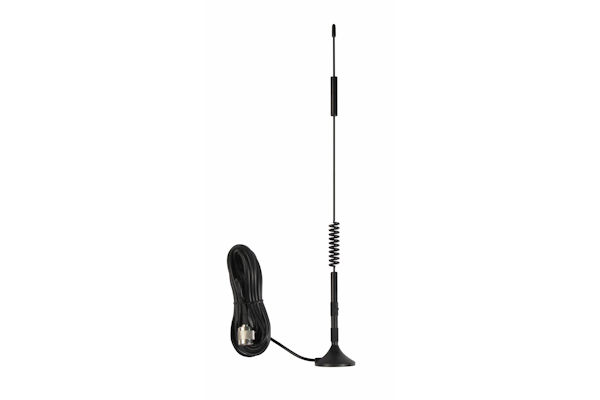

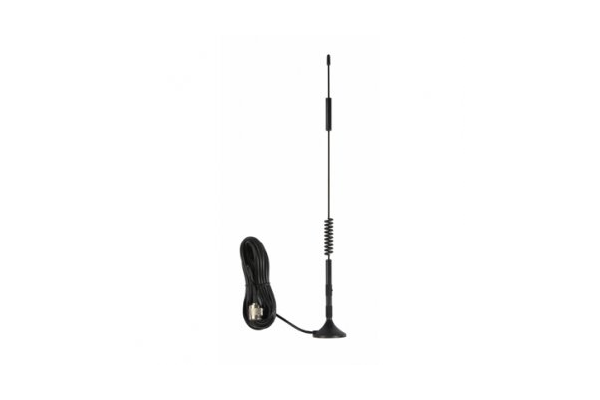

Wilson Electronics (301103) - Dual Band Magnet Mount Antenna with FME Female Connector, 800-1900 MHz, 10ft Coax


Description:

Wilson's best-selling magnet mount antennas install in seconds and are transferable between vehicles.

This antenna is made by earth magnet and requires a metal ground plane (Minimum 3.5 in. diameter).


Wilson Electronics - Improving your cellular signal.


Features and Specifications:

  • Easy to Install
  • Removable - Transfers From One Vehicle to Another
  • Rare Earth Magnet
  • Metal Ground Plane Required (Minimum 3.5 in. Diameter)
  • UPC 0813986000038
  • Color: Black
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each


Product Number 301103 301125 301128 301703
700-800 MHz
Gain
1.9 dBi 1.9 dBi 1.9 dBi -1.9 dBi
824-894 MHz
Gain
5.12 dBi 5.12 dBi 5.12 dBi 5.12 dBi
880-960 MHz
Gain
3.1 dBi 3.1 dBi 3.1 dBi 4.6 dBi
1710-1880 MHz
Gain
-4.0 dBi -4.0 dBi -4.0 dBi 0.3 dBi
1850-1990 MHz
Gain
6.12 dBi 6.12 dBi 6.12 dBi 6.12 dBi
2110-2170 MHz
Gain
2.3 dBi 2.3 dBi 2.3 dBi 0.6 dBi
Impedance 50 ohms
Radiation Omni
Polarization Vertical
Ground Plane Metal ground plane required
Connector FME Female SMA Male TNC Male FME Female
Material Whip - Stainless Steel
Coax Cable RG174 - 10 feet / 3.05 meters
Height 12.25 inches / 31.12 cm
Mount Rare Earth Magnet


Wilson Electronics (301103) - Dual Band Magnet Mount Antenna with FME Female Connector

Please Note:
  • This Selection Is Wilson Electronics (301103) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.
