~SuperStar (SS3) - AM/FM/PA, Compact, Black, 10 Meter Amateur Mobile Radios


Product ID:   PID0789
Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.

~SuperStar (SS3) - AM/FM/PA, Compact, Black, 10 Meter Amateur Mobile Radios





SuperStar (SS3) - AM/FM/PA, Compact, Black


Description:

SuperStar SS3: Size of a Uniden Pro 510XL. Perfect for vehicles with limited space. Popular with hunters.

SuperStar


Features and Specifications:

  • 10 Meter Mobile Amateur Radio
  • The Size of a Uniden Pro 510XL
  • AM/FM/PA
  • Front Panel 4 Pin Mic Jack
  • On/Off/Vol Control
  • Auto Squelch (ASQ)/SQL Control
  • Band Selector (6 Bands)
  • Channel Selector
  • PA/CB Switch
  • Mode Switch
  • Channel 19/Off Switch
  • S/RF Indicator
  • Channel Display
  • TX LED
  • Specifications:
    • SuperStar:
      • Model: SuperStar SS3
      • Frequency Range: 28.045 to 28.465 MHz
      • Emission: AM/FM
      • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
      • Frequency Stability: 0.001%
      • Temperature Range: -20C to +50C
      • Antenna Impedance: 50 Ohms
      • Antenna Connectors: Standard SO-239 type
      • Input Voltage: 13.8V DC
      • Size: 190mm W x 120mm D x 31mm H
      • Weight: 1kg
      • S/RF Indicator: indicates relative output power, received signal strength (green = low; red = high)
    • Transmitter:
      • RF Power Output: FM: 4W AM: 4W (PEP)
      • Spurious Emission: > -60 dB
      • Audio Distortion: < 10%
      • Frequency Response: 300 to 2500 Hz
      • Microphone: Piezoelectric Mic
    • Receiver:
      • Sensitivity for 10 dB (S+N)/N: AM: 0.5 uV
      • Sensitivity for 20 dB (S+N)/N: FM: 0.5 uV
      • Squelch Sensitivity: < 0.5 uV
      • Image Rejection: > 60 dB
      • Audio Power Output: 3W @ 10% Distortion
      • Audio Response: 300 to 2500 Hz
  • Contents:
    • 10 Meter SuperStar SS3 Radio
    • 4 Pin Piezoelectric Microphone
    • DC Power Cord
    • User's Manual
  • UPC 0705105786193
  • Color: Black
  • Manufacturer's Limited Warranty
  • Sold: Each

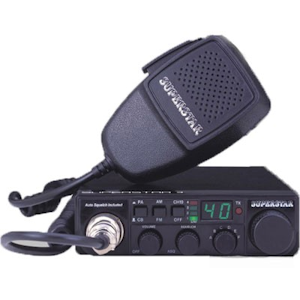

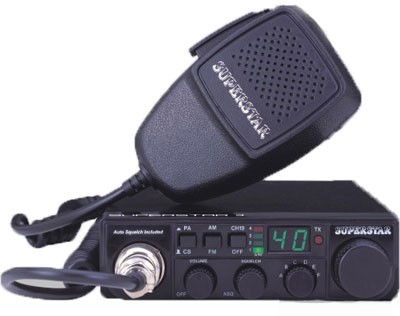

SuperStar SS3 - 10 Meter Amateur Radio
SuperStar SS3 - 10 Meter Amateur Radio

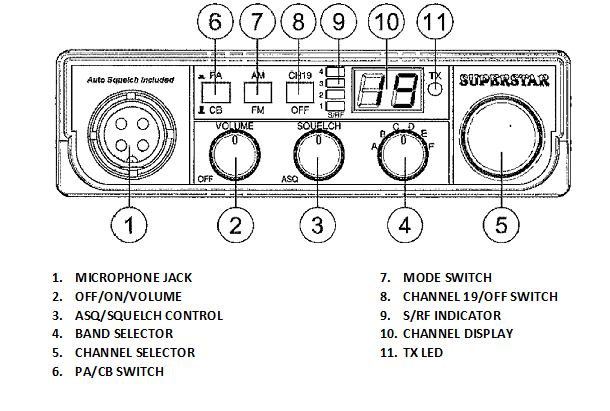

SuperStar SS3 - Operation's Guide
SuperStar SS3 - Operation's Guide


The SuperStar SS3 Manual


SuperStar (SS3) - AM/FM/PA

Please Note:
  • This Selection Is SuperStar (SS3) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.
