Anytone (AT5555N II) - All Mode, AM/FM/USB/LSB/CW/PA, Black, 10 Meter Amateur Mobile Radios


Product ID:   PID4663 Specials
Status: Available To Order







Anytone (AT5555N II) - All Mode, AM/FM/USB/LSB/CW/PA, Black, 10 Meter Amateur Mobile Radios



Price:
Quantity:





"Optimum Performance" Upgrade Option:





AnyTone (AT5555N II) - All Mode, AM/FM/USB/LSB/CW/PA, Black


Description:

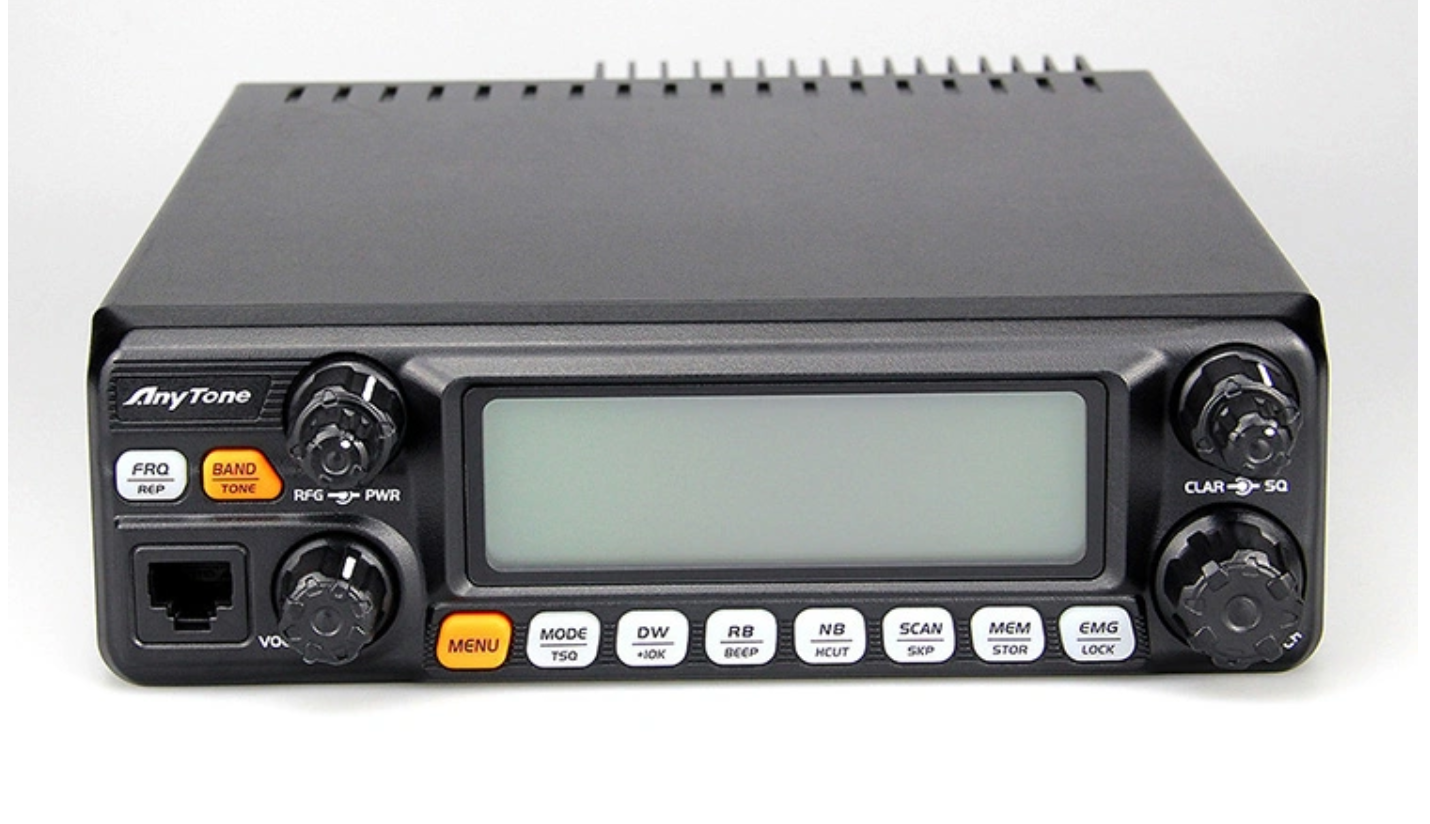

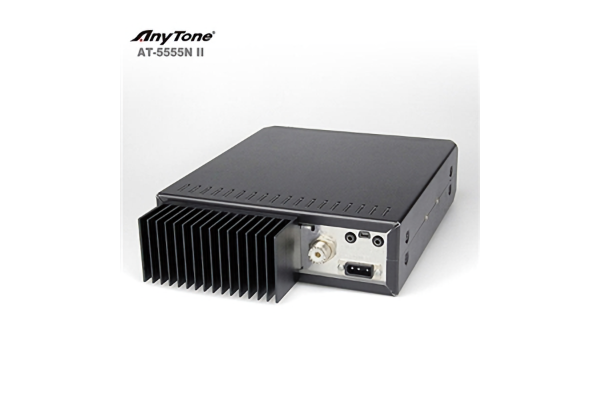

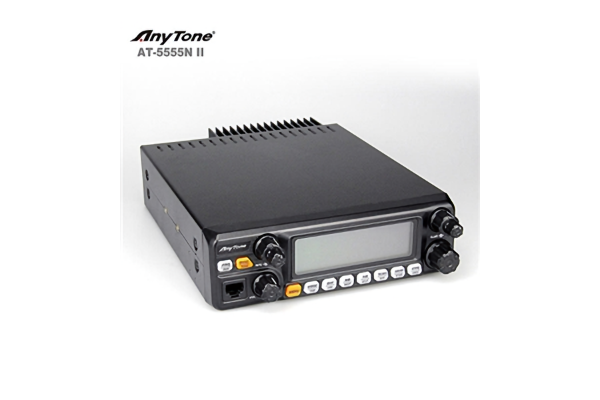

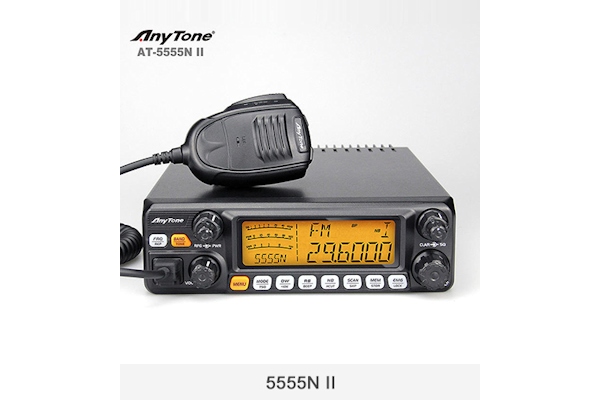

The AnyTone AT5555N II ALL MODE 10-Meter Radio: Jammed With Features and Superb Audio Quality

The AnyTone AT5555N II radio was designed for excellent transmit, receive and extreme reliability! AnyTone loaded it with features that are normally only found in much more expensive radios.

AnyTone - Professional radio supplier since 1993.


Features and Specifications:

  • All Mode 10-Meter Mobile Amateur Radio
  • RJ45 Front Microphone Jack
  • Optional (4-Pin Cobra Compatible Mic to Anytone AT5555NII RJ45 Connector) Microphone Adapter - Sold Separately. (SEE: PID4666)
  • Frequency: 28.000-29.700MHz (25.615~30.105MHz)
  • Big LCD displays frequency and all kinds of information
  • FM, AM, USB, LSB, PA mode
  • Frequency Tuning Step 100Hz, 1KHz, 10KHz, 100KHz, 1MHz
  • ▒1.5KHz CLARIFIER Adjustment
  • Flexible Menu Function and PC Program Software
  • ECHO Function
  • SQ, ASQ Function (FM and AM mode only)
  • RF GAIN Adjustment
  • RF PWR Adjustment
  • SCAN Function
  • Programmable RB Function
  • NB/ANL Function
  • DW DUAL-WATCH Function
  • Offset Frequency Function
  • BEEP Voice Prompt
  • +10KHZ Function
  • SIG, PWR, SWR Function
  • TOT function
  • HI-CUT Function
  • EMG Channel Function
  • SWR Protection
  • Power Supply Voltage Protection
  • Key-Lock Function
  • Six(6) Groups Memory Channel
  • Model Name Customized Function
  • CTCSS/DCS Code
  • VOX Function
  • TX and RX Noise Reduction
  • Compatible with electronic and dynamic MIC type
  • WX weather channel
  • Weather Alert - WX Channels
    • WX-01: 162.400MHz
    • WX-02: 162.475MHz
    • WX-03: 162.425MHz
    • WX-04: 162.450MHz
    • WX-05: 162.500MHz
    • WX-06: 162.525MHz
    • WX-07: 162.550MHz
  • Specifications:
    • General:
      • Model: AnyTone AT5555N II
      • Frequency Range: 28.000-29.700MHz
      • Frequency Band: A/B/C/D/E/F/G/H/I
      • Frequency Tolerance: ▒5.0ppm
      • Channel: 40 channels (programmable) in each band
      • Frequency Control: Phase-Locked-Loop Synthesizer
      • Frequency Step: 100Hz, 1KHz, 10KHz, 100KHz, 1MHz
      • Frequency Tolerance: ▒5.00ppm
      • Input Voltage: 13.8V
      • Microphone: with push-to-talk /UP/DN and coiled cord

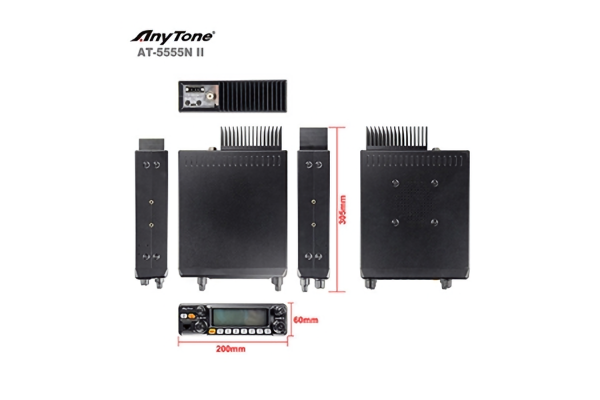

      • Dimensions: 305(L)x200(W)x60(H)
      • Weight: 1.75kgs
      • Antenna Connector: UHF, SO239
      • Operating Temperature Range: -20C to +50C
    • Transmitter:
      • Power Output: AM PEP: 60W / FM: 50W / SSB: 60W(PEP)
      • Drain: 10A(with modulation)
      • Modulation: AM/FM/USB/LSB
      • Inter-modulation Distortion: SSB: 3rd order, more than -25dB; 5th order, more than -35dB
      • SSB Carrier Suppression: 55dB
      • Unwanted Sideband: 50dB
      • Frequency Response: AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz
      • Output Impedance: 50ohms, unbalanced
    • Receiver:
      • Sensitivity:
        • SSB: 0.25ÁV for 10dB(S+N)/N at greater than 1/2-watt of audio output
        • AM:1.0ÁV for 10dB(S+N)/N at greater than 1/2watt of audio output
        • FM: 1.0ÁV for 20 dB (S+N)/N at greater than 1/2 watt of audio output
      • Adjacent-Channel Selectivity: AM/FM: 60dB SSB: 70dB
      • Image Rejection: More than 65dB
      • IF Frequency: AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF SSB: 10.695MHz
      • RF Gain Control: 45dB adjustable for optimum signal reception
      • Automatic Gain Control(AGC): Less than 10dB change in audio output for inputs from 10 to 100,000 microvolt.
      • Squelch: Adjustable; threshold less than 1.0ÁV. Automatic Squelch Control(only AM/FM)1.0ÁV
      • Audio Output Power: 3 watts into 8 ohms
      • Frequency Response: AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz
      • Built-in Speaker: 8 ohms, round
      • External Speaker(Not Supplied): 8 ohms; disables internal speaker when connected.
  • Contents:
    • 10 Meter AnyTone AT5555N II

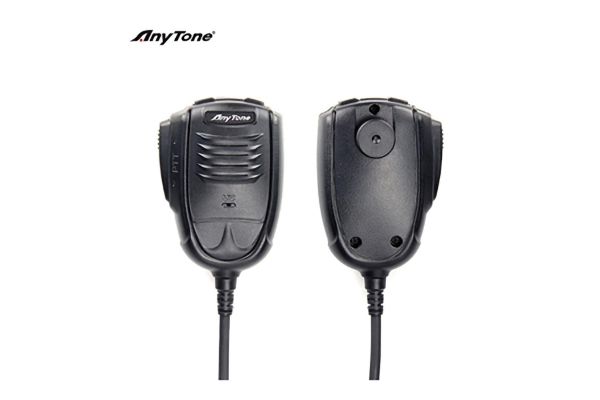

    • Microphone

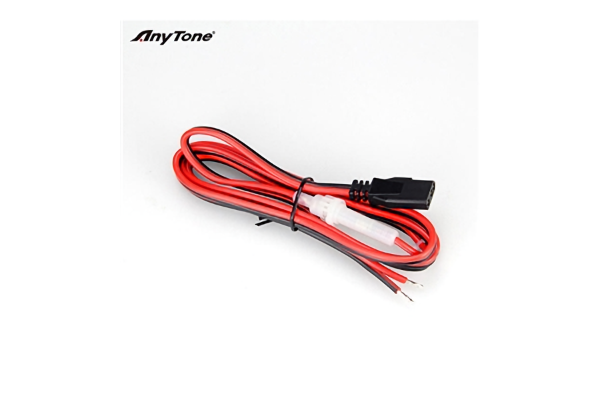

    • DC Power Cord

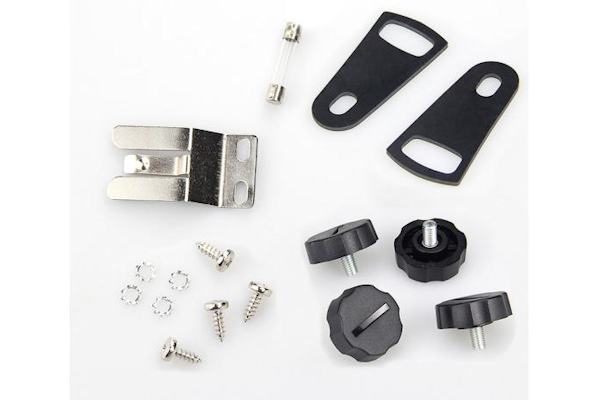

    • Bracket and accessories
    • User's Manual
    • Downloadable software
  • Color: Black
  • Manufacturer's Limited Warranty -
  • Sold: Each


AnyTone (AT5555N II) - 10 Meter Amateur Radio
AnyTone (AT5555N II) - 10 Meter Amateur Radio


The AnyTone AT5555N II Operating Instructions


Anytone -10M RADIO AT5555N II High Power CB Radio SSB Transceiver - Full Screen Video


AnyTone (AT5555N II) - All Mode, AM/FM/USB/LSB/CW/PA

Please Note:
  • This Selection Is AnyTone (AT5555N II) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Available To Order
