Ranger (RCI-69 BASE) - AM/FM/USB/LSB/CW/PA, Black, Factory Warranty Only, 10 Meter Base Amateur Radios


Product ID:   PID4516
Status: Available To Order



Ranger (RCI-69 BASE) - AM/FM/USB/LSB/CW/PA, Black, Factory Warranty Only, 10 Meter Base Amateur Radios



Price:
Quantity:





"Optimum Performance" Upgrade Option:





Ranger (RCI-69 BASE) - AM/FM/USB/LSB/CW/PA, Black, Factory Warranty Only


Description:

No Store Warranty - Factory Warranty Only.

NEW and latest RCI-69VHP main PC board for increased stability and sensitivity!

Designed to enhance any serious operators shack, this rack-mounted unit offers exceptional sound quality and large, easy-to-use controls. The RCI-69 BASE has features that include: AM-CW-FM-SSB-PA modes of operation, variable power, noise blanker and built-in heavy duty AC power supply and provides 60 watts PEP output, and a rear panel frequency meter output for measuring transmit operating frequency.

Ranger Communications, Inc. - Home of top quality communications equipment.


Features and Specifications:

  • 10 Meter Base Amateur Radio
  • AM/FM/USB/LSB/CW/PA
  • 60+ watts
  • New and latest RCI-69VHP main PC board
  • New RT-1 Mosfets design
  • Five digit frequency counter
  • Two large, easy to read Meters
  • Meter Scales for Signal, Power Output, SWR and Modulation (AM only)
  • Variable dimmer control
  • Red/Green Transmit/Receive LED
  • Noise Filter circuit for increased signal to noise ratio
  • "On Demand" switchable Talk Back circuit with Volume Control
  • Noise Blanker / Automatic Noise Limiter
  • Roger Beep
  • Mic Gain
  • Variable Output Power
  • 1.5KHz Clarifier for Receive only
  • 5.0KHz Clarifier for Receive and Transmit
  • Echo Tone & Time controls
  • 4-Pin Mic Jack
  • Specifications:
    • General:
      • Model: RCI-69 BASE
      • Frequency Range 10 Meter: 28.7650 ~ 29.2050 MHz
      • Modes: AM/FM/USB/LSB/CW/PA
      • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
      • Frequency Tolerance: 0.005%
      • Frequency Stability: 0.003%
      • Temperature Range: -30C to +50C
      • Antenna Impedance: 50 Ohm
      • Antenna Connector: Standard SO-239 Type
      • Input Voltage: 110V 60 Hz (220V 50 Hz Inside Switch)
      • Meter #1: RF Output Power / Antenna SWR
      • Meter #2: Receive Signal Strength/MOD%
      • Weight: 26 lb 8 oz
    • Transmitter:
      • RF Power Output: AM/CW: 20 watts RMS; FM: 50W; AM/SSB 60 watts PEP
      • Antenna Connectors: UHF Type, 50 Ohms
      • Spurious Emissions: -60 dB
      • Carrier Suppression: -60 dB
      • AM Modulation: Up to 100%
      • Clarifier Range: +/- 5KHz XMT & REC; +/-1.5KHz REC Only
    • Receiver:
      • CW/AM Sensitivity: 0.5 uV for 10dB S/N
      • FM Sensitivity: 0.25 uV for 20dB S/N
      • SSB Sensitivity: 0.3 uV for 10dB S/N
      • Squelch Sensitivity: 0.5 uV
      • Selectivity: -55 dB
      • Image Rejection: > -50 dB
      • Adjacent Channel Rejection: > -60 dB
      • Audio Power Output: > 2.5W at 10 THD
  • Contents:
    • 10 Meter RCI-69 BASE Base Station Radio
    • 4 Pin Stock Microphone
    • User's Manual
  • UPC 0073416869288
  • Color: Black
  • No Store Warranty - Factory Warranty Only.
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each

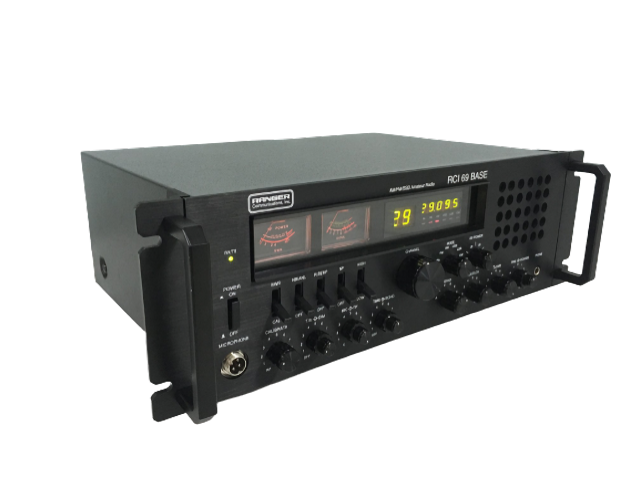

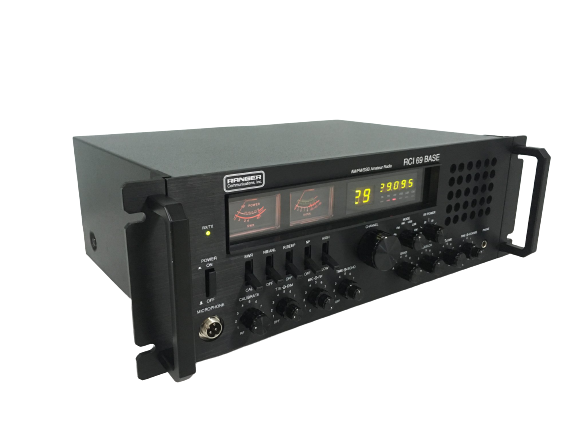

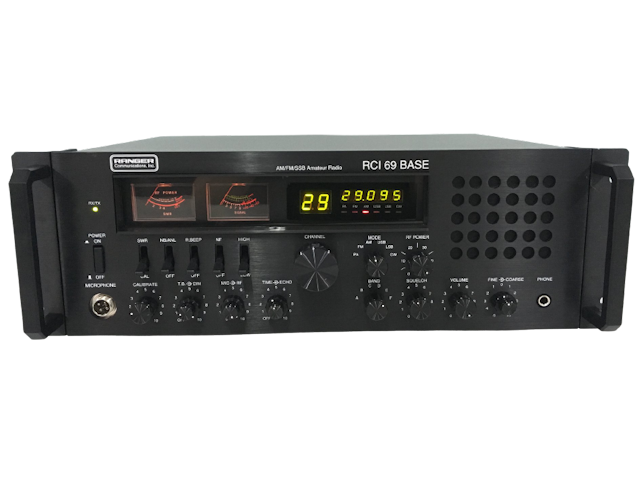

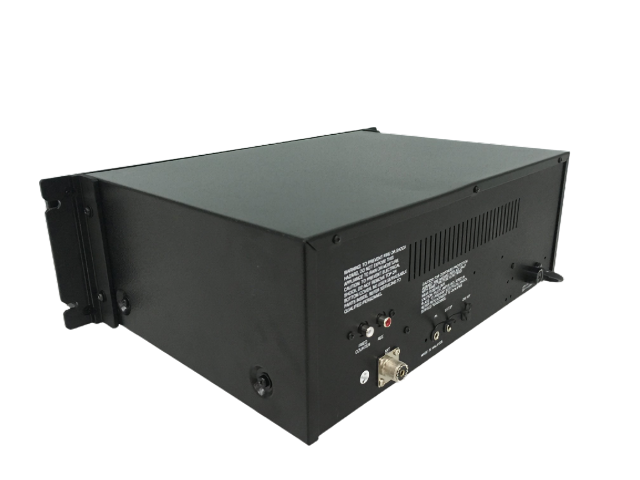

Ranger RCI-69 BASE - 10 Meter Amateur Base Station Radio
Ranger RCI-69 BASE - 10 Meter Amateur Base Station Radio

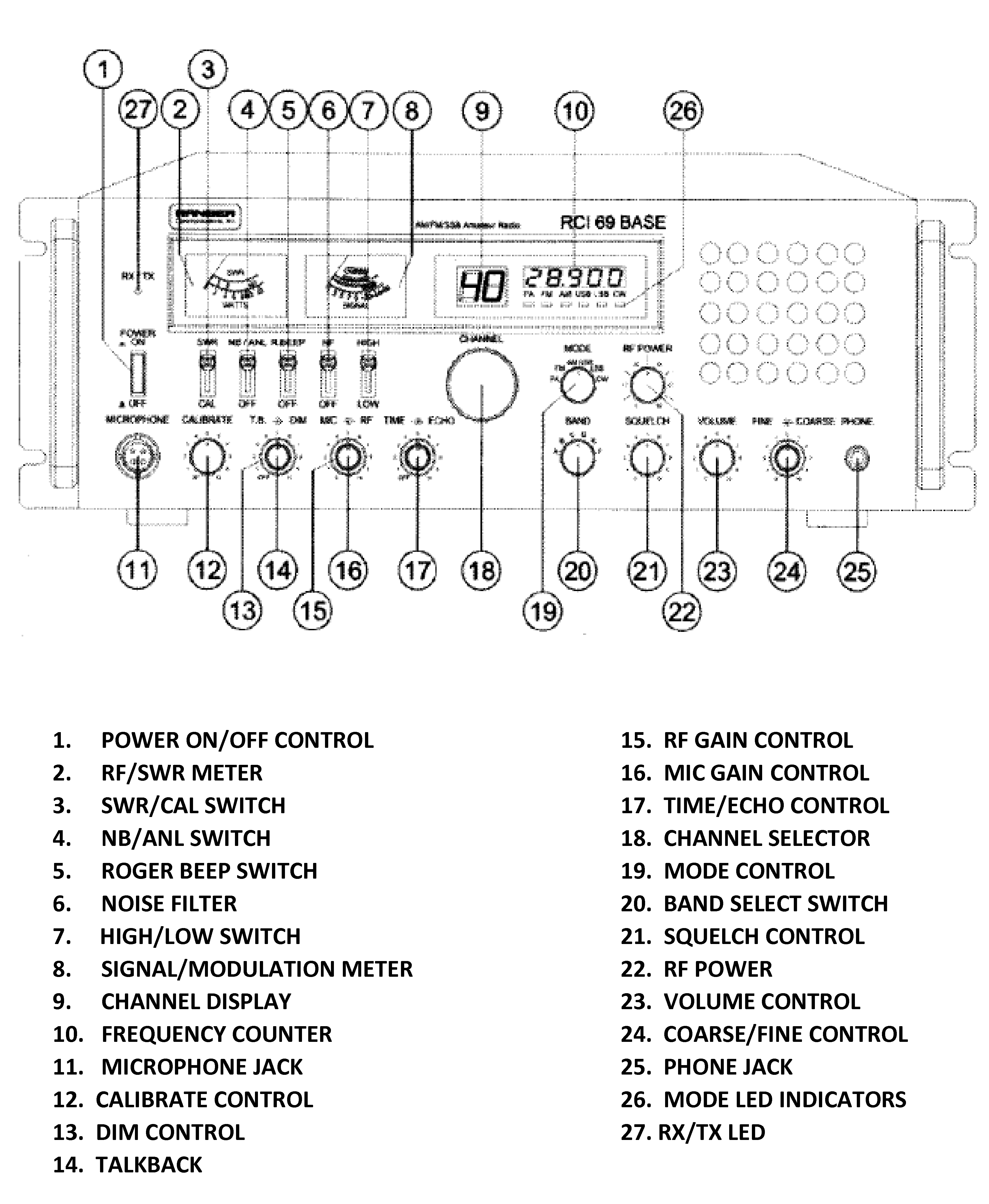

Ranger RCI-69 BASE - Operation's Guide - Front
Ranger RCI-69 BASE - Operation's Guide - Front

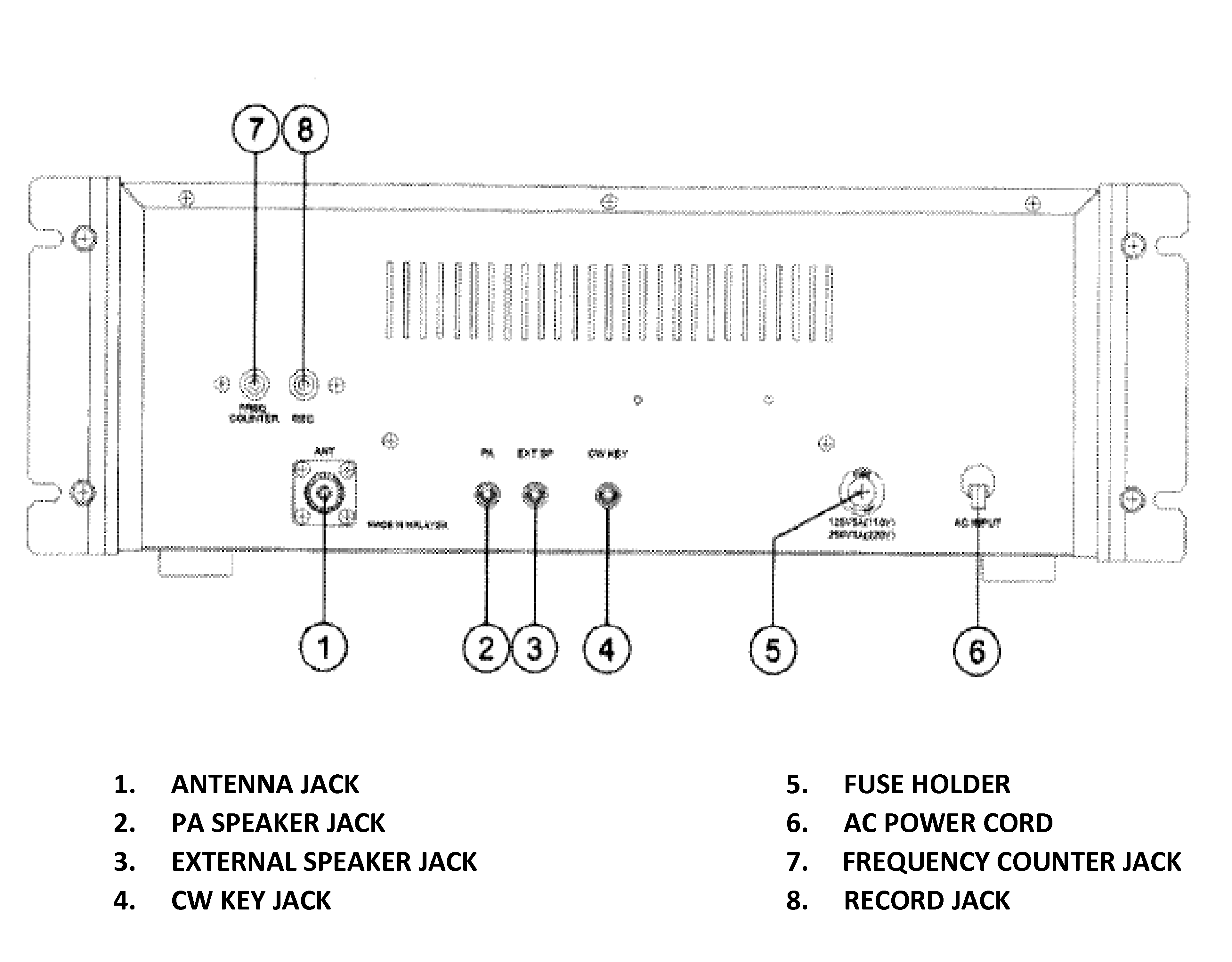

Ranger RCI-69 BASE - Operation's Guide - Back
Ranger RCI-69 BASE - Operation's Guide - Back


Ranger RCI-69 BASE User's Manual


Ranger (RCI-69 BASE) - AM/FM/USB/LSB/CW/PA

Please Note:
  • This Selection Is Ranger (RCI-69 BASE) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Available To Order
