Ranger (RCI-X9) - AM/USB/LSB/PA, 7-Color Backlite Bezel Plate, Black, 10 Meter Amateur Mobile Radios


Product ID:   PID4459
Status: Out of Stock - Can Not Order At This Time


Ranger (RCI-X9) - AM/USB/LSB/PA, 7-Color Backlite Bezel Plate, Black, 10 Meter Amateur Mobile Radios



Price:
Quantity:




"Optimum Performance" Upgrade Option:





Ranger (RCI-X9) - AM/USB/LSB/PA, 7-Color Backlite Bezel Plate, Black


Description:

RCI 10 Meter Amateur Radio - Same Size as the 40 Channel Cobra 29LTD

The Ranger RCI-X9 features a clean 120+ watts PEP on all modes -- AM, USB, and LSB. The RCI-X9 has all the features a radio operator wants in a top-of-the-line sideband radio including a true frequency counter--not just a frequency display, like the competition. Experience Ranger's legendary quality and 30 years of sideband engineering expertise with the RCI-X9.

Highlights:

  • Size of a Cobra 29LTD

  • Twin Cooling Fans

  • 120 Watts Peak

  • AM/SSB/PA Modes

  • Multi Color Backlite Bezel Plate

  • White LED Display Lights

  • Variable Echo Control

  • Talk-back

  • Variable power

  • Antenna Warning Light

  • SRA-198 Noise Cancelling Mic

  • SRA-198 Noise Cancelling Mic

  • Built in Frequency Counter

  • 12 Bands, Hi/Lo Band Switch

  • Mic Gain

For use of the Ranger RCI-X9 in a base station application, Ranger recommends at minimum a 35 Amp power supply.

Ranger Communications, Inc. - Home of top quality communications equipment.


Features and Specifications:

  • 10 Meter Mobile Amateur Radio
  • AM/USB/LSB/PA
  • 120+ watts
  • Variable Echo & Variable Talkback Volume Control
  • Built-in Frequency Counter
  • Multifunction Panel Meter
  • High Sensitivity Receiver Design
  • Variable RF Power Output
  • Multi Color Backlite Bezel Plate
  • Fine Control for Clarifier
  • Variable Dim Control
  • NB/ANL
  • Self Calibrating SWR Circuit
  • RX/TX LED
  • Specifications:
    • General:
      • Model: RCI-X9
      • Frequency Range: 28.315 - 29.660 MHz
      • Modes: AM/USB/LSB/PA
      • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
      • Frequency Tolerance: 0.005%
      • Frequency Stability: 0.001%
      • Temperature Range: -20C to +50C
      • Antenna Impedance: 50 Ohm
      • Input Voltage: 13.8V DC
      • Size: 7 3/8" (W) x 8 3/4" (D) x 2 1/4" (H)
      • Weight: 5 Lbs. 8 Oz.
      • Meter: RF Output, RX Receive Signal Strength, SWR, AM Modulation
      • Front 4-Pin Mic Jack
      • Includes a SRA-198 Noise Cancelling Mic
    • Transmitter:
      • RF Power Output: AM: 30 watts RMS; AM/SSB: 120 watts PEP
      • RF Transmit Modes: USB, LSB, AM
      • Antenna Connector: Standard SO-239 Type, 50 Ohms
      • Modulation: A3E, J3E
      • Spurious Emission: > -50 dB
      • Carrier Suppression: -50 dB
      • Microphone: Plug-in (4-Pin) dynamic noice cancelling; with push-to-talk switch and coiled cord
    • Receiver:
      • AM Sensitivity: 0.5 uV for 10dB Sinad
      • SSB Sensitivity: 0.25 uV for 12dB Sinad
      • Image Rejection: >50 dB
      • Audio Power Output: 2.5W
  • Contents:
    • 10 Meter RCI-X9 Radio
    • 4 Pin Dynamic Microphone (SRA-198 Noise Cancelling Mic)
    • DC Power Cord
    • Mounting Bracket with Hardware
    • User's Manual
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: Each

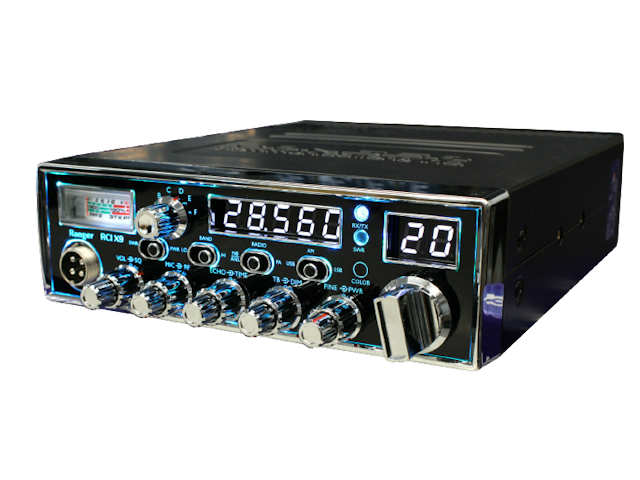

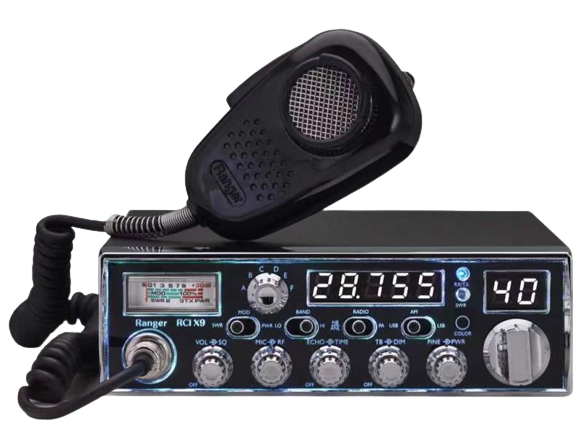

Ranger RCI-X9 - 10 Meter Amateur Radio
Ranger RCI-X9 - 10 Meter Amateur Radio


Ranger RCI-X9 - Operation's Guide
Ranger RCI-X9 - Operation's Guide


The Ranger RCI-X9 Manual


Ranger (RCI-X9) - AM/USB/LSB/PA

Please Note:
  • This Selection Is Ranger (RCI-X9) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
