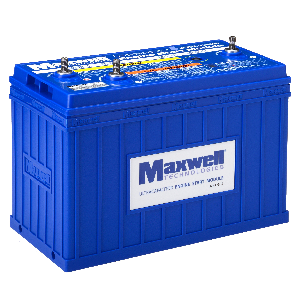

Maxwell Technologies (ESM ULTRA 31/1800) - HD (Class 7-8)
Engine Start Module, Starts Your Truck Every Time, Cold
Starts to -40F, 1800CCA, 15 Minute Recharge Time
Description:
Maxwell's Ultracapacitor-Based Engine Start
Module
Fleets with heavy and medium duty trucks depend on the
Maxwell Engine Start Module (ESM) for fast, reliable
starting in cold and hot climates. Rugged, lightweight,
and low maintenance, the Maxwell ESM takes over all heavy
duty engine cranking and is used to crank diesel engines
and engines running on alternative fuels, including
compressed natural gas (CNG), liquid natural gas (LNG),
biodiesel, dimethyl ether (DME) and propane or liquefied
petroleum gas (LPG). The Maxwell ESM gives drivers the
confidence to shut off and start their trucks throughout
the day-helping to minimize idling and in turn reduce
both fuel consumption and engine wear-and-tear.
The Maxwell ESM is by far the leading
ultracapacitor-based engine starting product on the
market today and offers unmatched capability in truck
starting.
Maxwell Technologies - ESM ULTRA 31/1800 - HD (Class
7-8) Engine Start Module
You live in your truck, you work in your truck, but your
batteries don't always start your truck. In cold or
freezing weather, after a night of running hotel loads on
batteries or sitting in line at a weigh station with
anti-idle laws, your batteries frequently do not have the
power needed to start your engine.
Don't leave starting to batteries. The Engine Start
Module from Maxwell Technologies will provide the power
to start your truck consistently, for the life of your
truck.
Replace a battery or add the Engine Start Module to a
heavy duty truck for reliable starting from -40F to 149F
(-40C to +65C)
Five Reasons to Install an Engine Start Module from
Maxwell:
- 1. It's easy to install: The ESM fits into a
conventional battery box. A qualified technician can
install the module in about an hour.
- 2. It's low maintenance: The ESM is built around
safe, dependable ultracapacitors that require little
maintenance. Just install it and forget about it.
- 3. It pays for itself: The ESM virtually eliminates
the cost and downtime of jump-starts associated with
discharged or failed batteries.
- 4. It's ultra-reliable: The ESM delivers power
for hundreds of thousands of starts ensuring trouble-free
starts and on-scheduled deliveries.
- 5. It enables compliance: With the ESM installed,
compliance with anti-idling laws is enhanced. Drives can
reliably start after a night of running sleeper loads.
Maxwell Technologies - Enabling Energy's
Future.
Features and Specifications:
- Heavy Duty - Class 7-8 - Engine Start Module
- 1800 Cold Cranking Amps (3-sec start) provides Engine
Start reliability
- No lead. No acid
- Improves overall system power performance
- Shock & vibration resistant
- Built-in overcharge protection
- Low total cost of ownership
- Cold weather reliability down to -40 F
- Faster cranking
- Industry standard BCI Group 31 form factor
- Recharges fully in less than 15 minutes
- Long-life - limited 4 year full replacement warranty
- ESM Specifications (12V)
- Voltage Input voltage (B+) 10 - 18 V
- Output voltage (max.) 16.2 V
- Cold cranking amps 1800 CCA (3 sec. crank)
- Peak power 32.8 kW
- Maximum recharge time 20 minutes (recharge from
battery at 10 A)
- BCI Group 31: 13"L x 6 13/16" W x 9
7/16" H / (330mm L x 173mm W x 240mm H)
- Terminals SAE 3/8"-16 UNC, 3 each
- Environmental Design for heavy truck battery box
environments
- Weight 21 lbs (9.5kg)
- Current draw 25 A max. (from battery)
- Color: Blue
- Manufacturer's Limited Warranty - 4 Year(s)
- Sold: Each
Maxwell Technologies (ESM ULTRA 31/1800) - HD (Class
7-8) Engine Start Module
Please Note:
- This Selection Is Maxwell Technologies (ESM ULTRA
31/1800) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
