JL Audio (C1-075ct) - 0.75in (19mm) Component Tweeters, Pair, 50 Watt RMS, 6 Ohm, JL Audio Mobile Audio

Product ID:   PID3985
Status: Available To Order

JL Audio (C1-075ct) - 0.75in (19mm) Component Tweeters, Pair, 50 Watt RMS, 6 Ohm, JL Audio Mobile Audio







JL Audio (C1-075ct) - 0.75in (19mm) Component Tweeters, Pair, 50 Watt RMS, 6 Ohm

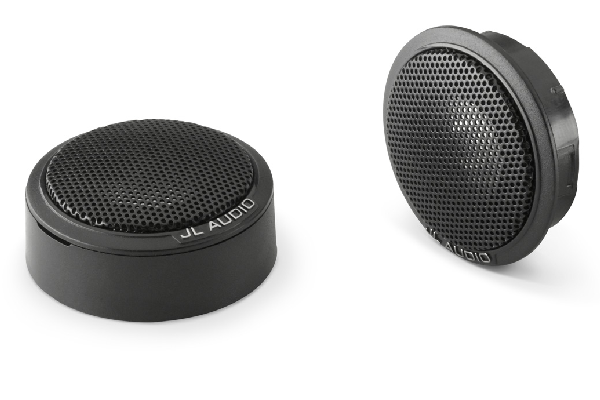

0.75-inch (19 mm) Aluminum Dome Tweeters

C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 0.75-inch aluminum domes with silk suspensions, the C1-075ct component tweeters provide smooth, detailed reproduction of treble frequencies from 4 - 24 kHz.

The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These fliters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.

When it comes to value, C1 is the real deal!

Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.


Aluminum Dome Tweeter - Lightweight Aluminum Dome tweeters deliver sparkling high-frequency detail that extends well beyond the frequency response of typical human hearing.

Compared to similar textile designs, aluminum tweeter diaphragms offer superior stiffness and high-frequency extension, with only a minor penalty in efficiency. JL Audio's aluminum dome tweeters employ a rubber surround and ferrous fluid in the motor gap to damp the aluminum diaphragm. This additional damping reduces ringing and improves the tweeter's smoothness of reproduction while still delivering the high-frequency energy and extension that metal domes are known for.

JL Audio - Ahead of the curve.

Features and Specifications:

  • 0.75-inch (19 mm) Aluminum Dome Tweeters
  • Continuous Power Handling (RMS): 50 W
  • Peak Music Power*: 150 W
  • Recommended Amplifier Power (RMS): 20 - 50 W / Ch.
  • System Efficiency: 91.0 dB @ 1 W / 1 m
  • System Nominal Impedance: 6 Ohm
  • System Frequency Response: 4 kHz - 24 KHz +/- 3 dB
  • UPC 0699440990486
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: Each
*With supplied crossover

C1-075ct Tweeter - Physical Specifications
C1-075ct Tweeter - Physical Specifications

Flush Mount Fixture Diameter (A1) 1.67 in / 42 mm
Surface Mount Fixture Diameter (A2) 1.71 in / 43 mm
Flush Mount Mounting Hole Diameter (B) 1.46 in / 37 mm
Flush Mount Mounting Depth (C) 0.40 in / 10 mm
Flush Mount Tweeter Frontal Protrusion (D1) 0.23 in / 6 mm
Surface Mount Tweeter Frontal Protrusion (D2) 0.76 in / 19 mm

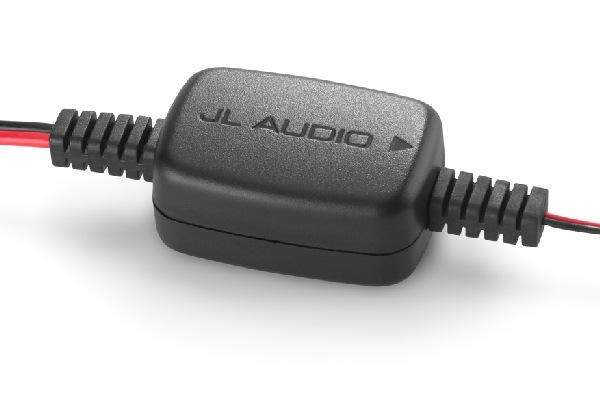

Crossover - Physical Specifications
Crossover - Physical Specifications

Width (W) 1.96 in / 50 mm
Depth (D) 1.34 in / 34 mm
Height (H) 0.90 in / 23 mm

The C1-075ct Product Manual

JL Audio (C1-075ct) - 0.75in (19mm) Component Tweeters

Please Note:
  • This Selection Is JL Audio (C1-075ct) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each

Inventory Status: Available To Order
