Powerbass (APS-100) - 100-Amp AC to DC Power Supply with Built-In Cooling Fan, Power Supplies


Product ID:   PID3970
Status: Out of Stock - Can Not Order At This Time




Powerbass (APS-100) - 100-Amp AC to DC Power Supply with Built-In Cooling Fan, Power Supplies



Price:
Quantity:

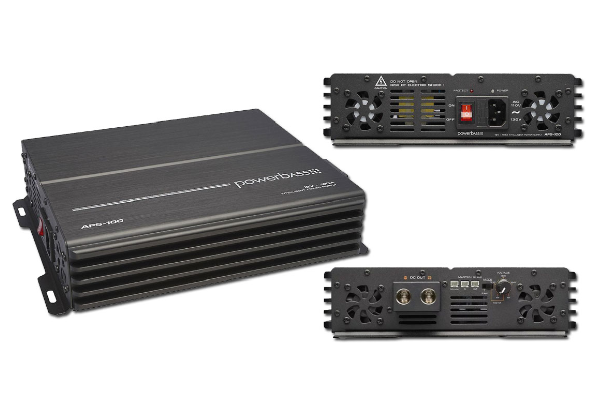

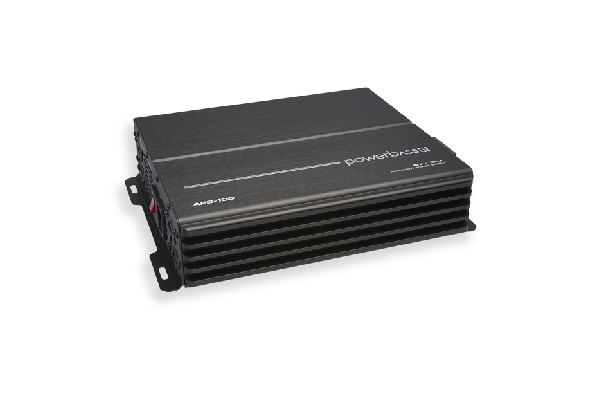

Powerbass (APS-100) - 100-Amp AC to DC Power Supply with Built-In Cooling Fan


Description:

With today's demanding demo, competition, and even marine audio set ups, supplying power while the vehicle is off or in doors becomes a challenge. PowerBass has answered the call with our new 100A APS series Power Supply allowing you to supply your electrical system with up to 100A of current by simply plugging into any 120V outlet.

Great for show room displays or demo cars and at indoor car show events, or even on your boat or RV with 12V power ran from your 120V generator running your 12V electronics is simple and easy. Monitor your voltage easily with the supplied LED Voltage meter and reset assured that your electrical system and batteries are safe with our intelligent 3 Way protection Circuit providing boost, charge or maintenance when needed.

The APS100 is compatible with most 120V outlets.


PowerBassUSA - Pounding Heads Since 2001.


Features and Specifications:

  • 100-Amp Power Supply with Built-In Cooling Fan
  • 100A Output Circuit
  • Link Up to 4 Units for Up to 400 Amps of Current

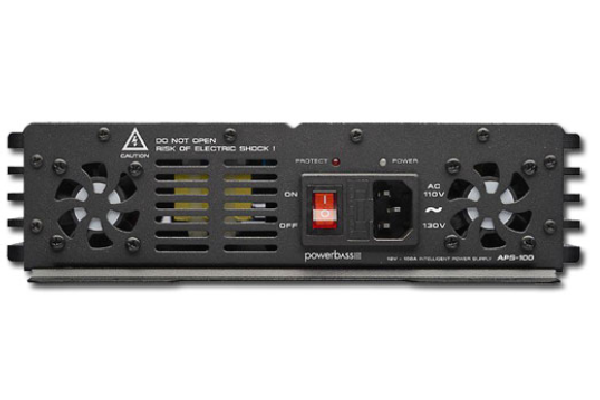

  • 120V Input Voltage
  • Built in Cooling Fans
  • LCD Voltage Meter Included
  • Intelligent 3-Way Protection Circuit
  • Uses AC Power to Power Equipment That Requires 10~16V DC Power
  • Converts Standard 110~130V AC Household Power to an Adjustable 10~16V DC Power
  • Supplies Up to 100 Amps of Continuous Power
  • Used in Several Applications Such as Retail Audio Displays, Show Cars, and Test Benches
  • Thermal Overload Shut Off Protection
  • Current Overload Shut Off Protection

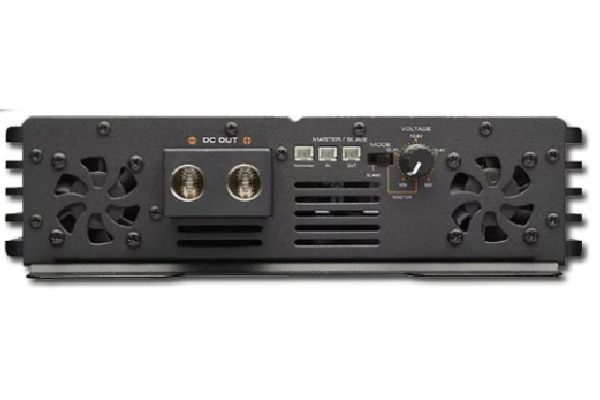

  • Combo Output Connectors Act as Both Binding Posts and Banana Plug Terminals
  • Pulse Charging to Inhibit Battery Sulfation
  • Remote Mount LCD Voltage Display
  • Technical Specifications:
    • Input Voltage: 120V AC+/-10%
    • Input Frequency: 60Hz
    • Adjustable Output: 10V-16V DC+/-0.5Volts
    • Output Current: 100 Amps DC Continuous (Maximum)
    • Line Regulation: Less Than +/-5%
    • Load Regulation: Less Than +/-5%
    • Efficiency: More Than 85%
    • Overload Protection: FUSE 20A / 250V (Input Voltage:120V)
    • Output Ripple: 150 mV RMS
    • Design: Switching Type
    • Protection Temperature: 75C
    • Cooling Fan: 4PCS (40 x 40 x 10mm)
    • Input Cable: SVT 14 AWG - 0 AWG
    • Power Switch: 15A / 250V AC
    • Dimensions (WHD): 262.4 x 67 x 240mm
    • Dimensions (WHD): 10.3 x 2.6 x 9.4in
  • UPC 0823871007516
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: Each



Powerbass (APS-100) - 100-Amp AC to DC Power Supply with Built-In Cooling Fan

Please Note:
  • This Selection Is For Powerbass (APS-100) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
