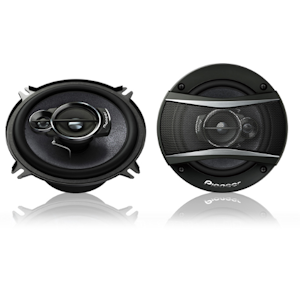

Pioneer Electronics (TS-A1376R) - 5-1/4" 3-Way Speaker, 300 Watts Max Power, AM/FM Speakers

Product ID:   PID3886
Status: Available To Order

Pioneer Electronics (TS-A1376R) - 5-1/4" 3-Way Speaker, 300 Watts Max Power, AM/FM Speakers







Pioneer Electronics (TS-A1376R) - 5-1/4" 3-Way Speaker, 300 Watts Max Power


A-Series - Open and smooth sound with high sensitivity for the ultimate listening experience.

5-1/4" 3-Way Speaker

  • 300 Watts Max Power (50 Watts Nominal)
  • New Multilayer Mica Matrix Cone Design for Optimum Sound Reproduction and Responsiveness
  • Lightweight Elastic Polymer Surround


The Next Gen

Pioneer's next generation of TS-A series speakers offer improved bass and dynamic range, higher power handling and a new cosmetic design. The TS-A speakers are designed to replace the vehicle's factory installed speakers and produce improved sound quality at exceptional value.
The TS-A line includes a new highly rigid Multilayer Mica Matrix Cone structure for a wider dispersion of sound with deeper bass, and a new tweeter designed to deliver an improved range of mid to high frequencies and produce optimized sound at higher volumes. The technology improvements offer better performance, enhanced sound quality and the ability to play a larger variety of popular music with heavy bass including hip hop, dubstep, and alternative rock.


Absolute fidelity to musical sources takes form from speakers that reproduce the ambience in which sounds originate. Stage size, musicians' movement, aural reflection and other distinctive details all bring these sounds to life. Pioneer A-Series speakers are available in 2-way component packages or coaxial designs in multiple sizes that fit most vehicles.


Various materials were carefully combined to develop a diaphragm of extra lightness and rigidity to reproduce sound clearly with outstanding responsiveness sensitivity and a suitable degree of internal loss. The new A-Series speakers feature a multilayer mica matrix cone where a surface containing mica properly maintains the cone's superior rigidity and internal loss while another layer makes excellent use of light, water-resistant material.


  • New fully covered mesh grille design for all 6 x 9 models
  • New spider design incorporates the same material used in the PRS series of high-end component speakers for stiffer suspension and more accurate response
  • Cooling basket with air vent for increased cooling to process improved power handling

Pioneer - Built by enthusiasts, for enthusiasts.

Features and Specifications:

  • 5-1/4" 3-Way Speaker, 300 Watts Max Power
  • Car Speakers
  • Size: 5-1/4"
  • Max. Music Power (Nominal): 300 W (50 W)
  • Tweeter Design: Cone
  • Tweeter Composition: Paper
  • Tweeter Magnet Composition: Ferrite
  • Woofer Surround: Elastic Polymer Surround
  • Woofer Composition: Multilayer Mica Matrix
  • Woofer Magnet Composition: Ferrite
  • Frequency Response: 40 Hz to 39 kHz
  • Sensitivity (1 W/1 m): 89 dB
  • Impedance: 4 Ohms
  • Crossover Frequency: -- 9700Hz
  • Mounting Depth: 2-1/8"
  • Cut-Out Dimensions: 4-3/4"
  • UPC 0884938311403
  • Color: Black
  • Sold: As a Pair

Pioneer Electronics (TS-A1376R) - 5-1/4" 3-Way Speaker

Please Note:
  • This Selection Is For Pioneer Electronics (TS-A1376R) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: As a Pair

Inventory Status: Available To Order
