~Wilson Electronics (311201) - Dual Band 75 Ohm Omni Directional Building Mount Antenna, 800-1900MHz, 12in Coax, F-Female Connector, Hardware Included, Cell Phone Base Antennas


Product ID:   PID3586
Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.

~Wilson Electronics (311201) - Dual Band 75 Ohm Omni Directional Building Mount Antenna, 800-1900MHz, 12in Coax, F-Female Connector, Hardware Included, Cell Phone Base Antennas

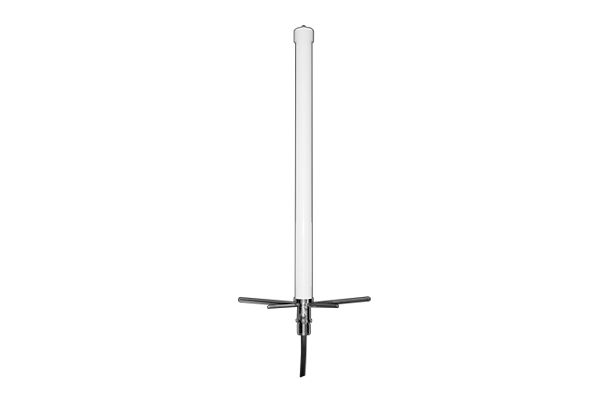

Wilson Electronics (311201) - Dual Band 75 Ohm Omni Directional Building Mount Antenna, 800-1900MHz, 12in Coax, F-Female Connector, Hardware Included


Description:

This building mount dual band antenna improves transmit and receive cellular signals from all directions, and should be mounted in the area with the strongest signal.

The included mounting hardware allows the antenna to be installed vertically on a pole and improves signal transmission between the amplifier and the nearest cellular tower.


Wilson Electronics - Improving your cellular signal.


Features and Specifications:

  • Building Mount Antenna
  • Omni Directional
  • 800/1900 MHz
  • High Gain
  • Built-In Ground Plane
  • 12" Coax Cable with F - Female Connector
  • Includes: U-Bolt for Pole Mount
  • For Fixed Installations
  • Weather Resistant
  • Easy To Install
  • UPC 0811815023357
  • Color: White
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each


Product Number 311201
Frequency 700/850/900/1900 MHz
700-800 MHz
Gain 		3.2 dBi
824-894 MHz
Gain 		5.12 dBi
880-960 MHz
Gain 		2.7 dBi
1710-1880 MHz
Gain 		0.6 dBi
1850-1990 MHz
Gain 		6.12 dBi
2110-2170 MHz
Gain 		-7.5 dBi
Impedance 75 ohms
Max Power 25 Watts
Radiation Omni
Polarization Vertical
Beamwidth Horizontal Plane 360 Degrees
Beamwidth Vertical Plane 60 Degrees
Connector F-Female
VSWR 1.8:1
Coax Cable 12 Inches
Ground Plane Built-In
Length 18 Inches


Wilson Electronics (311201) - Dual Band 75 Ohm Omni Directional Building Mount Antenna

Please Note:
  • This Selection Is Wilson Electronics (311201) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.
