Welcome >> Home >> Products >> Electronics >> JL Audio

JL Audio (CL-SSI) - CleanSweep Signal Summing Interface, JL Audio Mobile Audio


Product ID:   PID3546
Status: Available To Order


JL Audio (CL-SSI) - CleanSweep Signal Summing Interface, JL Audio Mobile Audio



Price:
Quantity:

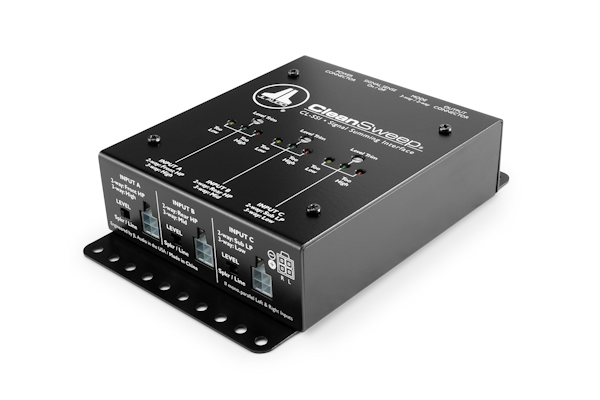

JL Audio (CL-SSI) - CleanSweep Signal Summing Interface


Description:

Signal Summing Interface, 4 ch. 2-way or 2 ch. 3-Way Inputs / 4 ch. outputs

Signal summing made simple!

The CleanSweep CL-SSI is the industry's first dedicated signal summing interface and is easily configured to merge 2-way or 3-way OEM signals prior to sending them into a CL441dsp for response correction. This makes it the perfect choice for integrating with OEM sound systems that do not present full-range audio signals.

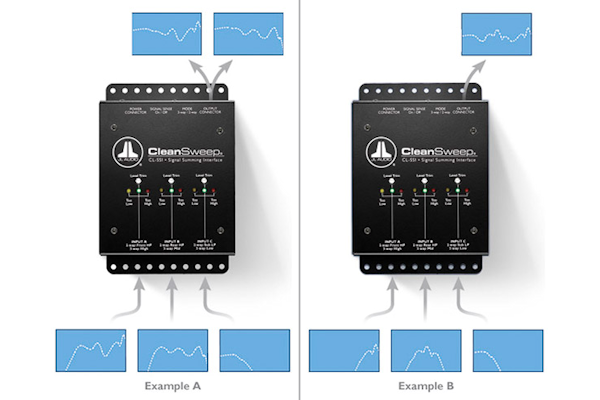

In 2-Way, 4-channel mode, the CL-SSI will accept front high-pass, rear high-pass and subwoofer low-pass signals from a factory audio system and sum the subwoofer signal to both the front and rear signals. The subwoofer input includes a noise filter to remove hiss commonly present in the signal of factory subwoofer amplifiers.

In 3-Way, 2-channel mode, the CL-SSI will accept high-pass, bandpass and subwoofer low-pass signals from a factory audio system and sum all three together in each audio channel, providing a 2-channel output. The subwoofer input includes a noise filter to remove hiss commonly present in the signal of factory subwoofer amplifiers.

Each input features a line-level or speaker-level switch and adjustment potentiometers with calibration lights to aid in level-matching. Use of the CleanSweep Calibration CD is required for level-matching.

The CL-SSI provides a direct plug-in output harness for connection to the input plug of the CL441dsp.

Technology:

OEM Integration

CleanSweep integration products are gateways between your factory-installed head unit and your high-performance aftermarket amplifiers and speaker systems. These ground breaking products employ state-of-the-art digital and analog processing so you can enjoy spectacular aftermarket sound without losing vehicle functions and without radical modifications to your dashboard. In other words, you no longer need to install an aftermarket head unit to enjoy outstanding audio in your car.


JL Audio - Ahead of the curve.


Features and Specifications:

  • Signal Summing Interface, 4 Ch. 2-Way or 2 Ch. 3-Way Inputs / 4 Ch. Outputs
  • Dedicated Signal Summing Interface
  • Merge 2-Way or 3-Way OEM Signals
  • Integrate with Premium OEM Sound Systems
  • UPC 0699440981125
  • Color: Black
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each

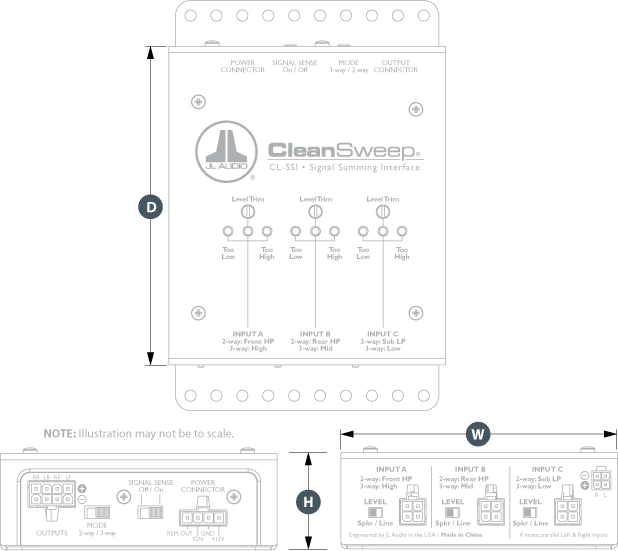

CL-SSI - Physical Specifications
CL-SSI - Physical Specifications
Width (W) 4.36 in / 111 mm
Height (H) 1.52 in / 39 mm
Depth (D) 5.02 in / 128 mm
Net Weight 1.4 lb / 0.64 kg



The CleanSweep Brochure


The CL-SSI Product Manual


JL Audio (CL-SSI) - CleanSweep Signal Summing Interface

Please Note:
  • This Selection Is JL Audio (CL-SSI) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Available To Order
