Galaxy (DX 959B) - Transceiver With StarLite Face Plate,
Frequency Counter, Large Meter, Talk Back, High SWR Alert
Circuit, AM/USB/LSB/PA, 40 Channel
Description:
The DX959B has many impressive features including a
StarLite face plate, frequency counter, a large
easy-to-read Galaxy meter, talkback, and SSB capability.
The Galaxy StarLite faceplate features back lighting of
the white faceplate lettering in blue or red color back
lighting. All faceplate lettering is white during

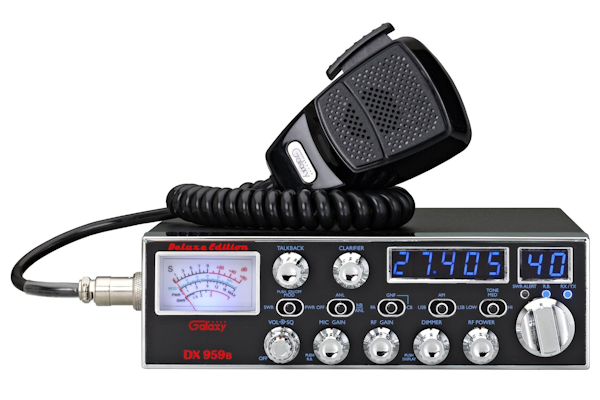

daylight. The picture shows how the color back lighting
turns the lettering blue or red. Frequency and Channel
LED digits are always blue - day or night. A variable
dimmer control with push switch can be used to turn off
the meter lamp, display digits and Star Lite back
lighting. (Please note, the StarLite lettering is always
at full brightness -cannot be dimmed- because it is not
very intense - even in the dark.)
Galaxy - Amateur and CB Radios
Features and Specifications:
- Mobile CB Radio
- AM/USB/LSB/PA, but no FM
- 40 Channels
- AM 4 Watt; USB/LSB 12 Watt PEP
- 7 7/8" (W) x 9 1/4" (D) x 2 1/8" (H) -
5.5 lbs.
- Large, easy-to-read meter with 4 scales
- Signal Strength
- RF Output Power
- SWR Level
- AM Modulation Level
- Color of Meter Lamp: Blue
- StarLite Faceplate (all lettering backlit)
- Color of Channel Digits: Blue
- Frequency Counter with On/Off Switch
- Color of Frequency Digits: Blue
- Color RX/TX Indicator: Blue/Red
- Chassis Size: Full
- Microphone Jack Location: Side
- Talkback with On/Off switch: Variable
- Variable Power Output
- Automatic SWR Circuit
- High SWR Alert Circuit
- Variable Dimmer Control
- Clarifier Control
- Roger Beep
- NB and ANL Noise Circuits
- Receive (RF) Gain Control
- Mic Gain Control
- Jacks for PA and External Speaker
- Complete Service Manual Online
- Specifications:
- General:
- Model: DX 959B
- Channels: 40
- Frequency Range: 26.965 - 27.405 MHz
- Emission: AM/USB/LSB
- Frequency Control: Phase-Lock-Loop (PLL)
Synthesizer
- Frequency Stability: 0.001%
- Temperature Range: -30C to +50C
- Antenna Impedance: 50 Ohms
- Speaker Impedance: 8 Ohms
- Antenna Connectors: Standard SO-239 type
- Input Voltage: 13.8V DC
- Size: 7 7/8" (W) x 9 1/4" (D) x 2
1/8" (H)
- Weight: 5.5 lbs.
- Meter: Illuminated; RF Output Power, Antenna
SWR, Receive Signal Strength, Modulation %
- Transmitter:
- RF Power Output: AM 4 Watt; USB/LSB 12 Watt
PEP
- Spurious Emission: Better than -55 dB
- Unwanted Sideband: Better than -55 dB
- Frequency Tolerance: 0.005%
- Frequency Response: 300 to 2500 Hz
- Microphone: Dynamic
- Receiver:
- Sensitivity for 10 dB (S+N)/N: AM: < 0.5
microV; USB/LSB: < 0.25 microV
- Squelch Sensitivity: < 0.5 microV
- Image Rejection: -65 dB
- Clarifier Range: +/- 1.0 KHz
- AGC Figure of Merit: 100 mV for 10 dB Change
in Audio Output
- Audio Power Output: 2W @ 10% Distortion
- Audio Response: 300 to 2500 Hz
- Contents:
- CB Mobile Galaxy DX 959B Radio
- 4 Pin Dynamic Microphone
- DC Power Cord
- Mounting Bracket with Hardware
- Microphone Hanger with Hardware
- User's Manual
- UPC 0656955509596
- Color: Black
- Manufacturer's Limited Warranty - 2 Year(s)
- Sold: Each
Galaxy (DX 959B) - Transceiver With StarLite Face Plate
Please Note:
- This Selection Is Galaxy (DX 959B) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
