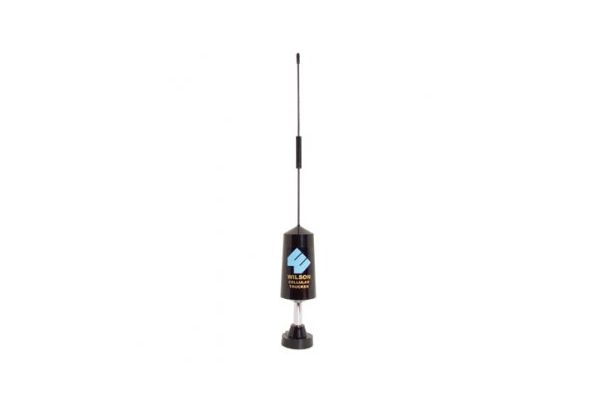

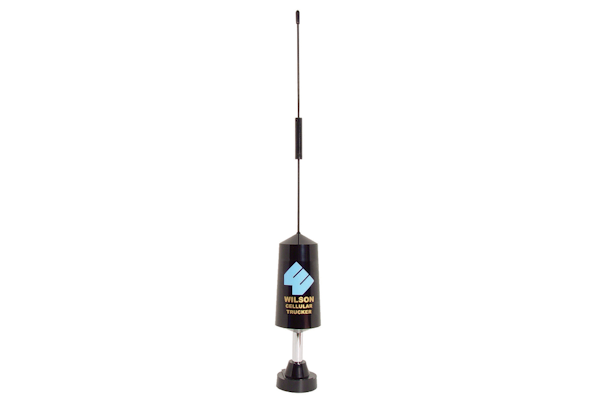

Wilson Electronics (301112) - Dual Band NMO Trucker Mount
Antenna, 800-1900MHz
Description:
Wilson Trucker Antennas offer the highest allowable gain,
dual-band (800/1900 MHz) versatility, and omnidirectional
design.
This Trucker Antenna comes with a Non-Magnetic Option
(NMO) mounting.
Non-Magnetic Option (NMO) Mount antennas mount through
the metal roof or trunk of a vehicle. (Drilling a hole is
required.)
This type of antenna is frequently used on police cars,
fire trucks, ambulances, public utility service trucks
and other dedicated vehicles.
Wilson Electronics - Improving your cellular
signal.
Features and Specifications:
- Same styling as our popular trucker antenna
- Metal Ground Plane Required (Minimum 8"
Diameter)
- Mount and Coax Sold Separately
- Multiple NMO mounting Options Are Available::
-
- Trunk Mount (14' RG58 Coax) Part# 901101
- 3/4" Hole - Roof Mount (14' RG58 Coax)
Part# 901102
- 3/8" Hole - Roof Mount (14' RG58 Coax)
Part# 901103
- UPC 0813986001615
- Color: Black
- Manufacturer's Limited Warranty - 2 Year(s)
- Sold: Each
Product Number
|
301112
|
700-800 MHz
Gain
|
2.4 dBi
|
824-894 MHz
Gain
|
4.9 dBi
|
880-960 MHz
Gain
|
-0.9 dBi
|
1710-1880 MHz
Gain
|
-1.2 dBi
|
1850-1990 MHz
Gain
|
5.9 dBi
|
2110-2170 MHz
Gain
|
1.7 dBi
|
Impedance
|
50 ohms
|
Radiation
|
Omni
|
Polarization
|
Vertical
|
Wavelength
|
1.0 Wavelength 806-894 MHz / 2.1 Wavelength
1850-1990 MHz
|
Ground Plane
|
Metal ground plane required
|
Connector
|
FME Female
|
Material
|
Whip - Stainless Steel
|
Coax Cable
|
Sold Separately
|
Height
|
13.25 inches / 33.7 cm
|
Mount
|
NMO Mount Types(Sold Separately)
|
Wilson Electronics (301112) - Dual Band NMO Trucker
Mount Antenna
Please Note:
- This Selection Is Wilson Electronics (301112) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
