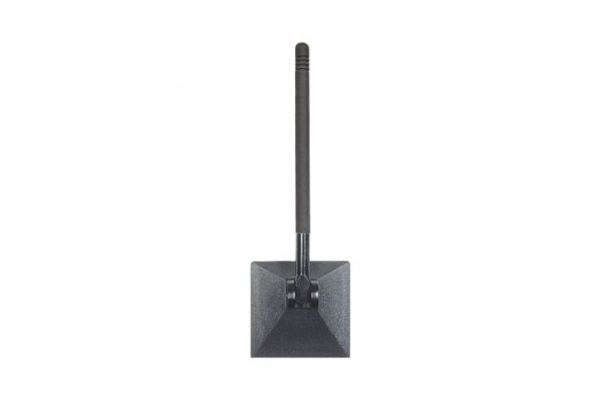

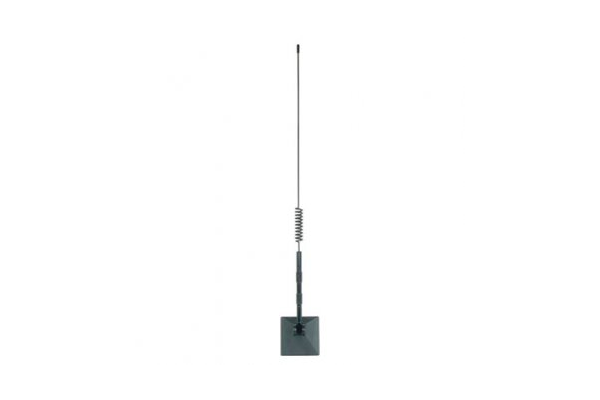

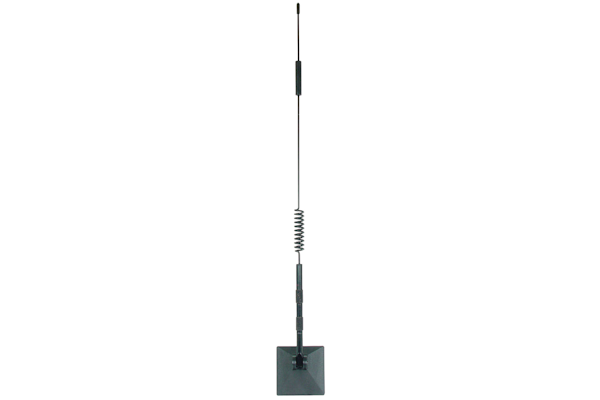

Wilson Electronics (301102) - Dual Band Glass Mount
Antenna, 800-1900MHz, 14ft Coax
Description:
Glass mount antennas attach to either side of a piece of
the vehicle's glass with a 3M VHB adhesive.
This antenna works well on automobiles, vans and SUVs but
cannot be easily moved from one vehicle to another.
Wilson Electronics - Improving your cellular
signal.
Features and Specifications:
- Includes All Mounting Hardware
- Permanent Installation
- Includes 3M Adhesive For Mounting to Glass
- Built-In Ground Plane
- UPC 0813986000021
- Color: Black
- Manufacturer's Limited Warranty - 2 Year(s)
- Sold: Each
NOTE: Glass Mount Antennas are not recommended for
use with wireless amplifiers. The inside and outside
antennas must be shielded from each other to prevent
oscillation.
Product Number
|
301102
|
301114
|
304201
|
700-800 MHz
Gain
|
1.8 dBi
|
|
|
824-894 MHz
Gain
|
3.5 dBi
|
1.4 dBi
|
3.5 dBi
|
880-960 MHz
Gain
|
2.8 dBi
|
|
3.5 dBi
|
1710-1880 MHz
Gain
|
-1.5 dBi
|
|
|
1850-1990 MHz
Gain
|
4.8 dBi
|
2.4 dBi
|
4.5 dBi
|
2110-2170 MHz
Gain
|
1.0 dBi
|
|
|
Impedance
|
50 ohms
|
Radiation
|
Omni
|
Polarization
|
Vertical
|
Ground Plane
|
Built-In Ground Plane
|
Connector
|
FME Female
|
Material
|
Whip - Stainless Steel
|
Whip - Plastic Coated Steel Wire
|
Whip - Stainless Steel
|
Coax Cable
|
RG58 - 14 feet / 4.27 meters
|
Height
|
15 inches / 38.10 cm
|
5.375 inches / 13.65 cm
|
15 Inches / 38.10 cm
|
Mount
|
Glass Mounting with 3M Adhesive
|
