Top Gun Technologies (CP-1) - Compressor Kit, Utilizes and Enhances Radio's Audio Preamplifier, Radio Kits


Product ID:   PID0656
Status: Available To Order


Top Gun Technologies (CP-1) - Compressor Kit, Utilizes and Enhances Radio's Audio Preamplifier, Radio Kits



Price:
Quantity:









Top Gun Technologies (CP-1) - Compressor Kit, Utilizes and Enhances Radio's Audio Preamplifier


Description:

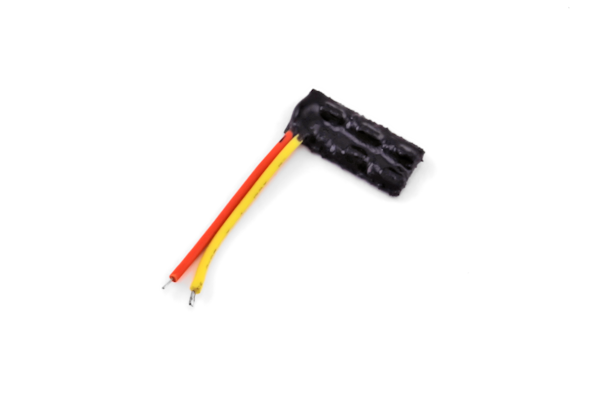

The Top Gun Technologies CP-1 is the first compressor kit that utilizes and enhances the radio audio preamplifier eliminating square waving on first word and audio peaks while increasing peak audio output.

Now the same Top Gun Modulator MD-1 and Compressor CP-1 circuits used in the new Magnum radios are available for most other 10-meter and many CB radios. Full tone, clear, high swing audio (AM) modulation is achieved with the addition of these two fully assembled micro circuit boards. While the Top Gun Modulator works only in AM, the Top Gun Compressor works in AM, FM, and SSB keeping the modulation at peak performance in all these modes.

Installation is accomplished with the removal of up to 3 resistors and the connection of 7 to 9 pre stripped and tinned wires. Instructions are included for current and past production compatible radios. Additional Web support is available at Top Gun Technologies.

These circuits work with or without the modulation limiter. For the purest, the limiter can be adjusted for excellent forward swing without any square wave audio. Without the limiter the compressor maintains high-level audio without severe squaring of the audio signal. It is the squaring of the audio peaks that create the distortion and splatter of adjacent frequencies.

On 30-50 Watt radios, the dead-key or carrier can be set to 1 Watt or less with a modulation swing to the full output potential of the radio transmitter. The modulator can be switched to normal swing with the installation of an optional SPST or SPDT switch. Even in the normal swing mode, the Top Gun Modulator is still working to keep the audio clean at all power levels.

Top Gun Technologies - Providing the Best Products for the CB and Amateur Radio Enthusiast.


Features and Specifications:

  • Compressor Kit
  • Utilizes and Enhances Radio's Audio Preamplifier
  • Eliminating Square Waving on First Word and Audio Peaks
  • Increases Peak Audio Output
  • Works in AM, FM, and SSB
  • Fits Many 10 & 11 Meter Radios

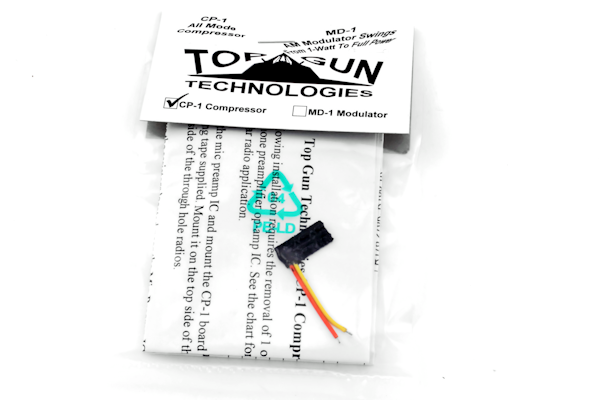

  • Easy Wiring Instructions - Instructions Provided
  • Dimensions: .25" x .75"
  • Sold: Each


Top Gun Technologies (CP-1) - Compressor Kit

Please Note:
  • This Selection Is For Top Gun Technologies (CP-1) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Available To Order
