Solarcon (IMAX-2000) - Omni-Directional Fiberglass Base Station Antenna, 5000 Watt, 24ft, Non-Standard Shipping Only, Each, Base CB Antennas


Product ID:   PID0634
Status: Out of Stock - Can Not Order At This Time

To Receive a Quote: Please click on the blue "Request Quote" button below and submit the required information.

Due to the length of this antenna, we MUST calculate shipping manually. Please select the blue "Request Quote" button below. All information requested is required by the carriers to calculate an accurate shipping cost. We will respond to your Request for Quote as quickly as possible.


Solarcon (IMAX-2000) - Omni-Directional Fiberglass Base Station Antenna, 5000 Watt, 24ft, Non-Standard Shipping Only, Each, Base CB Antennas



Price:
Quantity:




Request a Quote



Solarcon (IMAX-2000) - Omni-Directional Fiberglass Base Station Antenna, 5000 Watt, 24ft, Non-Standard Shipping Only, Each


Description:

PLEASE NOTE: Due to the length of this antenna, we MUST calculate shipping manually. Please select the blue "Request Quote" button above. All information requested is required by the carriers to calculate an accurate shipping cost. We will respond to your Request for Quote as quickly as possible.

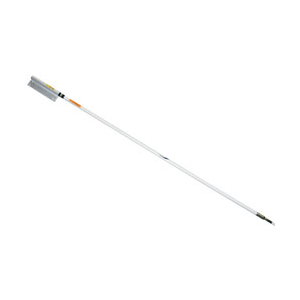

This Solarcon CB/Ham Base Station Antenna comes in three easy-to assemble sections and covers far above and below traditional CB channels. You can also use your antenna for international, commercial and 10-meter amateur radio operation with up to 2000 watts. Twin ring tuning makes it easy to tune the input to the antenna for the optimum standing Wave ratio (SWR) over a range of frequencies. The antenna is designed as a 5/8 wave I-MAX end fed variable mutual transductance tuned antenna.

Using the supplied hardware, you can easily mount your antenna to a mast (not supplied), a building's vent pipe or other stationary object.


Solarcon - Ham - CB - Commercial


Features and Specifications:

  • Omni-Directional Base Station Antenna
  • Highest Gain Fiberglass Antenna on the Market
  • Works with IMAXGPK Ground Plane
  • Handles 5000 Watts
  • Full 5/8 Wave Antenna
  • 24' Antenna in Three 8' Easy to Assemble Sections
  • 5.1dBI Gain, Tested at 1 to 2 dBI Higher Than the Best Competing Antennas
  • Heavy Duty Mounting Plate withstands Greater Wind Loads
  • Hardware Included: Lock Washers, U-Bolts, Hex Nuts
  • Tunable
  • Broad Bandwidth that Covers Far Above and Below the Traditional CB Channels
  • DC Grounded
  • Insulated up to 14,500 Volts
  • Can be Used for Export, Commercial and 10 Meter Ham
  • Weight: 6 Lbs.
  • Non-Standard Shipping Only
  • UPC 0792161003265
  • Color: White
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: Each


Solarcon (IMAX-2000) - Omni-Directional Fiberglass Base Station Antenna

Please Note:
  • This Selection Is Solarcon (IMAX-2000) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each
