Ranger (RCI-LH-SUP-N6) - LongHorn Superior N6,
AM/FM/USB/LSB/CW/PA, Black
Description:
The Ranger LongHorn Superior N6 (RCI-LH-SUP-N6) 400+
watts amateur mobile transceiver offers exceptional value
for Novice and Technician Class amateurs upgrading to
higher class license.
This top-level unit is designed for easy, reliable and
safe mobile operation. The RCI-LH-SUP-N6 transceiver
provides excellent receiver sensitivity and multi-mode
operations.
The easy-to-use frequency selection system covers the 10-
meter amateur band in 10-band segments. Actual operating
frequency is accurately displayed in the 5-digit LED
display that's easy to read even in bright sunlight.
A channel indicator speeds return to a popular or
previously used frequency without interfering with the
operator's attention to the road.
Selectable Automatic Noise Limiter (ANL) and Noise
Blanker assures noise reduction during mobile operation.

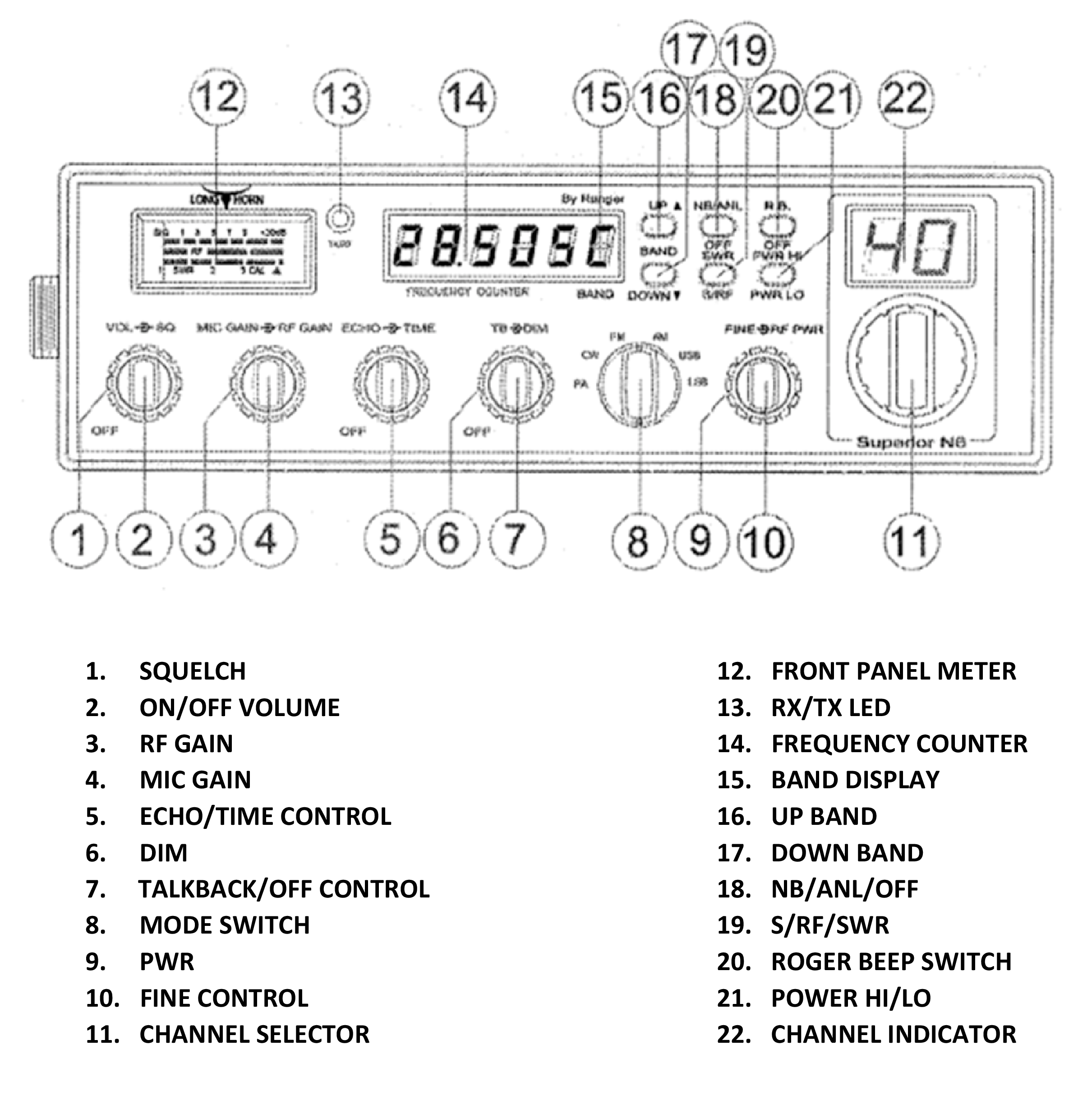

Front panel RF power output control and RF Gain controls
enable the operator to set transmitter power and receiver
sensitivity to match operating conditions.
For use of the RCI-LH-SUP-N6
in a base station application, Ranger recommends at
minimum a 60 Amp power supply.
Ranger Communications, Inc. - Home of top quality
communications equipment.
Features and Specifications:
- 10 Meter Mobile Amateur Radio
- AM/FM/USB/LSB/CW/PA
- 400+ watts
- Adjustable Dual Control Echo & Talkback
- Variable Dim Control
- Roger Beep
- Built-in Frequency Counter
- Multifunction Panel Meter
- High Sensitivity Receiver Design
- Hi/Low RF Power Output Switch (300/80 Watt) - Turns
Amplifier On/Off
- Variable Power Output Control/Adjusts the DeadKey
Power
- White LED Meter, Frequency and Channel Display
- Rear Jacks for CW Key, External Speaker and PA Horn

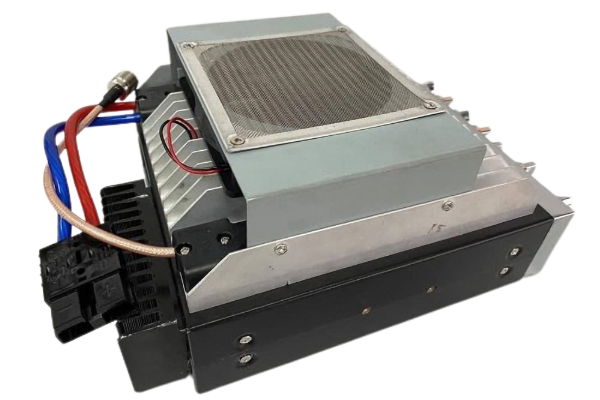

- Heavy Duty Heat Sink/Large Cooling Fan
- Specifications:
- General:
- Model: RCI-LH-SUP-N6 - LongHorn Superior N6
- Frequency Range: 28.315 - 29.660 MHz
- Emission: AM/FM/USB/LSB/CW/PA
- Frequency Control: Phase-Lock-Loop (PLL)
Synthesizer
- Frequency Tolerance: 0.005%
- Frequency Stability: 0.001%
- Temperature Range: -20C to +50C
- Antenna Impedance: 50 Ohm
-
Input Voltage: 13.8V
DC Normal @ 60 AMP
- Size: 7 7/8" (W) x 11 1/8" (D) x 4
3/4" (H)
- Weight: 9 Lbs. 0.62 Oz.
- Meter: RF Output, RX Receive Signal Strength,
SWR
- Transmitter:
- RF Power Output: AM/CW: 20W/150W RMS; AM/SSB
60W/300W Peak Power; FM: 50W/200W
- Antenna Connectors: Standard SO-239 type, 50
Ohms
- Modulation: A3E, J3E
- Spurious Emission: -50 dB
- Carrier Suppression: -50 dB
- Microphone: Plug-in (4-Pin) dynamic; with
push-to-talk switch and coiled cord
- Receiver:
- AM Sensitivity: 0.5 uV for 10dB Sinad
- SSB Sensitivity: 0.25 uV for 10dB Sinad
- Image Rejection: -50 dB
- Audio Power Output: 2.5W
- Contents:
- 10 Meter RCI-LH-SUP-N6 Radio - LongHorn Superior
N6
- 4 Pin Dynamic Microphone - Ranger SRA-198 Noise
Cancelling Mic
- DC Power Cord
- Mounting Bracket with Hardware
- Installation Hardware
- User's Manual
- UPC
- Color: Black with Silver/Grey Heatsink and Fan
- Manufacturer's Limited Warranty - 1 Year(s)
- Sold: Each
Ranger (RCI-LH-SUP-N6) - LongHorn Superior N6
Please Note:
- This Selection Is Ranger (RCI-LH-SUP-N6) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
