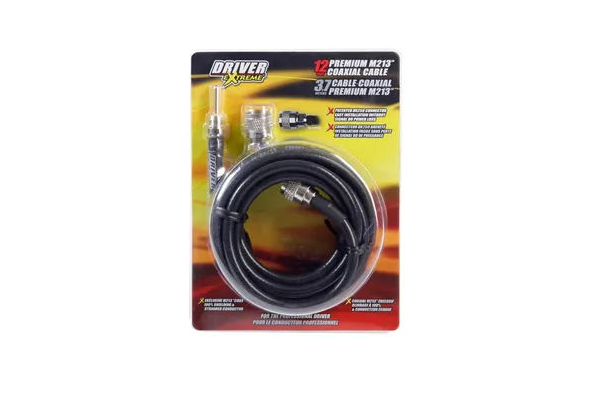

Driver Extreme (DRX-1518) - DRX-1518 Premium Mini Coaxial
Cable Assembly with Patented DX259 Connector, M213
Quantum Flex Cable, 18', Black
Description:
Good arteries are important to your heart like good coax
cable is important to your radio.

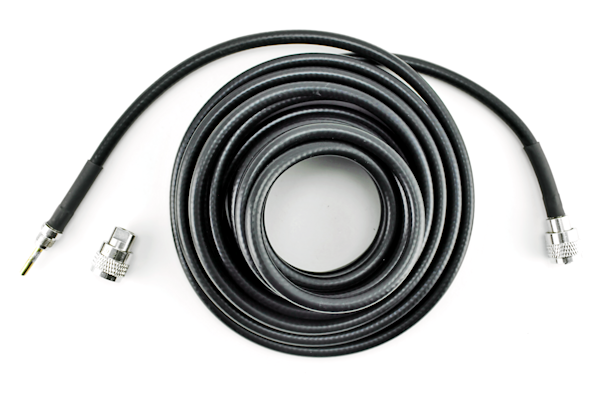

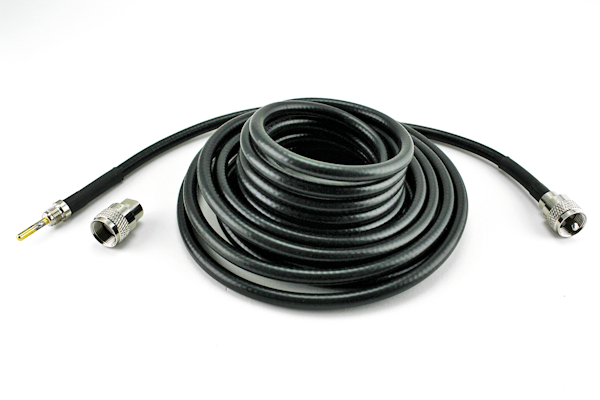

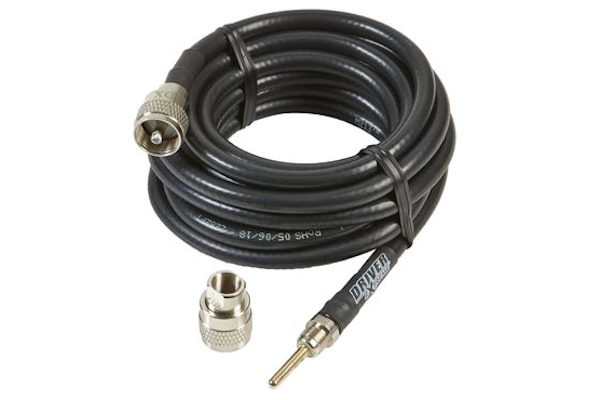

This 18 foot coax is professionally assembled by Driver
Extreme utilizing exacting techniques, high quality
connectors, and M213(TM) Quantum-Flex double shielded
coaxial cable.
M213(TM) Quantum-Flex is a type of coaxial cable often
used for amateur radio. The cable has a characteristic
impedance of 50 Ohm. M213(TM) Quantum-Flex is a
"thinner" more flexible version with the
electrical characteristics of RG-213U.
Most two-way radio communication systems, such as marine,
CB radio, amateur, police, fire, WLAN antennas etc., are
designed to work with a 50 Ohm cable.
M213(TM) Quantum-Flex cable is to be used in a
"single antenna" installation only.
About M213(TM) Quantum Flex Cable
In keeping with their extreme theme, Driver Extreme chose
to offer a cable like no other! Similar to Mini 8 being a
miniaturized version of RG8U, M213(TM) delivers RG213
like performance in a mobile installation size cable.
They took the standard of RG213, reduced the diameter,
doubled the shielding, and thru the application of modern
dielectric materials, improved the overall
flexibility.
In comparison to Mini 8, the M213(TM) operating
parameters remain more consistent regardless of bend
radius. The use of a polyethylene dielectric keeps heavy
gauge conductor more centered resulting in consistent
impedance with improved power handling. Compared to foam
dielectric based cables, they have greatly minimized the
effects of impedance bumps caused by bending, pinching,
or crushing resulting in a more consistent system
performance. Driver Extreme M213(TM) coax sets the
standard for maximizing your system performance.
The cable that breaks all the
rules:
- M213(TM) uses an ultra-fine high strand count pure
copper center conductor. No copper plated aluminum or
steel conductors here. Pure copper assures minimal series
resistance, which is what it takes to maximize power
transfer without loss. The fine strand count means more
surface area and greater flexibility.
- Driver Extreme used modern poly dielectrics and state
of the art manufacturing processes to offer improved
flexibility without any reduction in power handling.
M213(TM) handles the power and holds it's impedance
even when bent unlike similar sized foam dielectric
cables.
- M213(TM)'s double shielding eliminates unwanted
signal leakage and by not bonding the foil to the poly
dielectric, they've reduced thermal losses, improved
flexibility and made cable termination even simpler.
- A high strand count tinned copper braided shield
(96%) covers a free-floating aluminum foil shield (100%)
which makes M213(TM) ultra-low loss.
- Driver Extreme took the standard of RG213, reduced
the diameter, doubled the shielding, and through the
application of modern dielectric material, improved the
overall flexibility. Driver Extreme M213(TM) coax sets
the standard for maximizing your system performance.
- For consistency, reliability and flexibility look no
further than M213(TM) Quantum-Flex double shielded low
loss coax.
Patented Connector

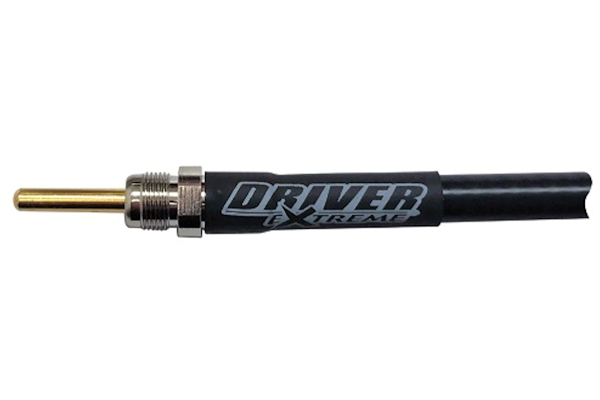

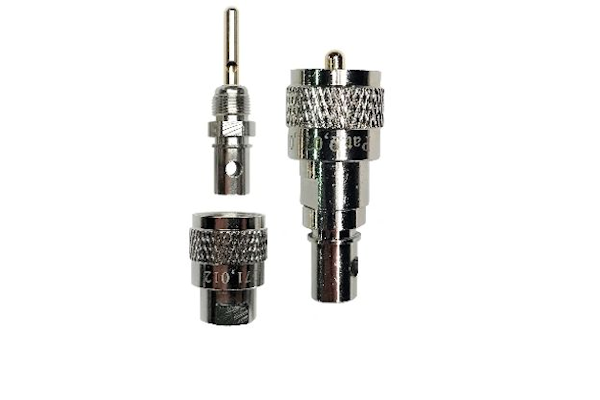

The DX259 patented* 2-piece male UHF connector allows for
installation through a 12mm hole. Direct soldering to the
center conductor eliminates signal loss and increases
power handling ability unlike other adaptor style UHF
connectors. *(Pat. 9,071,012)
- 2-piece male UHF Connector
- Patented DX259 connector allows for installation
through a 12mm hole
- Direct soldering to the center conductor eliminates
signal loss
- This connector increases power handling ability
The ability of any conductor starts from it's core.
Driver Extreme builds the DX259 connector with a heavy
gauge solid copper core. It's patented technology.
Driver Extreme - For The Professional
Driver
Features and Specifications:
- Premium Mini Coaxial Cable Assembly
- Length: 18 Feet
- M213(TM) Quantum-Flex Double Shielded Low Loss Coax:
- High Performance
- Reduced Diameter
- Double Shielding - Ultra Low Loss
- Improved Flexibility
- Consistent Performance Regardless of Bend Radius
- Consistent Impedance with Improved Power Handling
- Greatly Minimized Effects of Impedance Bumps From
Bending, Pinching, or Crushing
- 50 Ohm
- For "Single Antenna" Installations Only
- 1 DX259 Patented 2-Piece Male UHF Connector:
- Allows for Installation Through a 12mm Hole
- Direct Soldering to the Center Conductor
Eliminates Signal Loss
- Increases Power Handling Ability
- Heavy Gauge Solid Copper Core
- 1 DX-PL259 Connector
- UPC 734139815180
- Color: Black
- Made In USA
- Manufacturer's Limited Warranty - 1 Year(s)
- Sold: Each
M213(TM) Quantum-Flex Double Shielded Low Loss Coaxial
Cable Specifications:
Attenuation
Frequency
MHz
|
Maximum
dB/100 ft.
|
5
|
0.55
|
14
|
0.88
|
27
|
1.21
|
52
|
1.66
|
146
|
2.80
|
221
|
3.50
|
435
|
5.11
|
915
|
7.69
|
Specifications
Center Conductor:
|
15 Gauge Stranded Copper
|
Dielectric:
|
Solid Polyethylene 5.1mm
|
Foil Tape:
|
Aluminum 100%
|
Braiding:
|
Tinned Copper 96% Coverage
|
Jacket:
|
Black PVC - 7.6mm OD
|
Driver Extreme (DRX-1518) - DRX-1518 Premium Mini
Coaxial Cable Assembly with Patented DX259 Connector
Please Note:
- This Selection Is Driver Extreme (DRX-1518) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
