Ranger (RCI-69VHP) - AM/FM/USB/LSB/CW, Black with Chrome Face, 10 Meter Amateur Mobile Radios


Product ID:   PID4177
Status: Available To Order

Ranger (RCI-69VHP) - AM/FM/USB/LSB/CW, Black with Chrome Face, 10 Meter Amateur Mobile Radios



Price:
Quantity:





"Optimum Performance" Upgrade Option:





Ranger (RCI-69VHP) - AM/FM/USB/LSB/CW, Black with Chrome Face


Description:

The Ranger RCI-69VHP features a clean 60+ watts PEP on all modes -- AM, FM, USB, and LSB. The RCI-69VHP has all the features a radio operator wants in a top-of-the-line sideband radio including a true frequency counter--not just a frequency display, like the competition. Experience Ranger's legendary quality and 30 years of sideband engineering expertise with the RCI-69VHP.

Highlights:

  • New Final Amplifier Design

  • Uses Ranger RT1 MOSFET Transistors

  • 80+ Watts PEP Output Power

  • Variable RF Power Control

  • 6 Digit Frequency Counter

  • New Smoke Chrome Front Panel

  • Heavy Duty, High Power Heatsink

  • S/RF/SWR Front Panel Meter

  • Real Channel Selector Control

  • SRA-198 Chrome Noise Cancelling Mic

  • Preset Echo with On/Off Control

  • Variable Talk Back Control

  • Built-In Echo with On/Off Switch

  • Fine + Course Variable SSB Clarifier

  • Cool Blue LED Channel and Freq Display

  • 4 Pin Side Mic Jack

For use of the Ranger RCI-69VHP in a base station application, Ranger recommends at minimum a 20 Amp power supply.

Ranger Communications, Inc. - Home of top quality communications equipment.


Features and Specifications:

  • 10 Meter Mobile Amateur Radio
  • AM/FM/USB/LSB/CW
  • 80+ watts
  • Preset Echo (On/OFF) & Variable Talkback Volume Control
  • Built-in Frequency Counter
  • Multifunction Panel Meter
  • Smoke Chrome Face
  • High Sensitivity Receiver Design
  • Variable RF Power Output
  • Cool Blue LED Channel Display, Freq Display and Meter Light
  • Heavy Duty, High Power Heat Sink
  • Hi/Low Tone Control - Changes Tone Quality for RX Only
  • Roger Beep
  • +10KHz Switch
  • Self Calibrating SWR Circuit
  • Specifications:
    • General:
      • Model: RCI-69VHP
      • Frequency Range: 28.7650 - 29.2050 MHz
      • Modes: AM/FM/USB/LSB/CW
      • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
      • Frequency Stability: 0.001%
      • Temperature Range: -30C to +50C
      • Antenna Impedance: 50 Ohm
      • Input Voltage: 13.8V DC
      • Size: 7 7/8" (W) x 9 1/4" (D) x 2 3/8" (H)
      • Weight: 5 Lbs. 0 Oz.
      • Meter: RF Output, RX Receive Signal Strength, SWR
      • Side Mic Jack
      • Includes a SRA-198 Noise Cancelling Mic
    • Transmitter:
      • RF Power Output: AM/CW: 20 watts RMS; FM: 70W; AM/SSB: 60 watts PEP
      • Antenna Connectors: Standard SO-239 type, 50 Ohms
      • Spurious Emission: -50 dB
      • Audio Distortion: 10%
      • Frequency Response: 300 to 2500 Hz
      • Microphone: Plug-in (4-Pin) dynamic; with push-to-talk switch and coiled cord
    • Receiver:
      • CW/AM Sensitivity: 0.5 uV for 10dB S+N/N
      • FM Sensitivity: 0.25 uV for 12dB S+N/N
      • SSB Sensitivity: 0.15 uV for 10dB S+N/N
      • Squelch Sensitivity: 0.5 uV
      • Selectivity: -55 dB
      • Image Rejection: -50 dB
      • Hum and Noise: 40 dB
      • Audio Power Output: 2.5W @ 10% THD
  • Contents:
    • 10 Meter RCI-69VHP Radio
    • 4 Pin Dynamic Microphone (SRA-198 Noise Cancelling Mic)
    • DC Power Cord
    • Mounting Bracket with Hardware
    • User's Manual
  • Color: Black with Smoke Chrome Face
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: Each

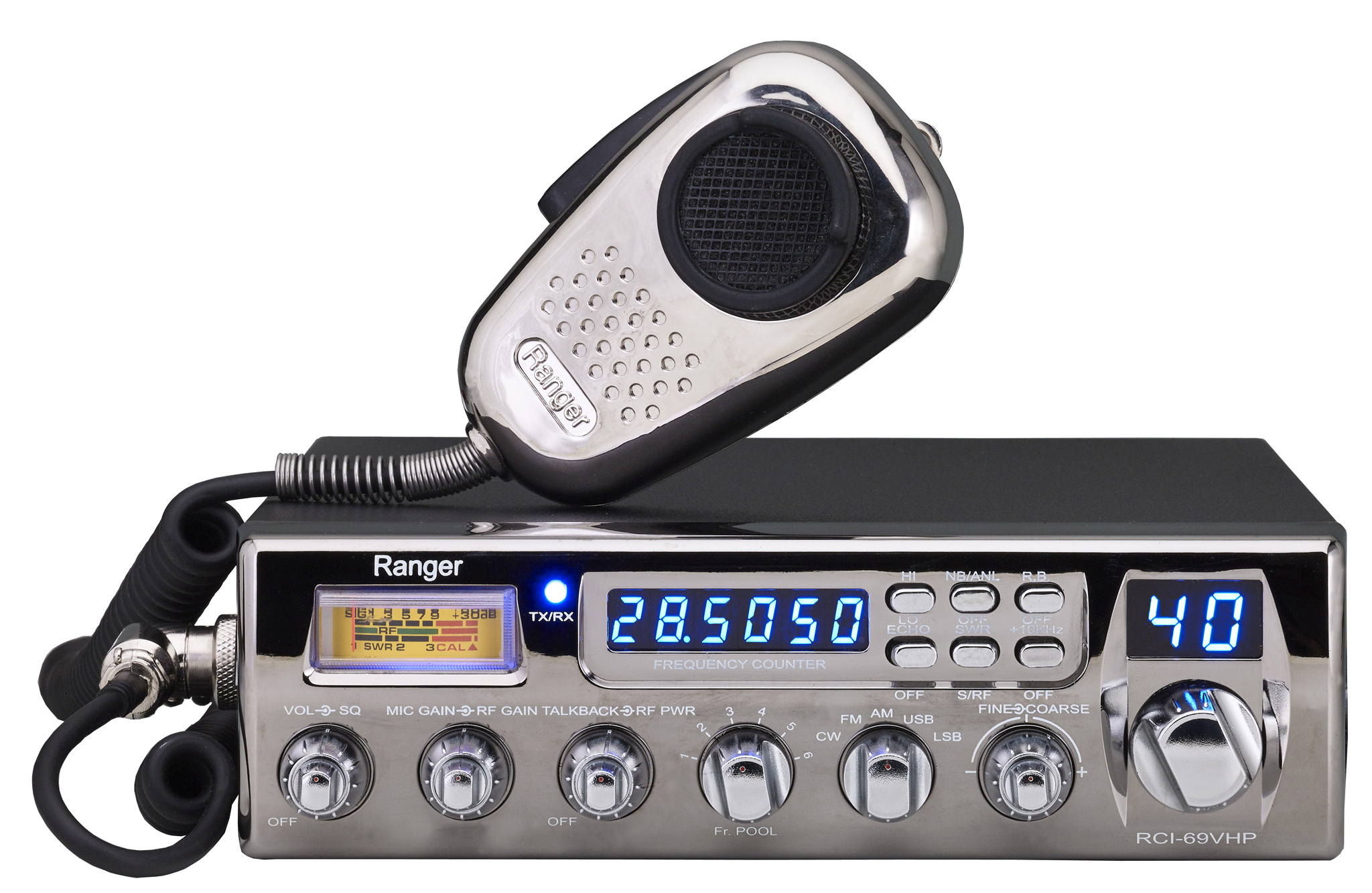

Ranger RCI-69VHP - 10 Meter Amateur Radio
Ranger RCI-69VHP - 10 Meter Amateur Radio

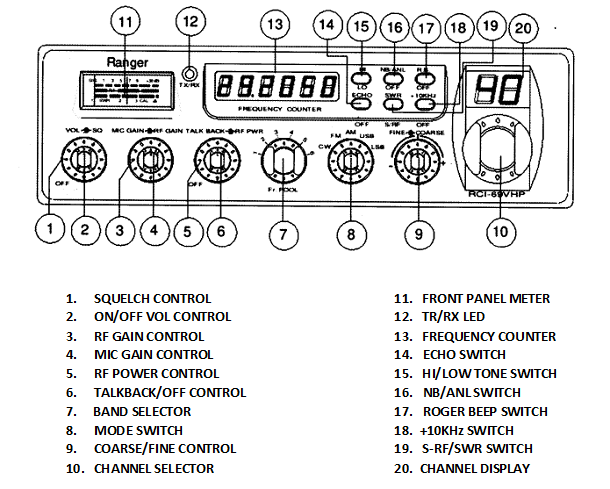

Ranger RCI-69VHP - Operation's Guide
Ranger RCI-69VHP - Operation's Guide


The Ranger RCI-69VHP Manual

The Ranger RCI-69VHP Product Brief & Spec Sheet

The Ranger Amateur Radios Comparison Chart


Ranger (RCI-69VHP) - AM/FM/USB/LSB/CW

Please Note:
  • This Selection Is Ranger (RCI-69VHP) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each
