Mirage (MX-36HP3) - AM/PA, Black, 10 Meter Amateur Mobile Radios


Product ID:   PID4174
Status: Available To Order



Mirage (MX-36HP3) - AM/PA, Black, 10 Meter Amateur Mobile Radios



Price:
Quantity:





"Optimum Performance" Upgrade Option:





Mirage (MX-36HP3) - AM/PA, Black


Description:

A newer version of the very popular Mirage MX-36HP Radio now featuring both a:
-Classic Chrome Design and
-On/Off/Vol and SQL Controls in the traditional first position

The Mirage MX-36HP3 will fit those tight overhead compartments in big trucks designed for a Cobra 29.

The MX-36HP3 has 50+ watt power output, variable RF power control, original Mirage receive circuit, real channel selector control, cool blue LED channel display/meter light, front mic jack, instant channel 19, 10KHz Switch, 3 position dimmer, echo with dual controls, adjustable talkback, and includes a SRA-198 noise cancelling mic.

Mirage - Amateur Radios


Features and Specifications:

  • 10 Meter Mobile Amateur Radio
  • The Size of a Cobra 29
  • AM/PA
  • 50+ Watts
  • Front Panel 4 Pin Mic Jack
  • On/Off/Vol and SQL Controls
  • Mic Gain/RF Gain Controls
  • Band Selector (6 Bands)
  • Dual Echo and Adjustable Talk Back/Off Controls
  • Variable RF Power Control
  • Real Channel Selector Control
  • Small Meter with Scales for Signal Strength, Power, and SWR Output
  • S-RF/SWR Switch
  • ANL-NB/OFF Switch
  • +10KHz/Off Switch
  • Radio/PA Switch
  • Dimmer H/M/L Switch
  • CH 19/Normal Switch
  • RX/TX Indicator LED
  • Antenna Warning LED
  • Cool Blue Channel LED's/Meter Light
  • Legendary Mirage Receive Circuit
  • Specifications:
    • Mirage:
      • Model: Mirage MX-36HP3
      • Frequency Range: 28.765 to 29.205 MHz
      • Emission: AM
      • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
      • Frequency Stability: 0.001%
      • Temperature Range: -20C to +50C
      • Antenna Impedance: 50 Ohms
      • Antenna Connectors: Standard SO-239 type
      • Input Voltage: 13.8V DC
      • Size: 2-1/4" (H) x 7-3/8" (W) x 8-3/4" (D)
      • Weight: 4.2 lb.
      • Meter: Illuminated; indicates relative output power, received signal strength and SWR level
    • Transmitter:
      • Carrier Power (High/Low): AM: 10W/1W (+/-10%)
      • PEP Power (Two Tone): AM: 50W (max)
      • Spurious & Harmonic Emission: AM: > -50 dB
      • Frequency Response: 300 to 2500 Hz
      • Microphone: Plug-in dynamic; with push-to-talk switch and coiled cord
    • Receiver:
      • Sensitivity for 10 dB (S+N)/N: AM: < 0.5 uV
      • Squelch Sensitivity at Threshold: AM: < 0.5 uV
      • Image Rejection Ratio: AM: > 50 dB
      • Reference Audio Output Power: 3.0 W
      • Audio Output Load: 8 Ohm Resistive
      • Audio Response: 300 to 2500 Hz
  • Contents:
    • 10 Meter Mirage MX-36HP3 Radio
    • 4 Pin Dynamic Microphone (SRA-198 Noise Cancelling Mic)
    • DC Power Cord
    • Mounting Bracket with Hardware
    • Microphone Hanger with Hardware
    • User's Manual
  • Color: Black win Chrome Face
  • Manufacturer's Limited Warranty
  • Sold: Each

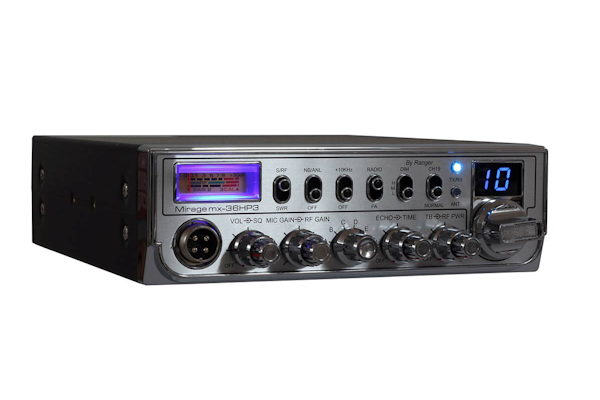

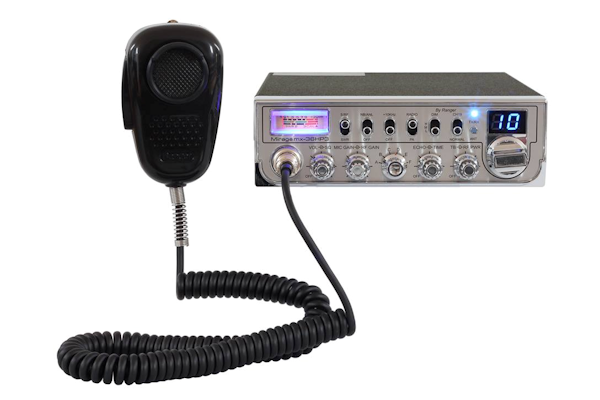

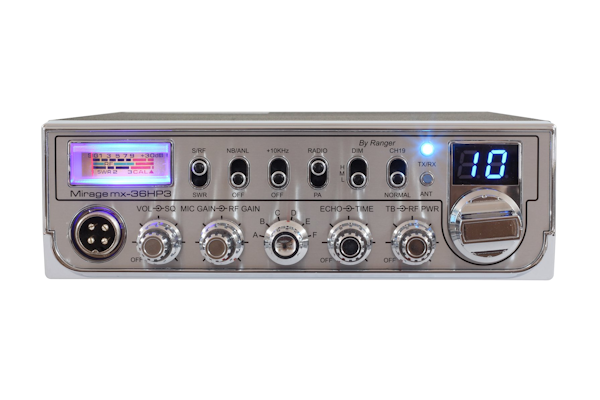

Mirage MX-36HP3 - 10 Meter Amateur Radio
Mirage MX-36HP3 - 10 Meter Amateur Radio

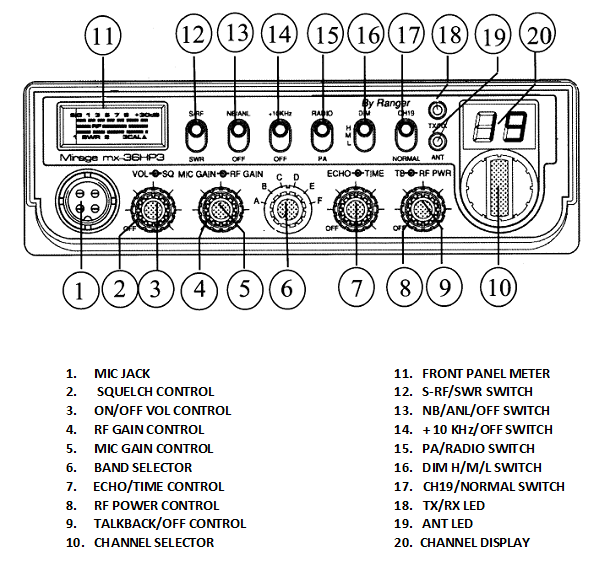

Mirage MX-36HP3 - Operation's Guide
Mirage MX-36HP3 - Operation's Guide


The Mirage MX-36HP3 Manual


The Mirage MX-36HP3 Spec Sheet

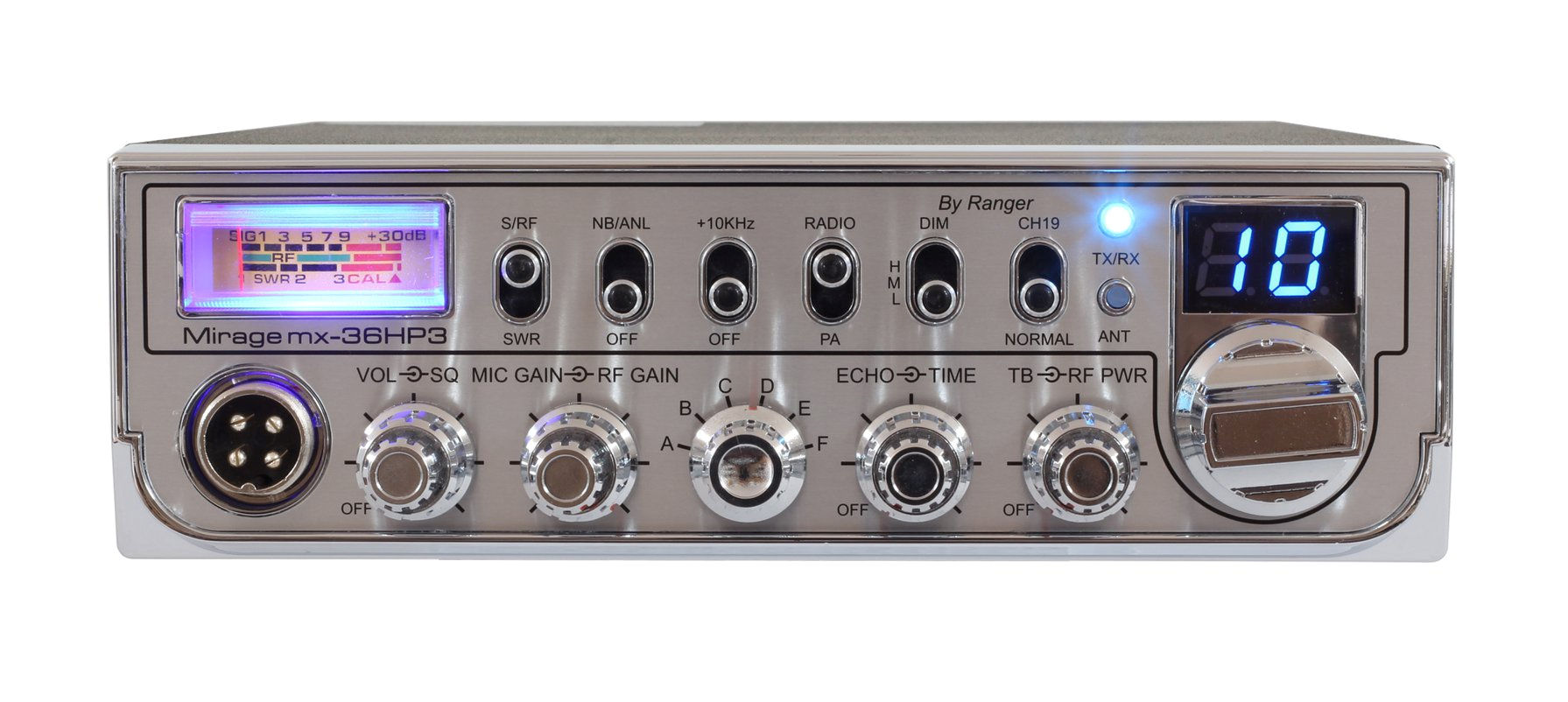

Mirage (MX-36HP3) - AM/PA

Please Note:
  • This Selection Is Mirage (MX-36HP3) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each
