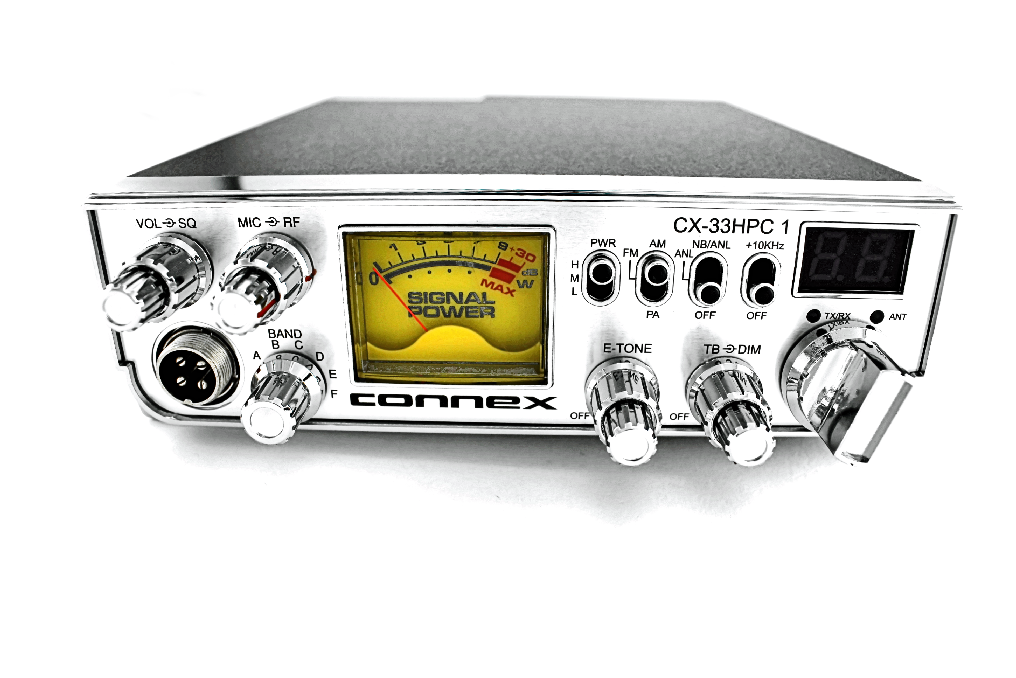

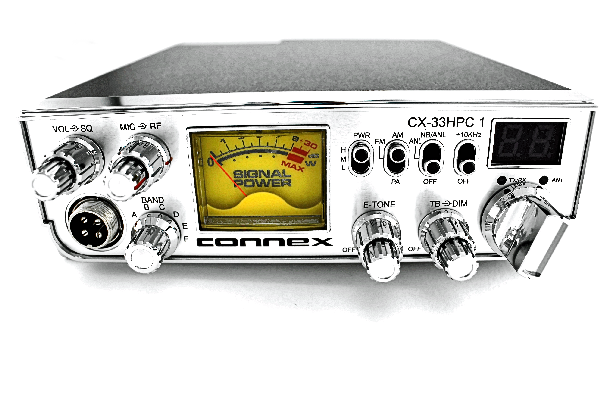

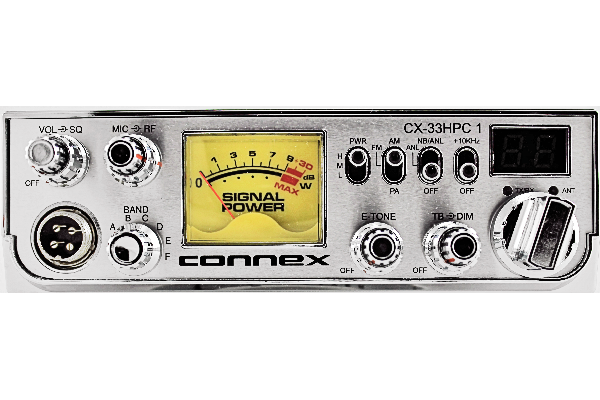

Connex (CX-33HPC1) - AM/FM/PA, Black
Description:
Connex 10 Meter Amateur Radio - Same Size as the 40
Channel Cobra 29/Galaxy DX 929.
The Connex CX-33HPC1 will fit those tight overhead
compartments in big trucks designed for a Cobra 29/Galaxy
DX 929.
The Connex CX-33HPC1 features 40+ watt power output, blue
channel LED, large meter which monitors both signal
strength and RF output power, front mic jack, echo with
dual controls, variable talkback, variable dimmer, three
position power output switch, 6 bands and a 10KHz switch.
Connex - Amateur and CB Radios

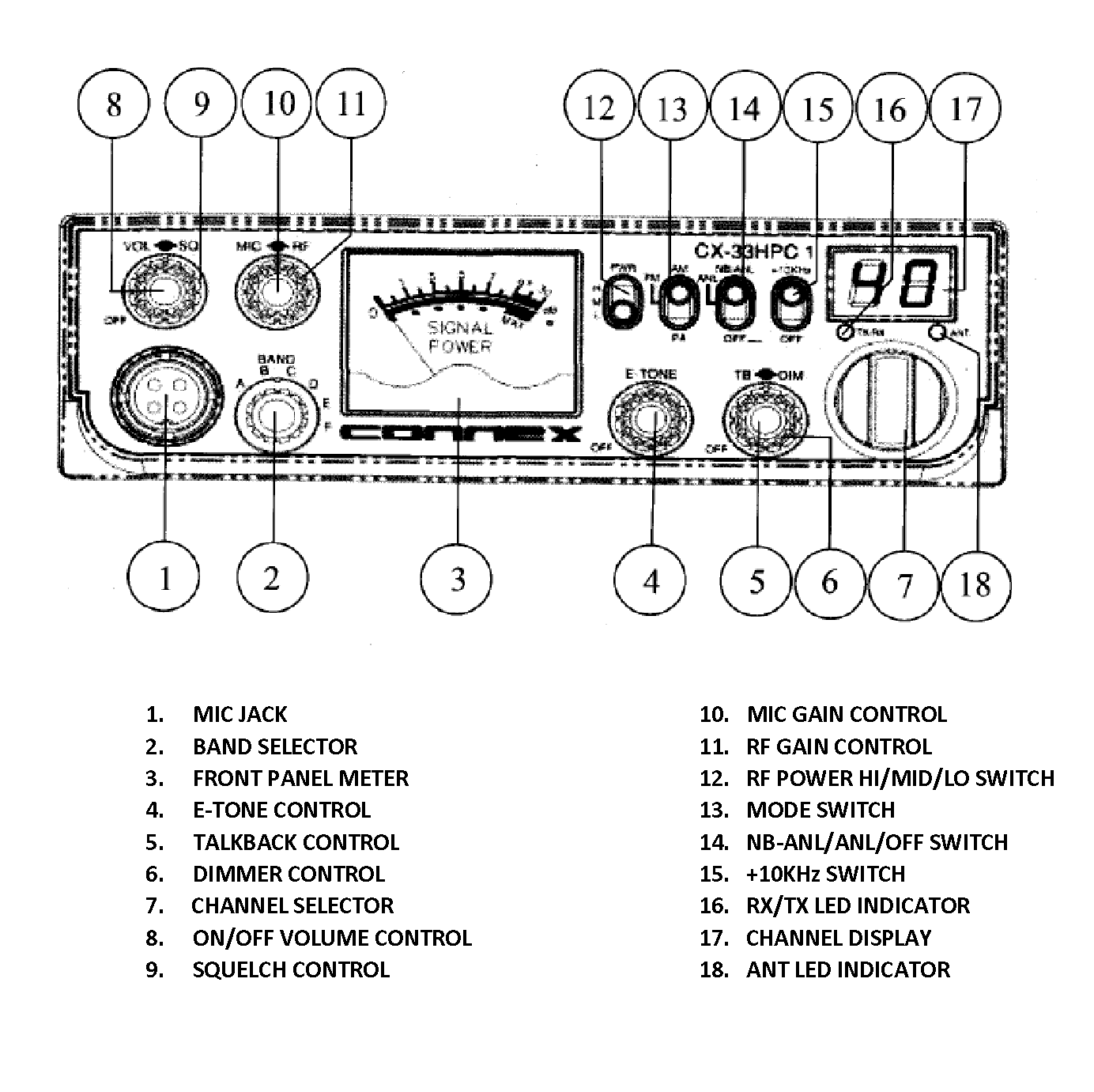

Features and Specifications:
- 10 Meter Mobile Amateur Radio
- AM/FM/PA
- Dual MOSFET Finals - 40+ watts
- Large Meter with Scales for Signal Strength and RF
Power Output
- Front Panel 4 Pin Mic Jack
- Blue Channel LED's
- Rear Frequency Counter Jack
- Rear PA Speaker & External Speaker Jacks
- Variable Dimmer Control
- Vol, Sql, Mic Gain, RF Gain
- Dual Echo Control, Variable Talk Back and On/Off
+10KHz Switch
- Band Selector (6 Bands)
- 3 Level Power Control
- ANL-NB or ANL or OFF Switch
- White Lighting for Meter
- RX/TX Indicator LED
- ANT Indicator LED - Lights Red When SWR is higher
than 3:1
- Specifications:
- General:
- Model: CX-33HPC1
- Frequency Range: 28.765 to 22.205 MHz
- Emission: AM/FM
- Frequency Control: Phase-Lock-Loop (PLL)
Synthesizer
- Frequency Stability: 0.001%
- Temperature Range: -30C to +50C
- Antenna Impedance: 50 Ohms
- Antenna Connectors: Standard SO-239 type
- Input Voltage: 13.8V DC
- Current Draw: 7 Amp
- Fuse Size: 10 Amp
- Size: 2.25" (H) x 7.25" (W) x
9.00" (D)
- Weight: 3.615 lb.
- Meter: Illuminated; indicates relative output
power, received signal strength
- Transmitter:
- RF Power Output: Hi: 10W; Mid: 4W; Lo: 3W
- Spurious Emission: > -55 dB
- Audio Distortion: 10%
- Frequency Response: 300 to 2500 Hz
- Microphone: Plug-in dynamic; with
push-to-talk switch and coiled cord
- Receiver:
- Sensitivity for 10 dB (S+N)/N: AM: <1 uV
- Sensitivity for 20 dB (S+N)/N: FM: <0.5 uV
- Squelch Sensitivity: <0.5 uV
- Sensitivity: >-60dB
- Image Rejection: > 50 dB
- Hum & Noise: >-40 dB
- AGC Figure of Merit: 70 dB for 50 mV for 10
dB Change in Audio Output
- Audio Power Output: 2.5W @ 10% Distortion
- Audio Response: 300 to 2500 Hz
- Contents:
- 10 Meter Connex CX-33HPC1 Radio
- 4 Pin Stock Microphone
- DC Power Cord
- Mounting Bracket with Hardware
- Microphone Hanger with Hardware
- User's Manual
- Color: Black
- Manufacturer's Limited Warranty - 1 Year(s)
- Sold: Each
Connex (CX-33HPC1) - AM/FM/PA
Please Note:
- This Selection Is Connex (CX-33HPC1) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
