Sirio Antenne (PN 2104801.00) - 827 - Hi-Tech
Omni-Directional Aluminum Alloy 10 to 11 Meter Base
Antenna, 1000 Watt Max, 5/8 Wave Linear Vertical
Polarization, 26.4-28.4MHz, Tunable Base, 4 Section,
21.98ft Tall
Description:
The Sirio 827 base antenna is one of the most respected
antennas around. High performance comes as standard and
the 827 will let you transmit much further than most
conventional antennas, the build quality is superb, will
give many years of service, and ideal also for amateur
use on the very popular 10m (28Mhz) band too.
The most modern technology and the most advanced
instruments have been used for realization of SIRIO 827,
the new base antenna with remarkable characteristics. It
is made of Silicium Magnesium Aluminum tubes of big
dimensions drawn and cemented on the surface to get the
maximum strength of the main whip.
The coil, made of enamelled copper wire of big section,
has been specially planned in order to bear high powers.
It adopts the exclusive system C.A.C.S. (Coil
Auto-Cooling System) which allows the auto-cooling by a
finned support that keeps the coil hanging up allowing
the air circulation.
- Base station antenna, Omnidirectional
- High power handling capability
- Low radiation angle for excellent DX
- Equipped with excellent multi element ground plane
- Made of aluminum alloy 6063 T-832
- Protection from static discharges DC-Ground
-

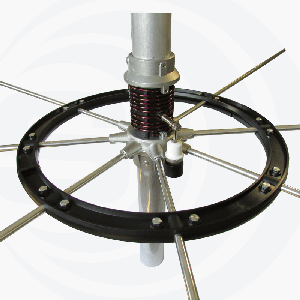

Optional radials reinforcement, anti-noise NYLON
RING (P/N 2511001.00)
Sirio Antenne - Smart solutions for new and
existing products.
Features and Specifications:
- "827" - Hi-Tech Omni-Directional Aluminum
Alloy 10 m to 11 m Base Antenna
- Type: Base Loaded
- Type: 5/8 Wave Ground Plane
- Systems: 10m-HAM
- Radiation (H-plane): 360 Degrees Omnidirectional
- Polarization: Linear Vertical
- Gain: 1.5 dBd, 3.65 dBi

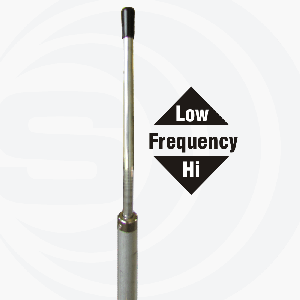

- Frequency Range: Tunable from 26.4 to 28.4 MHz
- Bandwidth @ SWR = 2: = 2000 KHz
- SWR @ res. freq.: = 1.1
- Impedance: 50 Ohm
- Max. Power: 1000 Watts (CW) Continuous / 3000 Watts
(CW) Short Time
- Grounding Protection: DC-Ground
- Feed system / position: Transformer DC-ground / base
- Connector UHF-Female (SO-239)
- Mounting Type: On-Mast
- Mounting Mast Diameter: 35-39 mm (1 3/8" - 1
1/2")
- Materials: Aluminum, Steel, Copper, Nylon
- Wind load / resistance: 264 N at 150 Km/h / 130 Km/h
- Wind surface: 0.23 m2
- Height (approx.): 6700 mm / 21.98 ft
- Weight (approx.): 6000 gr / 13.23 lb
- Radial length (approx.): 1400 mm / 4.6 ft
-
Optional radials reinforcement, anti-noise NYLON
RING (P/N 2511001.00)
- Sold: Each
Sirio Antenne (PN 2104801.00) - 827 - Hi-Tech
Omni-Directional Aluminum Alloy 10 to 11 Meter Base Antenna
Please Note:
- This Selection Is Sirio Antenne (PN 2104801.00)
ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
