President (JFK II A+) - AM/FM/PA, Black, 10 Meter Amateur Mobile Radios


Product ID:   PID3894
Status: Out of Stock - Can Not Order At This Time

President (JFK II A+) - AM/FM/PA, Black, 10 Meter Amateur Mobile Radios



Price:
Quantity:




"Optimum Performance" Upgrade Option:





President (JFK II A+) - AM/FM/PA, Black


Description:

Welcome to the world of the new generation of radios. The new PRESIDENT range gives you access to top performance radio equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT JFK II A+ ASC is a new step in personal communication and is the surest choice for the most demanding of professional radio users.


PRESIDENT - More than a name, PRESIDENT is the representative of the Citizen's Band which unites millions of CB users all over the world : drivers, purists and technology fans.


Features and Specifications:

  • 10 Meter Mobile Amateur Radio
  • AM/FM
  • Channel rotary switch
  • Volume adjustment and ON/OFF
  • Manual squelch and ASC
  • Multi-functions LCD display
  • Frequencies display
  • Digital S-meter
  • Public Address
  • Vox function (Hands free)
  • ANL filter , NB and HI-CUT
  • RF Gain / Mike gain
  • Channels scan
  • Beep Function
  • Roger Beep
  • Mode switch AM / FM / PA
  • Dual watch
  • SWR (Power Reading /SWR)
  • Front microphone plug: 6-Pin
  • External loudspeaker jack
  • Supply: 13.8V
  • External Vox Mic Jack
  • External Speaker Jack
  • Rear PA Horn Jack
  • Size (W x D x H): 180 x 188 x 51 in mm
  • Weight: 1.5 kg
  • Size (W x D x H): 7.09 x 7.40 x 2.01 in inches
  • Weight: 3.31 lbs
  • Included Accessories:
    • Power Cord with Fuse
    • 1 Microphone and Its Hanger
    • 1 Mounting Bracket with Fixing Screws
  • Technical Characteristics:
    • General
      • Modulation Modes : AM/FM
      • Frequency Ranges : from 28.315 MHz to 28.755 MHz
      • Antenna Impedance : 50 ohms
      • Power Supply : 13.8 V
    • Transmission
      • Frequency Allowance : +/- 300 Hz
      • Carrier Power : 15 W AM (50 W PEP) / 15 W FM
      • Transmission Interference : inferior to 4 nW (- 54 dBm)
      • Audio Response : 300 Hz to 3 KHz in AM/FM
      • Emitted Power in the Adj. Channel : Inferior to 20 microW
      • Microphone Sensitivity : 3.0 mV
      • Drain : 5 A (with Modulation)
      • Modulated Signal Distortion : 2 %
    • Reception
      • Maxi. Sensitivity at 20 dB sinad :
        • 0.7 microV -110 dBm (AM)
        • 0.35 microV -116 dBm (FM)
      • Frequency Response : 300 Hz to 3 kHz in AM/FM
      • Adjacent Channel Selectivity : 60 dB
      • Maximum Audio Power : 3 W
      • Squelch Sensitivity :
        • mini 0.2 microV - 120 dBm
        • maxi 1 mV - 47 dBm
      • Frequency Image Rejection Rate : 60 dB
      • Intermediate Frequency Rej. Rate : 70 dB
      • Drain : 0.4 A nominal / 1.5 A maximum
  • UPC 3435991327015
  • Color: Black
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each

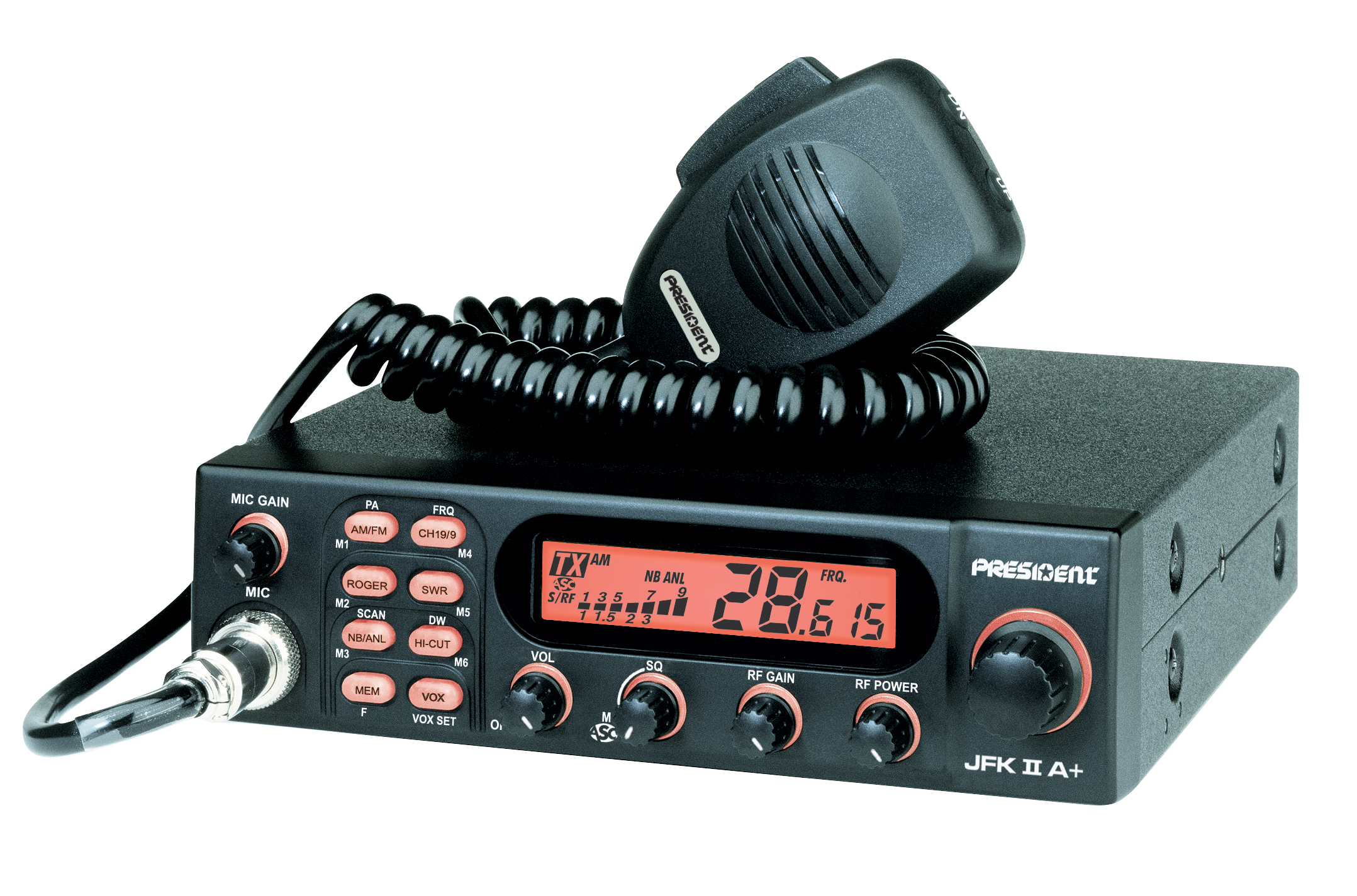

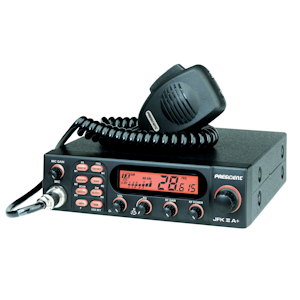

President JFK II A+ - 10 Meter Amateur Radio
President JFK II A+ - 10 Meter Amateur Radio

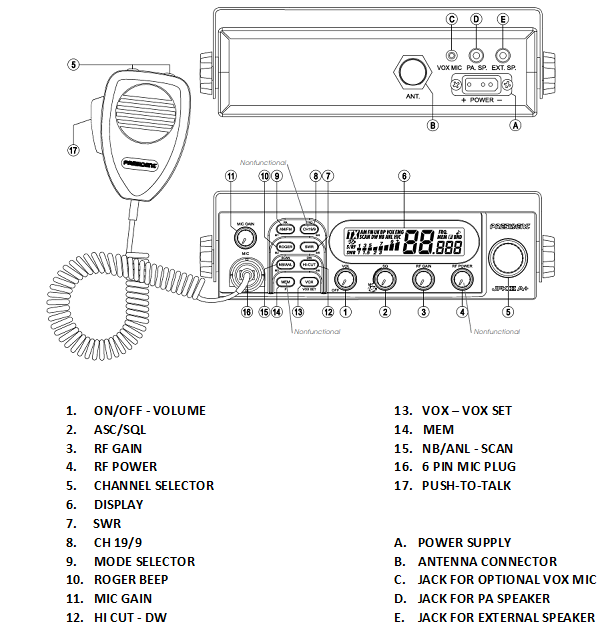

President JFK II A+ - Front and Rear Panel Functions and Features
President JFK II A+ - Front and Rear Panel Functions and Features


President JFK II A+ User Manual


President (JFK II A+) - AM/FM/PA

Please Note:
  • This Selection Is President (JFK II A+) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
