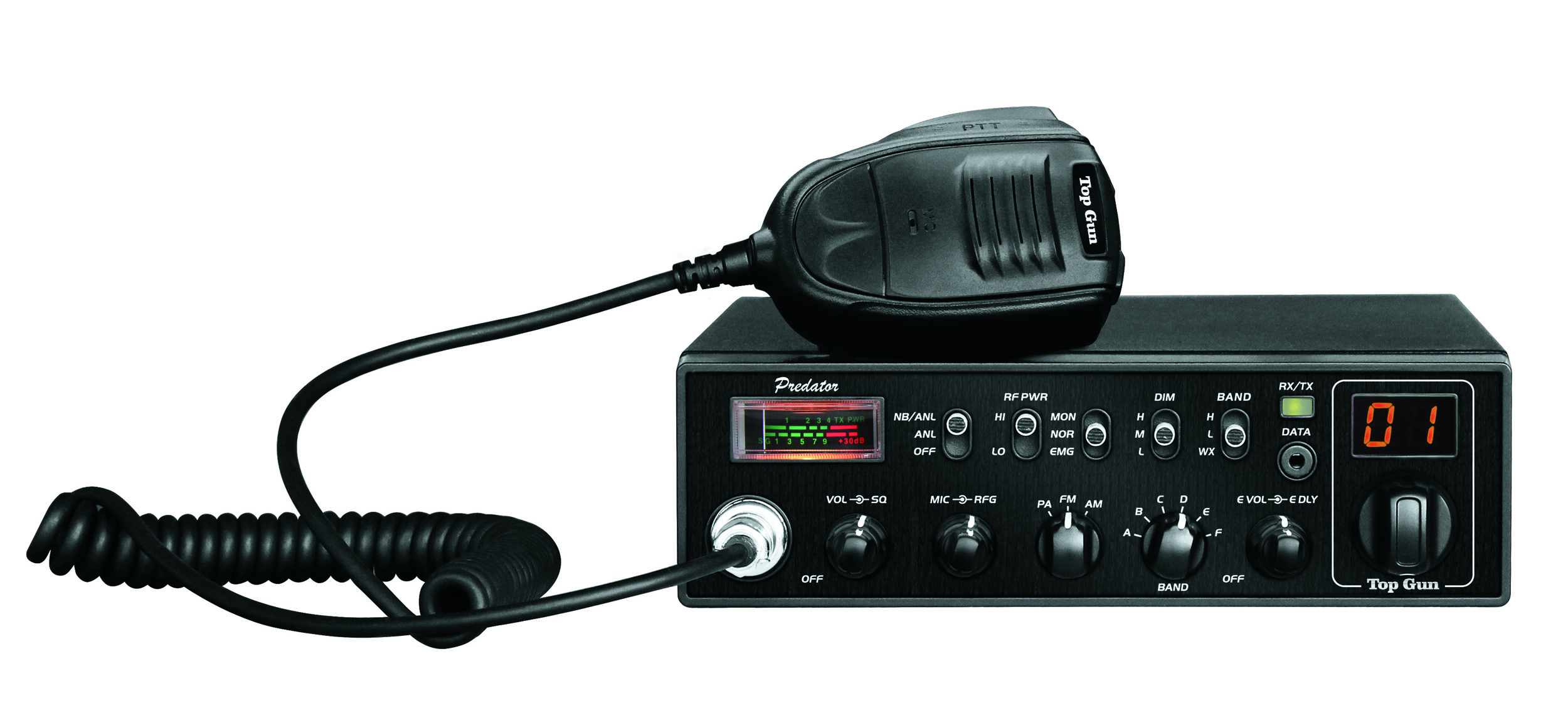

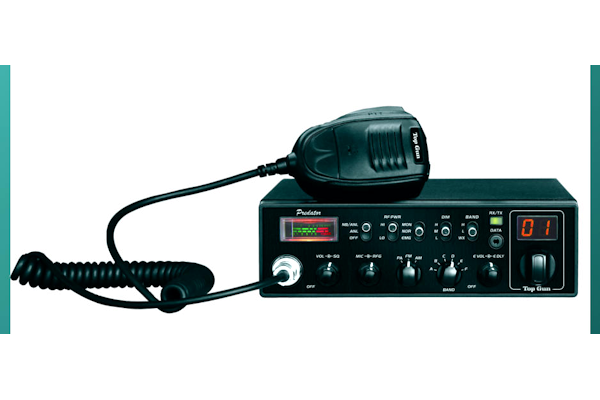

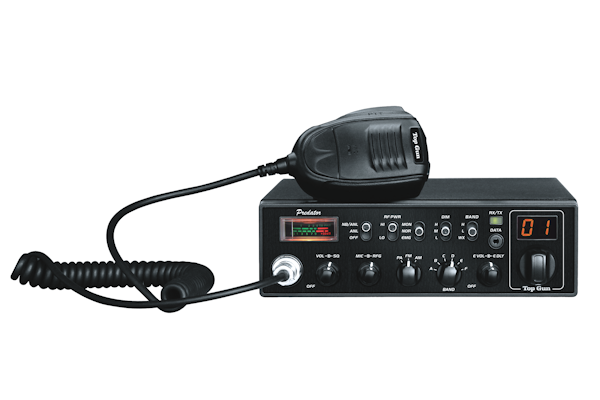

Top Gun Technologies (Predator) - AM/FM/PA/WX, Black

Description:

NEW: The Top Gun Predator 10-Meter Radio: First 10 Meter Mobile with NOAA Weather Radio!

A classic design -- more features than meets the eye:

• Auto Squelch
• 55 Level Adjustable Talk-Back (Adjust to Your Personal Level of Different Microphones)
• Digital SWR Meter
• Up/Down Mic
• Digital Volume Indicator (Remember Your Volume Setting So There Is No Guesswork When You Turn It On)
• Digital Squelch Indicator (Auto Squelch Is Activated When Fully Counter-Clockwise)
• Digital Mic Gain Indicator (Remember Your Best Mic Setting and Get It Right Every Time)
• Programmable EMG Channel (Switch to EMG and Go To That Channel From Whatever Channel You're On)
• Computer Programmable - With Optional Cable (SEE: PID3896)
• 3 Level Dimmer
• 10 Weather Channels (Additional Channels Can Be Programmed for Future Upgrade)
• Front Mounted Data Port for Computer Connection
• Easy To Adjust Echo with Clean Crisp Sound Quality
• AM Low and High Power Levels (50+ Watts PEP)
• FM Low, Medium & High (2, 10 & 40 Watts)
• CTCSS/DCS Code for FM Repeater (Use with Optional Plug-In Board)
• SAME Excellent Transmitter and Receiver Audio Quality that Top Gun Technologies Is Known For

The Top Gun Predator radio is loaded with memory. It's top of it's class...the audio on both transmit and receive is excellent. Convenient standard 4-pin mic wiring. (Quality UP/DN switching mic included.) Your favorite mic is easily updated for UP/DN channel control.

• AM, FM, & PA Mode
• CTCSS/DCS Code (With Optional Plug-In PC Board)
• Computer Programmable - With Optional Cable (SEE: PID3896)
• NOAA Weather Channels
• Adjustable Talkback And Mic Gain
• Dual Control Adjustable Echo
• Adjustable RF Gain And RF Power
• Analog S/RF Meter
• No Cal Auto Digital SWR Meter
• AM H/L Power FM H/M/L Power
• SWR And Voltage Protection
• Hi Cut Tone Control
• ANL & NB Filters
• AM/FM Auto Squelch
• Three Level LED Brightness Adjustment
• UP/DOWN Buttons On Mic
• Programmable Emergency Channel
• Programmable Roger Beep
• Dual Final 50+ Watts PEP

Visit The Predator Resource Center located at TopGunTec.Com for the 'latest' including programming instructions and software.

Note: The Predator Resource Center is located at the bottom of the TopGunTec.Com's Predator webpage.

Features and Specifications:

• 10-Meter Mobile Amateur Radio with NOAA Weather Channels
• AM/FM/PA
• Dual Final 50+ Watts PEP
• Same Excellent Transmitter and Receiver Audio Quality Top Gun Technologies Is Known For
• Classic Design
• NOAA Weather Channels - 10 Channels - Additional Channels Programmable for Future Upgrades
• 55 Level Adjustable Talkback
• Mic Gain
• Front Mounted Data Port for Easy Computer Connection
• AM Low and High Power Levels (50+ Watts PEP)
• FM Low, Medium and High (2, 10 & 40 Watts)
• Dual Control Adjustable Echo Featuring Clean Crisp Sound Quality
• Adjustable RF Gain And RF Power
• No Cal Auto Digital SWR Meter
• Digital Volume, Digital Squelch, and Digital Mic Gain Indicator
• SWR And Voltage Protection
• Hi Cut Tone Control
• ANL & NB Filters
• AM/FM Auto Squelch
• Three Level LED Brightness Adjustment
• UP/DOWN Buttons On Mic
• Programmable Emergency Channel
• Specifications:
  • General:
    • Model: Predator
    • Frequency Range: 28.000MHz-29.695MHz (Programmable)
    • Frequency Bands 12: Lo Band: A/B/C/D/E/F and Hi Band: A/B/C/D/E/F
    • Channels: 40 Channels (Programmable) in Each Band
    • Frequency Control: Phase-Locked-Loop (PLL) Synthesizer
    • Frequency Tolerance: +/- 5.0 ppm
    • Temperature Range: -20C to +50C
    • Microphone: High Quality Audio with Push-to-Talk Up/Dn and Coiled Cord
    • Input Voltage: DC 13.8V Normal
    • Size: 11.3" x 7.9" x 2.4 " inches (287mmx200mmx61mm)
    • Weight: 3.9 pounds (1.75KG)
    • Antenna Connector: UHF, SO239
  • Transmitter:
    • RF Power Output: AM: 4W/10W; FM: 4W/10W/40W
    • Modulation: AM/FM
    • Unwanted Sideband: 50dB
    • Frequency Response: AM and FM: 300 to 3000Hz
    • Impedance: 50 Ohms, Unbalanced
    • Current Drain: 8 Amps (with Modulation)
  • Receiver:
    • Sensitivity: AM: 1.0uV for 10 dB (S+N)N at Greater than 1/2 Watt of Audio Output
    • Sensitivity: FM: 1.0uV for 20dB (S+N)N at Greater than 1/2 Watt of Audio Output
    • Adjacent-Channel Selectivity: AM/FM: 60dB
    • Image Rejection: More than 65 dB
    • IF Frequency: AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
    • RF Gain Control: 45 dB Adjustable for Optimum Signal Reception
    • Automatic Gain Control (AGC): Less than 10 dB Change in Audio Output for Inputs From 10 to 100,000 Microvolt
    • Squelch: Adjustable; Threshold Less Than 1.0uV; Automatic Squelch Control (Only AM/FM) 1.0uV
    • Audio Output Power: 3 Watts Into 8 Ohms
    • Frequency Response: 30 to 3000 Hz
    • Built-In Speaker: 8 Ohms, Round
    • External Speaker Jack: 8 Ohms; Disables Internal Speaker When Connected
• Contents:
  • 10 Meter Predator Radio
  • 4 Pin Microphone
  • DC Power Cord
  • Mounting Bracket with Hardware
  • User's Manual
  • • Optional Accessories:
    • Predator Programming Cable
    • External Speaker
    • CTCSS/DCS Code for FM Repeater (With Optional Plug-In PC Board)
• Color: Black
• Manufacturer's Limited Warranty - 1 Year(s)
• Sold: Each

Top Gun Technologies Predator - 10 Meter Amateur Radio with Weather

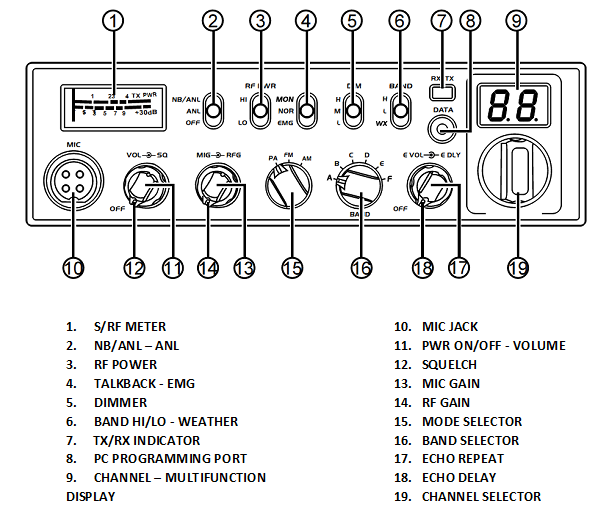

Top Gun Technologies Predator - Operation's Guide

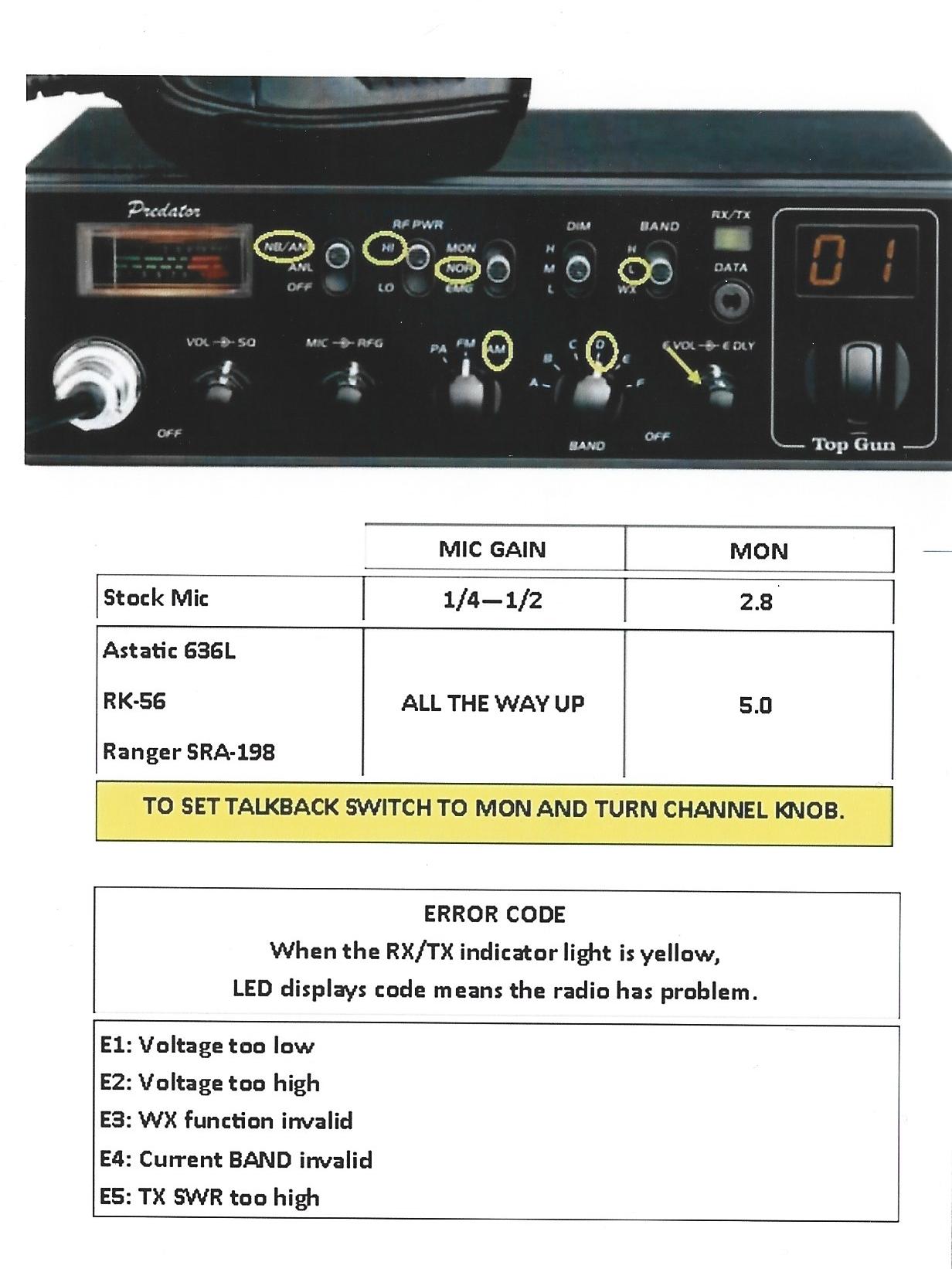

Top Gun Technologies Predator - Cheat Sheet

The Predator Manual

The Predator Sales Flyer

The Predator Resource Center
