Ranger (RCI-2950CD) - AM/FM/USB/LSB/CW/PA, Black, 10 & 12 Meter Amateur Mobile Radios


Product ID:   PID3879
Status: Available

Ranger (RCI-2950CD) - AM/FM/USB/LSB/CW/PA, Black, 10 & 12 Meter Amateur Mobile Radios



Price:
Quantity:





"Optimum Performance" Upgrade Option:





Ranger (RCI-2950CD) - AM/FM/USB/LSB/CW/PA, Black


Description:

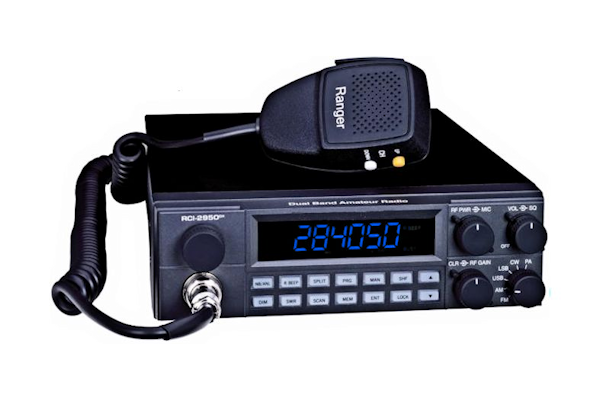

The RCI-2950CD features an all blue LED display and 4-level brightness adjustment. (Button back-lighting is green.)

Ranger Communications once again sets the performance and reliability standard for entry level amateur mobile transceivers with the latest generation of their popular RCI-2950CD.

Introducing the new RCI-2950CD: This new model feature microprocessor control of not one but two amateur bands. The new RCI-2950CD, rated at 25W PEP, is perfect for the recent band openings on 10 and 12 meters. Now you can upgrade your mobile Ham capabilities with a radio that is rich in features and reasonable in cost.

The new model has retained the operating features of its popular predecessor, including programmable repeater offset and capabilities for a CTCSS tone option -- great for increasing repeater activity on 10 meters -- and receiver scanning for quick search of active frequencies. The unit offers three methods of frequency selection, non-volatile memory to store and scan up to ten favorite frequencies, and front panel frequency selector lockout.

In addition, the RCI-2950CD offers an impressive array of design and performance improvements:

  • An improved receiver: designed for increased sensitivity and image rejections
  • A double FET balanced mixer: for improved receiver intermodulation rejection.
  • New power supply protection: and temperature compensation for improved stability and reliability over wide temperature ranges.
  • Surface mount components: for increased resistance to shock and vibration.
  • Improved display lighting: for easy reading in a wide range of light conditions.
  • Variable Power Output from 2 watts to 25 watts (RCI-2950CD).

For use of the RCI-2950CD in a base station application, Ranger recommends at minimum a 12 Amp power supply.

Ranger Communications, Inc. - Home of top quality communications equipment.


Features and Specifications:

  • 10 & 12 Meter Mobile Amateur Radio
  • AM/FM/USB/LSB/CW/PA
  • 25+ watts
  • Improved Receiver Design
  • Variable Output Power Control
  • Receiver Clarifier (+/-0.5kHz)
  • Noise Blanker/ANL Circuitry
  • Programmable Repeater Offset
  • Large Frequency Display with Dimmer
  • New Backlite Display
  • Active Frequency Scanner
  • 16 Programmable/Erasable Frequencies
  • Frequency Selector Lockout
  • Public Address Feature
  • Specifications:
    • General:
      • Model: RCI-2950CD
      • Frequency Range: 12 Meter: 24.8900 - 24.9900 MHz
      • Frequency Range: 10 Meter: 28.0000 - 29.6999 MHz
      • Emission: AM/FM/USB/LSB/CW
      • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
      • Frequency Tolerance: 0.005%
      • Frequency Stability: 0.001%
      • Temperature Range: -20C to +50C
      • Antenna Impedance: 50 Ohm
      • Input Voltage: 13.8V DC
      • Size: 7 3/4" (W) x 10 3/4" (D) x 2 3/8" (H)
      • Weight: 4 lb. 3 oz.
      • Meter: RF Output, RX Receive Signal Strength, SWR
    • Transmitter:
      • RF Power Output: AM/FM/CW: 10 watts; USB/LSB: 25 watts Peak Power
      • RF Transmit Modes: AM/FM/USB/LSB/CW
      • Antenna Connectors: Standard SO-239 type, 50 Ohms
      • Modulation: 16F3, A3E, J3E, A1A
      • Spurious Emission: > -50 dB
      • Carrier Suppression: -50 dB
      • Microphone: Plug-in (6-Pin) 400 Ohm dynamic; with push-to-talk switch and coiled cord
    • Receiver:
      • Sensitivity: AM/CW: 0.5 uV for 10dB Sinad;
      • Sensitivity: FM: 0.25 uV for 12dB Sinad
      • Sensitivity: USB/LSB: 0.15 uV for 10dB Sinad
      • Image Rejection: >50 dB
      • Audio Power Output: 2.5W
  • Contents:
    • 10 & 12 Meter RCI-2950CD Radio
    • 6 Pin Stock Dnynaic Microphone with Remote Frequency Adjustment Switches
    • DC Power Cord
    • Mounting Bracket with Hardware
    • Owners's Manual
    • Warranty Registration Card
  • UPC 0734168295014
  • Color: Black
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each

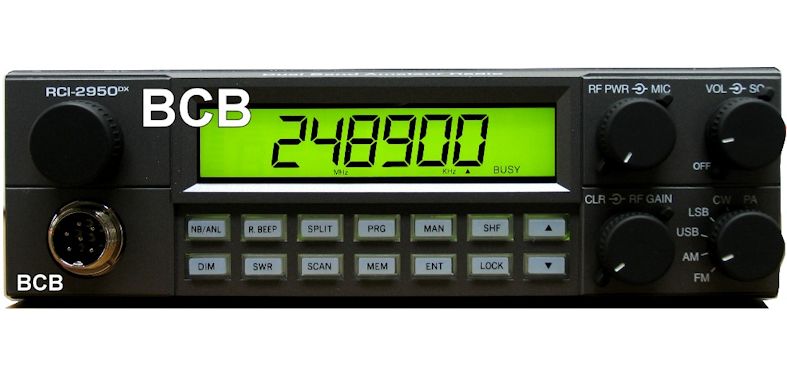

Ranger RCI-2950DX - 10 & 12 Meter Amateur Radio
Ranger RCI-2950DX - 10 & 12 Meter Amateur Radio


Ranger RCI-2950CD - Operation's Guide
Ranger RCI-2950CD - Operation's Guide


The RCI-2950CD Manual

The Ranger Amateur Radios Comparison Chart


Ranger (RCI-2950CD) - AM/FM/USB/LSB/CW/PA

Please Note:
  • This Selection Is Ranger (RCI-2950CD) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each




Inventory Status: Available
