JL Audio (RBC-1) - Remote Bass Control for Select JL
Audio Amplifiers
Description:
Remote Bass Control
The RBC-1 remotely controls the Bass Level of the
following JL Audio amplifiers:
- JX-Series: JX250/1, JX250/1D, JX500/1, JX500/1D,
JX1000/1D
- HX-Series: HX300/1 in Low Pass Mode (Note: M-RBC-1 is
also available)
- MHX-Series: MHX300/1 in Low Pass Mode (Note: M-RBC-1
is also available)
- MX-Series: MX300/1, MX500/1 in Low Pass Mode (Note:
M-RBC-1 is also available)
- RD-Series: RD500/1, RD1000/1
When the RBC-1 is connected to the above amplifiers, it
acts as an attenuator on the input gain of the amplifier
and is used to adjust the overall level of the amplifier
from the front of the vehicle.
The RBC-1 remotely controls the Bass EQ boost feature
of the following JL Audio amplifiers:
- Slash v3 Series: 600/1v3, 1200/1v3
- Slash v2 Series: 250/1v2, 500/1v2, 1000/1v2, 450/4v2
- Original Slash Series: 500/1, 1000/1, 450/4, 500/5
- G-Series: All Models
- A-Series: All Models
- e-Series: All Models (including marine versions)
- M-Series: M1400, M1700, M2150, M2250, M4300, M4500,
M6450, M6600
When the RBC-1 is connected to the above amplifiers, the
on-board "Boost" control of the amplifier is
defeated and the RBC-1 becomes the active controller.

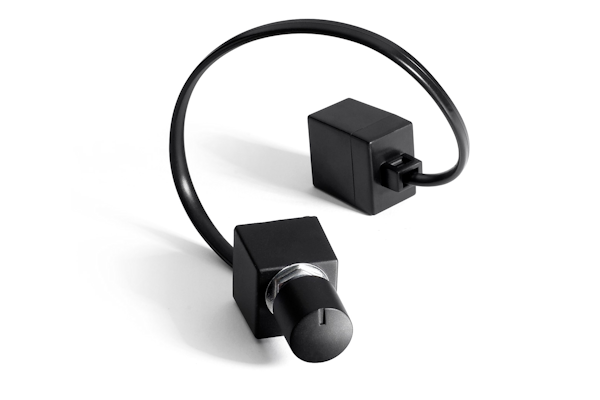

The RBC-1 kit includes the rotary control with a black
ABS knob, mounting hardware and one 18 ft. (5.5 m) cable.
JL Audio - Ahead of the curve.
Features and Specifications:
- Remote Bass Control
- For Select JL Audio Amplifiers
- Includes Rotary Control with Black ABS Knob, Mounting
Hardware and 18 ft. (5.5 m) Cable Unit
- UPC 0699440980159
- Color: Black
- Manufacturer's Limited Warranty - 2 Year(s)
- Sold: Each
JL Audio (RBC-1) - Remote Bass Control for Select JL
Audio Amplifiers
Please Note:
- This Selection Is JL Audio (RBC-1) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
