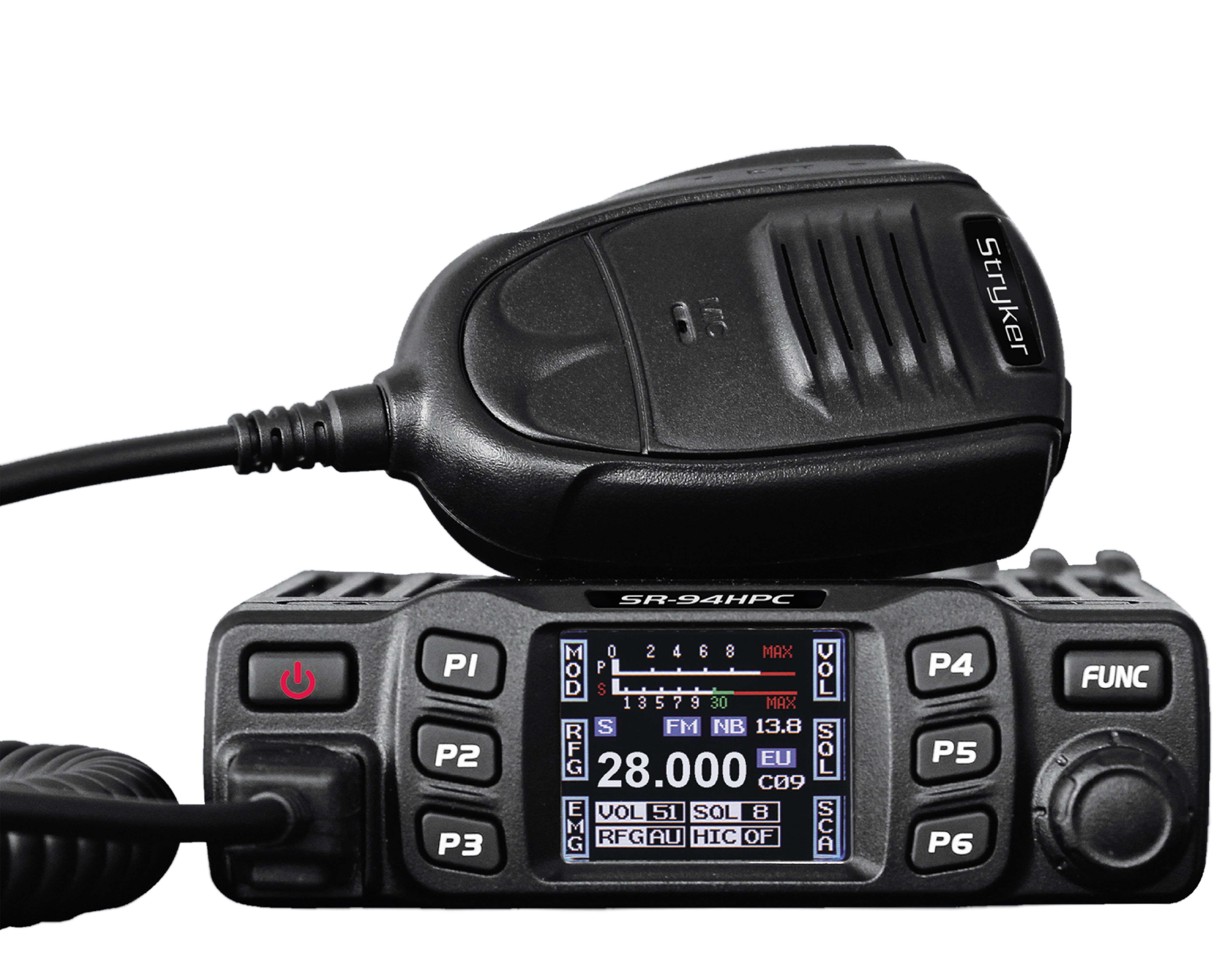

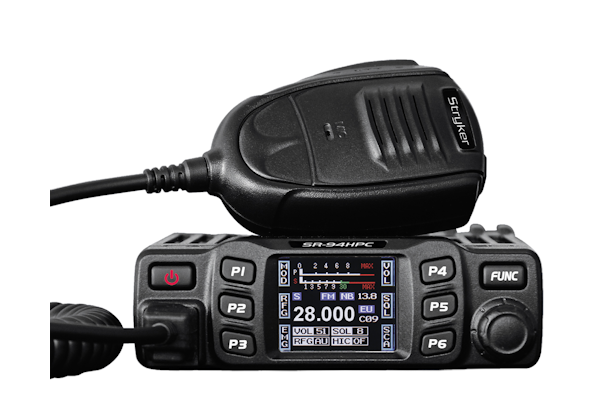

Stryker (SR-94HPC) - AM/FM, Dimmable TFT Color Display,
Slim Compact Design, Black, Factory Warranty Only
Description:
No Store Warranty - Factory Warranty Only.
Slim/Compact 10 Meter Radio = SR-94HPC
The new SR-94HPC 10 Meter Radio offer advanced features,
customization settings, and 45 watts AM PEP in a
remarkably small chassis. The wrap around cast aluminum
heat sink does an excellent job at dissipating any heat
that's generated during transmit. The SR-94HPC
features a full-color TFT display. The clarity of the
screen allows you to read it even if you are quickly
glancing at it while driving down the road. You can
choose what you want to show on the screen (features,
functions, frequency, voltage, S units and more). There
is a total of 6 push buttons around the screen (P1 - P6).
Each button is assigned to a function; for example
microphone gain or RF gain. Part of what makes the
SR-94HPC unique is you can customize what feature or
functions that you use most frequently.
Future accessories for the SR-94HPC include a Wireless
Bluetooth microphone and Smart Phone App that connects to
the radio via Bluetooth. Now that is what you call
innovation! The SR-94HPC is the perfect radio for an
amateur that enjoys talking on 10 Meter FM Repeaters.
With the optional CTCSS board, the SR-94HPC has 38 CTCSS
tones, 104 DCS tones, and repeater offsets (+ or -).
The power output vs. physical size of the radio is what
will surprise many of you! This much power is usually
only available in a full-size DX chassis. Stryker managed
to utilize three FQP13N10 final transistors for 45+ watts
of PEP. Like all Stryker Radios, it has strong AM
transmit audio. Measuring in at only 5.8" L x
4.8" W x 1.4" H, this radio will fit in any
vehicle, regardless of size. Never before has full
featured, high power radio been available in compact
chassis. With clean, modern styling, the SR-94HPC looks
great in any vehicle. The PCB & frame are exceptionally
rugged, on the road, off the road or no road, the
SR-94HPC can take it without any problem.
SR-94HPC 10 Meter Amateur Radio Important
Features:
- Dimmable TFT Color Display
- High & Low Power (4 watt or 10-watt carrier)
- Backlit Keys
- Scan Function
- Dual Channel Watch
- Channel and Frequency Display
- Integrated Automatic SWR meter
- Digital S-meter Display
- 4 Memory Channels
- Operating Voltage
- RF gain Of / Auto + 10 Attenuation Levels
- Noise Blanker Function & Hi-Cut Filter
- Channel 9 & 19 Quick Access
- Roger Beep function (8 settings)
- CTCSS / DCS (encode & decode) 38 CTCSS / 104 DCS
- DTMF (encode)
- Microphone with UP / DOWN selection
- Squelch (Manual or ASQ) and Volume Adjustable
- Programmable via PC Software (Download from Stryker
Website)
- Time-Out Timer function
- Bluetooth (optional)
Stryker Radios - Best Quality + Reliable
Features and Specifications:
- 10 Meter Mobile Amateur Radio
- AM/FM
- Dimmable TFT Color Display
- High Power - 45+ watts PEP
- Slim Compact Design Fits in Small Spaces
- Integrated Automatic SWR meter
- Noise Blanker Function & Hi-Cut Filter
- Front Mic - Telephone Plug Type Connector
- PC Programmable - Software and Special USB Cable
Provided Separately by Stryker Radio
- Slim Compact Design - 5.8" L x 4.8" W x
1.4" H
- Additional Features Include:
- Dimmable TFT Color Display
- 12/24V voltage(4W version only)
- Full alloy body for heat radiation
- Programmable keypad
- CTCSS/DCS (optional)
- Wireless microphone control(optional)
- Cell-phone APP control (optional)
- AM/FM multi band
- Flexible menu and programming software
- DTMF
- SQ, ASQ
- SQ, ASQ open/close value setting
- RF Gain
- Scan
- Dual watch
- Programmable RB
- CH9/19
- NB
- HI-CUT
- Voltage protection
- 8 memory channel
- TOT
- Backlight control
- Automatic power on
- Keypad lock
- Specifications:
- General:
- Model: SR-94HPC
- Frequency Range: 28.000 ~ 29.700MHz (AM/FM)
- Emission: AM/FM
- Frequency Control: Phase-Lock-Loop (PLL)
Synthesizer
- Frequency Tolerance: +/- 5.0ppm
- Temperature Range: -20C to +55C
- Antenna Impedance: 50 Ohms
- Antenna Connectors: UHF, Standard SO-239 type
- Input Voltage: 12/24V
- Current Drain: Transmit: - 2A Max; Receiver:
Squelched, - 0.3A; Maximum Audio output, - 0.8A.
- Size: 124mm(W) x 163mm(D) x 39mm(H) -
5.8" L x 4.8" W x 1.4" H
- Weight: 670g - 1.48 lb.
- Transmitter:
- Power Output: AM/FM - 4W
- Transmission Interference: inferior to
4nW(-54dBm)
- Frequency Response: 300 to 3000 Hz
- Modulated Signal Distortion: inferior to 5%
- Output Impedance: 50 ohms
- Receiver:
- Sensitivity: Less than 1uV for 10dB(S+N)/N
- Squelch: less than 1uV
- Image Rejection: 70dB
- Adjacent Channel Rejection: 60dB
- IF Frequencies: 1st 10.695MHz; 2nd 455KHz
- Automatic Gain Control(AGC): Less than 10dB
change in audio; Output for inputs from 10 to
50000uV
- Squelch: less than 1uV
- Audio Output Power: 3 watts into 8 ohms
- Frequency Response: 300-3000Hz
- Contents:
- Stryker SR-94HPC Transceiver
- Microphone
- 5A Fuse
- Mounting Bracket with Hardware
- Microphone Hanger with Hardware Set
- User's Manual
- Optional Accessories: PC Cable, 8 ohm Extension
Speaker
- Future Accessories: Wireless Bluetooth Microphone,
Smart Phone App
- UPC 0040232526855
- Color: Black
-
No Store Warranty - Factory Warranty Only.
- Manufacturer's Limited Warranty - 3 Year(s)
- Sold: Each

Stryker Radio SR-94HPC - 10 Meter Amateur Radio

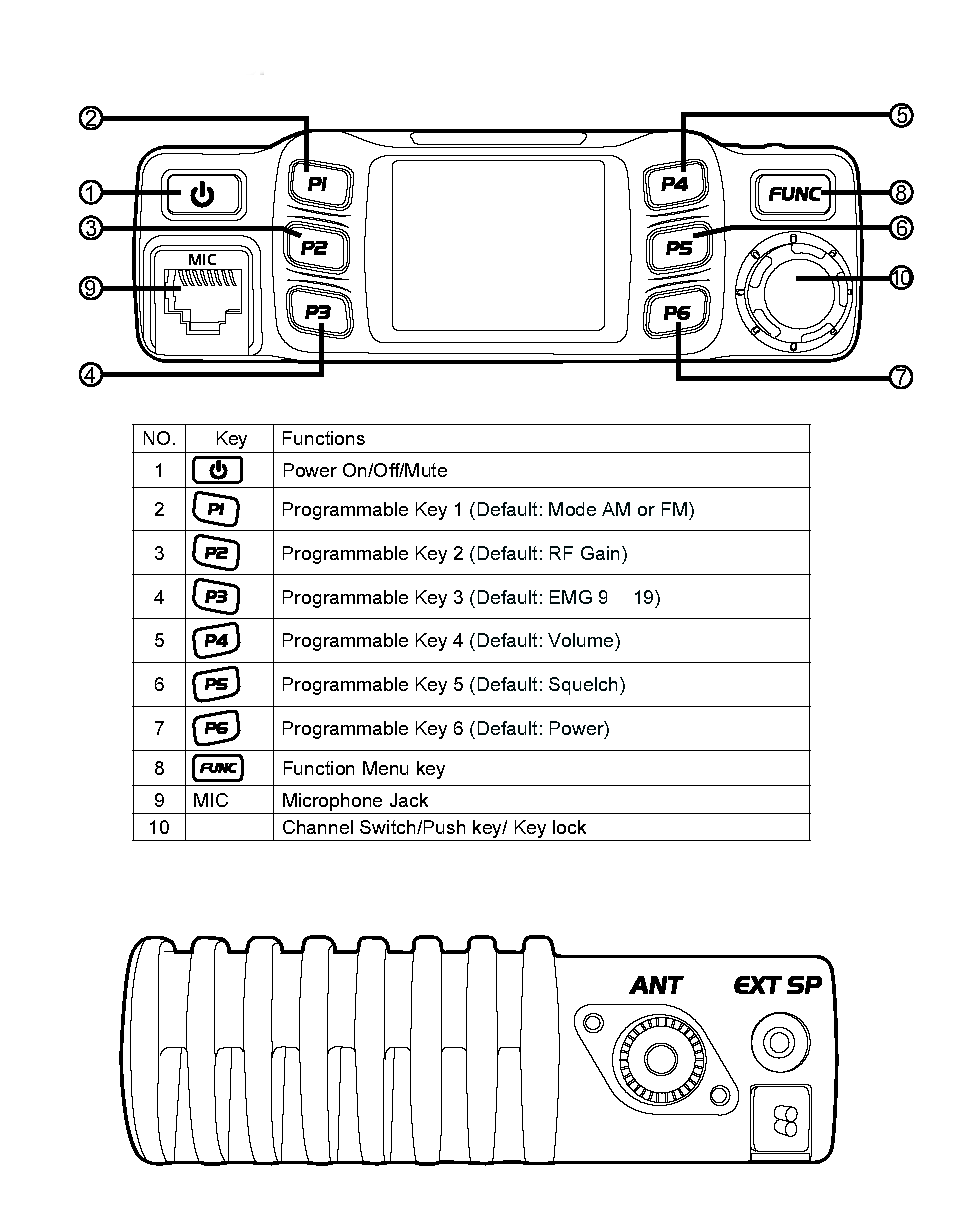

Stryker Radio SR-94HPC - Operation's Guide
The
SR-94HPC Manual
Stryker (SR-94HPC) - AM/FM
Please Note:
- This Selection Is Stryker (SR-94HPC) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
