~Mirage (MX-25) - AM/FM, Black, 10 Meter Amateur Mobile Radios


Product ID:   PID3786
Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.






~Mirage (MX-25) - AM/FM, Black, 10 Meter Amateur Mobile Radios

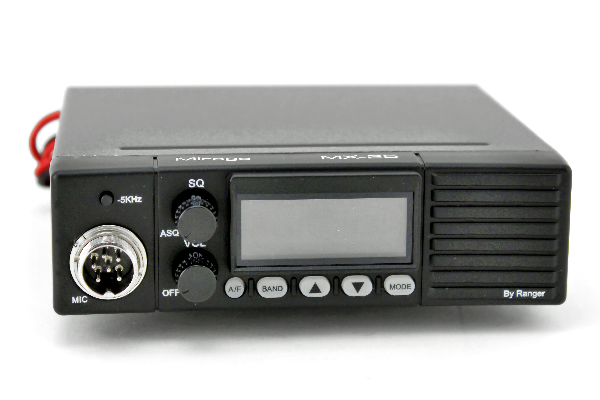

Mirage (MX-25) - AM/FM, Black


Description:

A compact 10 meter radio.

The MX-25 has 20+ watt power output, 7 color display with dimmer, front mic jack, frequency display, front speaker and microphone with up/down buttons.

Mirage - Amateur Radios


Features and Specifications:

  • 10 Meter Mobile Amateur Radio
  • Compact Size
  • AM/FM
  • 20+ Watts
  • Front Panel 6 Pin Mic Jack
  • Channel Selectors - Up Down Buttons
  • Squelch - Auto Squelch
  • On/Off Volume Control
  • Mode Selector
  • Band Selector
  • Mode Button for Selecting Multiple Settings Modes
  • -5KHz Button
  • LCD Display - 7 Colors with Dimmer
  • Specifications:
    • Mirage:
      • Model: Mirage MX-25
      • Channels: 120
      • Frequency Range: 28.315 to 22.655 MHz
      • Emission: AM/FM
      • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
      • Frequency Stability: 0.001%
      • Temperature Range: -20C to +50C
      • Antenna Impedance: 50 Ohms

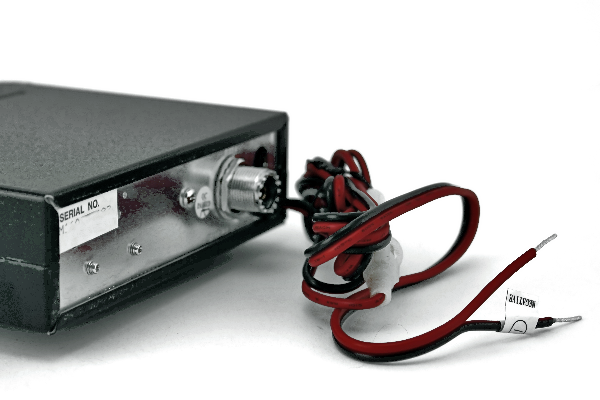

      • Antenna Connectors: Standard SO-239 type
      • Input Voltage: 13.8V DC
      • Size: 1.6 " (H) x 5.5 " (W) x 5.9 " (D)
      • Weight: 2.21 lb.
    • Transmitter:
      • RF Power Output: AM: 10W; FM: 10W
      • Spurious Emission: > -60 dB
      • Audio Distortion: 10%
      • Frequency Response: 300 to 2500 Hz

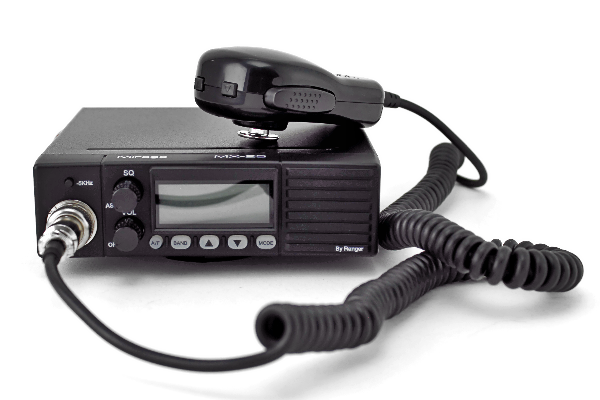

      • Microphone: Condenser type Mic; with push-to-talk switch, up/down buttons, and coiled cord
    • Receiver:
      • Sensitivity for 10 dB (S+N)/N: FM: 0.5 uV
      • Sensitivity for 20 dB (S+N)/N: AM: 1.0 uV
      • Squelch Sensitivity: < 0.5 uV
      • Image Rejection: > 60 dB
      • Audio Power Output: 3W @ 10% Distortion
      • Audio Response: 300 to 2500 Hz
  • Contents:
    • 10 Meter Mirage MX-25 Radio
    • 6 Pin Condenser Microphone

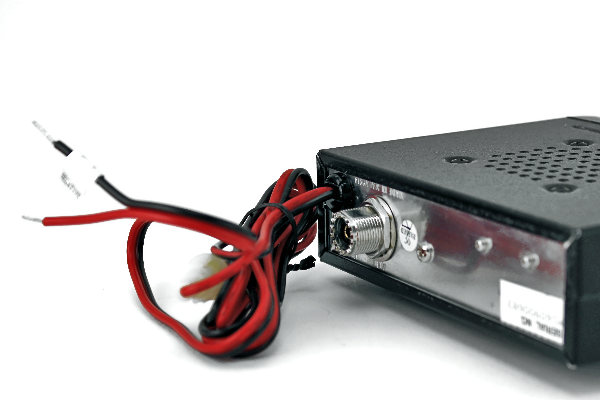

    • Hard Wired DC Power Cord
    • Mounting Bracket with Hardware
    • User's Manual
  • Color: Black
  • Manufacturer's Limited Warranty
  • Sold: Each

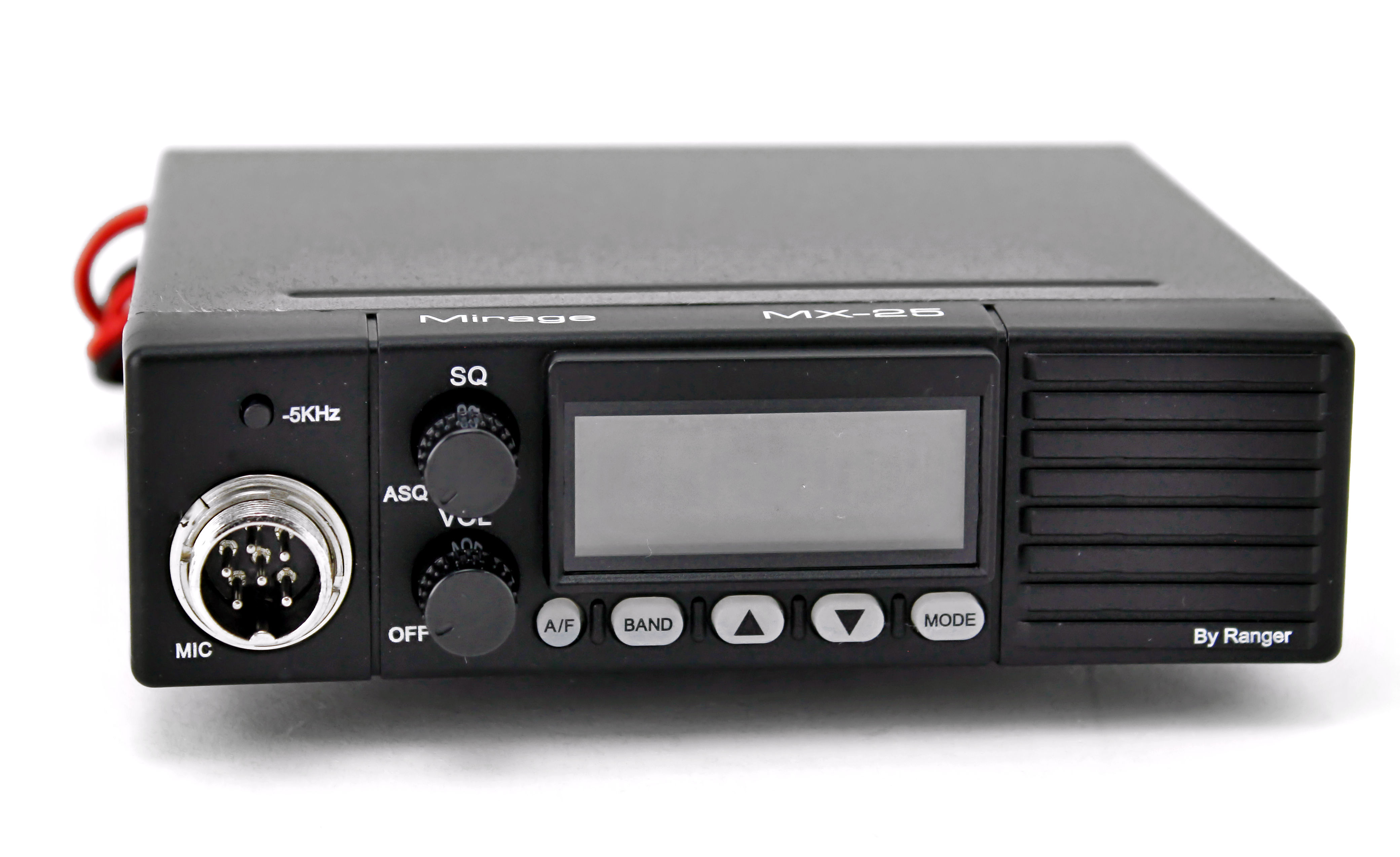

Mirage MX-25 - 10 Meter Amateur Radio
Mirage MX-25 - 10 Meter Amateur Radio

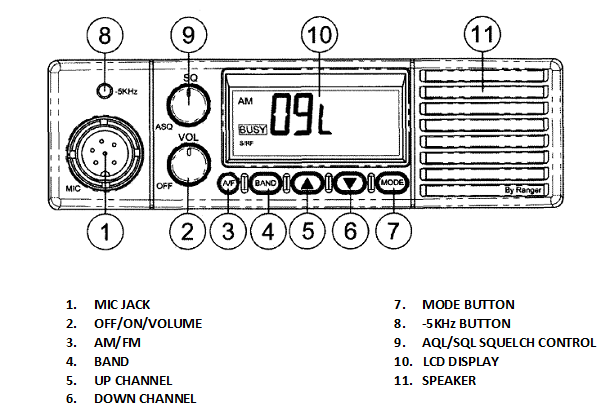

Mirage MX-25 - Operation's Guide
Mirage MX-25 - Operation's Guide


The Mirage MX-25 Manual


Mirage (MX-25) - AM/FM

Please Note:
  • This Selection Is Mirage (MX-25) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.
