Galaxy (DX 86V) - AM/USB/LSB, Black

Description:

The Galaxy DX 86V will fit those tight overhead compartments in big trucks designed for a Cobra 29/Galaxy DX 929.

The Galaxy DX 86V features 40+ watt power output from dual MOSFETs, upper and lower single side band, illuminated face plate, blue lighting, frequency counter, front mic jack, clarifier, variable dimmer and adjustable power.

Galaxy - Amateur and CB Radios

Features and Specifications:

• 10 Meter Mobile Amateur Radio
• Same Size as the Galaxy DX929
• Fits Overhead Compartments in Big Trucks Designed for Cobra 29
• AM/USB/LSB, but no PA or FM
• Dual MOSFET Finals - 40+ watts

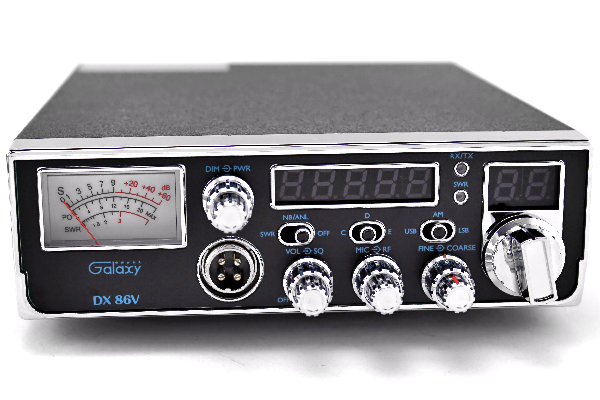

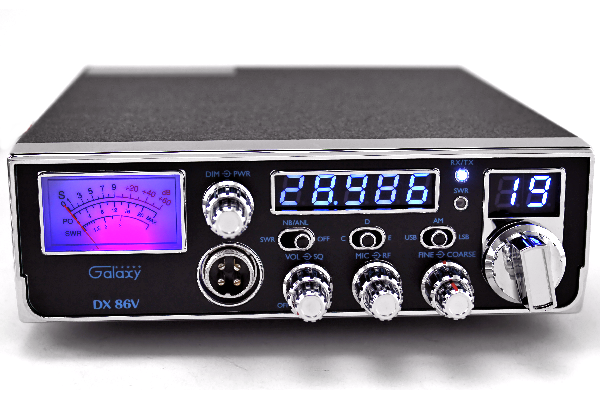

• Illuminated Face Plate
• Large Meter with Scales for Signal Strength, Power and SWR Output
• Front Mic Jack
• Blue Channel LED's
• Variable Dimmer Knob
• Vol, Sql, Mic Gain, RF Gain
• Band Selector (3 Bands)
• Variable Power Control
• ANL-NB
• Blue Lighting for Meter
• Blue Lighting for Frequency Counter
• Specifications:
  • General:
    • Model: DX 86V
    • Frequency Range: 28.765 - 29.205 MHz
    • Emission: AM/USB/LSB
    • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
    • Frequency Tolerance: 0.005%
    • Frequency Stability: 0.001%
    • Temperature Range: -20C to +50C
    • Antenna Impedance: 50 Ohms

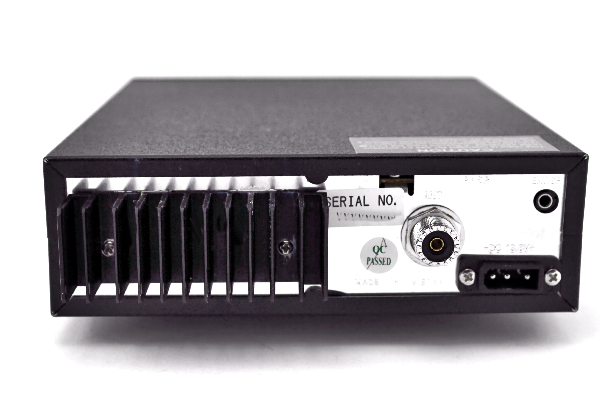

    • Antenna Connectors: Standard SO-239 type
    • Input Voltage: 13.8V DC nominal, 15.9V max, 11.7V min.
    • Current: Transmit: AM Hi Power - 5A; Receiver: Squelched, - 0.3A; Maximum Audio output, - 0.7A.
    • Size: 2-1/4" (H) x 7-1/4" (W) x 9" (D)
    • Weight: 3.708 lb.
    • Meter: Illuminated; indicates relative output power, received signal strength and SWR.
  • Transmitter:
    • Power Output: AM - 10W; SSB: 25W PEP
    • Spurious Emission: > -50 dB
    • Audio Distortion: < 10%
    • Frequency Response: AM: 300 to 2500 Hz
    • Microphone: Plug-in dynamic; with push-to-talk switch and coiled cord
    • Output Impedance: 50 ohms, unbalanced
    • Output Indicators: Meter- shows relative RF output power and SWR. Transmit LED glows red when transmitter is in operation
  • Receiver:
    • Sensitivity: AM: 0.5 microV for 10 dB Sinad; SSB 0.25 microV for 10 dB Sinad
    • Squelch Sensitivity: < 0.5 microV
    • Image Rejection: More than 50 dB
    • Audio Output Power: 3 watts @ 10% Distortion
    • Frequency Response: 300 to 2500 Hz
    • Built-in Speaker: 8 ohms, round
    • External Speaker (Not Supplied): 8 ohms; disables internal speaker when connected
• Contents:

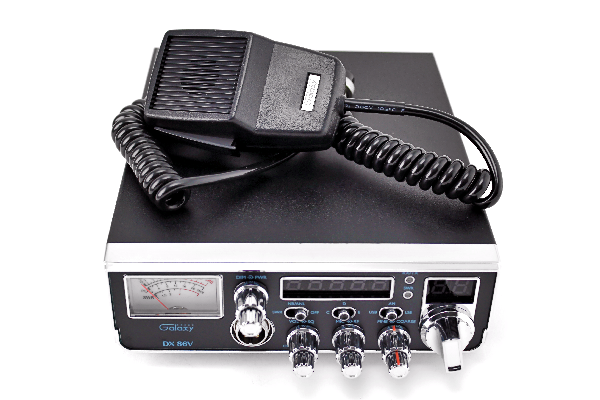

  • 10 Meter Galaxy DX 86V Radio
  • 4 Pin Stock Microphone

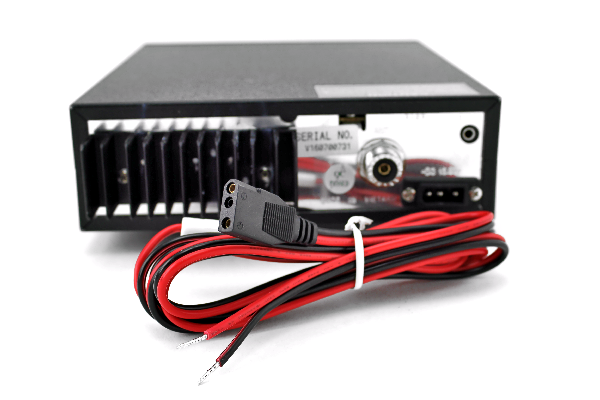

  • DC Power Cord
  • Mounting Bracket with Hardware
  • Microphone Hanger with Hardware
  • User's Manual
• UPC 0656955100861
• Color: Black
• Manufacturer's Limited Warranty - 2 Year(s)
• Sold: Each
