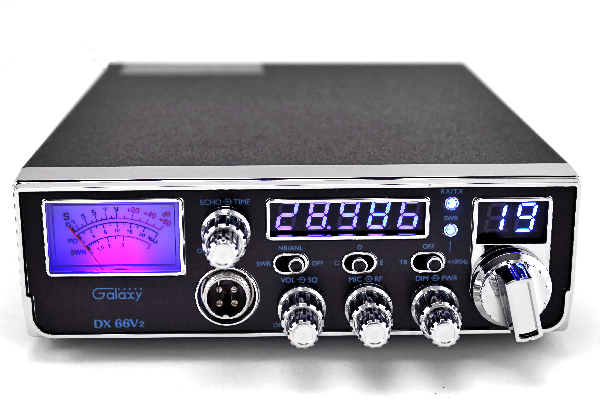

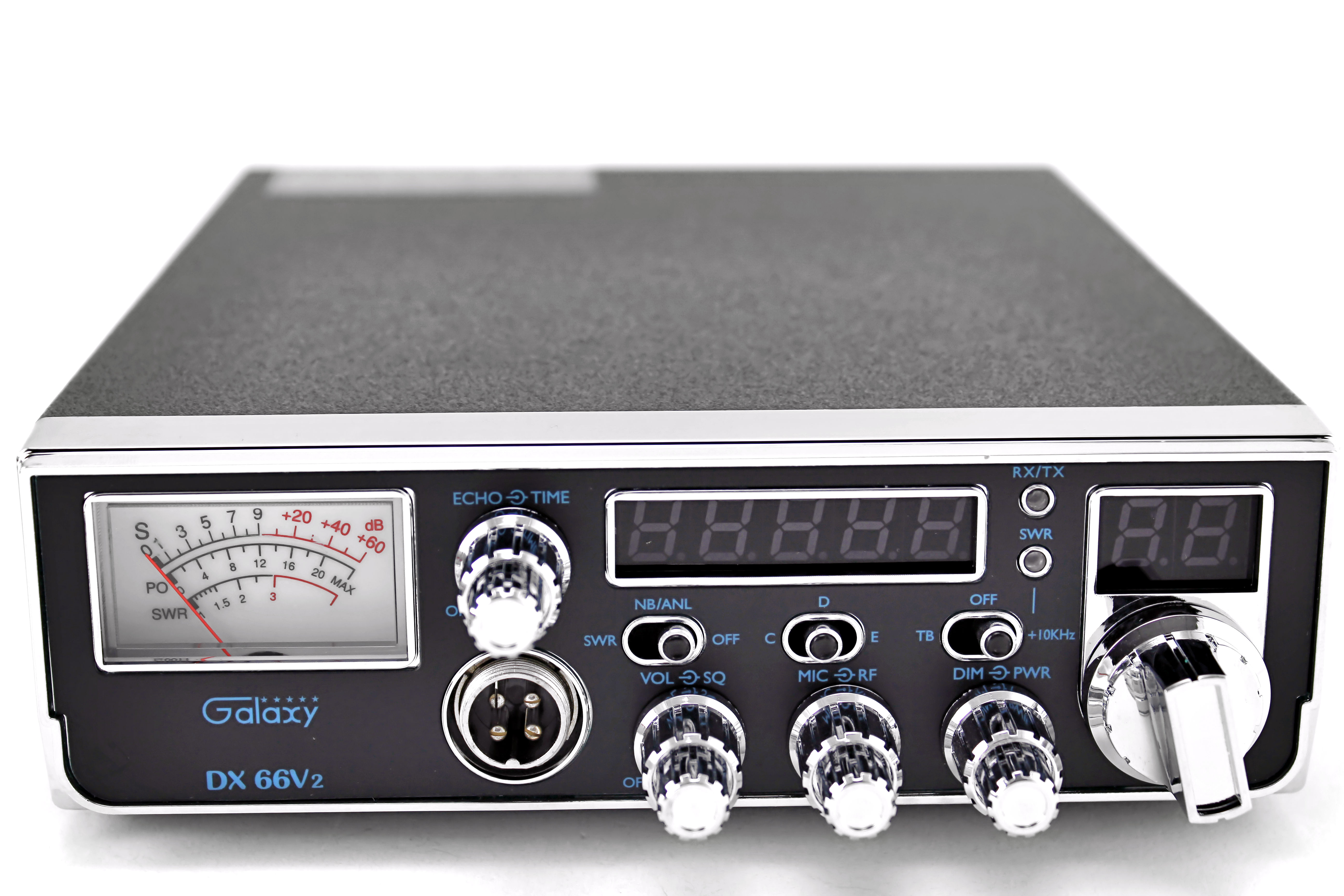

Galaxy (DX 66V2) - AM, Black

Description:

The Galaxy DX 66V2 will fit those tight overhead compartments in big trucks designed for a Cobra 29/Galaxy DX 929.

The Galaxy DX 66V2 features 40+ watt power output from dual MOSFETs, illuminated face plate, blue lighting, frequency counter, front mic jack, dual-control echo, switchable talkback, and a +10KHz Switch.

Galaxy - Amateur and CB Radios

Features and Specifications:

• 10 Meter Mobile Amateur Radio
• Same Size as the Galaxy DX929
• Fits Overhead Compartments in Big Trucks Designed for Cobra 29
• AM Only
• Dual MOSFET Finals - 40+ watts
• Illuminated Face Plate
• Large Meter with Scales for Signal Strength, Power and SWR Output
• Front Mic Jack
• Blue Channel LED's
• Variable Dimmer Knob
• Vol, Sql, Mic Gain, RF Gain
• Band Selector (3 Bands)
• Variable Power Control
• ANL-NB
• Blue Lighting for Meter
• Blue Lighting for Frequency Counter
• Specifications:
  • General:
    • Model: DX 66V2
    • Channels: 40 CH
    • Frequency Range: 28.765 - 29.205 MHz
    • Emission: AM
    • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
    • Frequency Tolerance: 0.005%
    • Frequency Stability: 0.001%
    • Temperature Range: -30C to +50C
    • Antenna Impedance: 50 Ohms

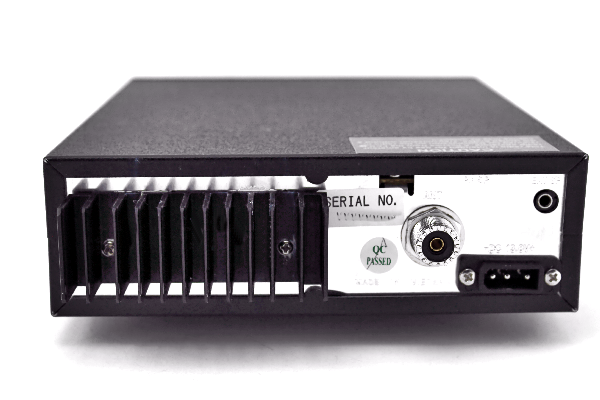

    • Antenna Connectors: Standard SO-239 type
    • Input Voltage: 13.8V DC nominal, 15.9V max, 11.7V min.
    • Current: Transmit: AM Hi Power - 5A; Receiver: Squelched, - 0.3A; Maximum Audio output, - 0.7A.
    • Size: 2-1/4" (H) x 7-1/4" (W) x 9" (D)
    • Weight: 3.615 lb.
    • Meter: Illuminated; indicates relative output power, received signal strength and SWR.
  • Transmitter:
    • Power Output: AM - Variable LO 2W/HI 10W
    • Modulation: High-and low-level Class B, Amplitude Modulation: AM.
    • Spurious Emission: 60 dB
    • Frequency Response: AM: 450 to 2500 Hz
    • Microphone: Plug-in dynamic; with push-to-talk switch and coiled cord
    • Output Impedance: 50 ohms, unbalanced
    • Output Indicators: Meter- shows relative RF output power and SWR. Transmit LED glows red when transmitter is in operation
  • Receiver:
    • Sensitivity: AM: 1.0 microV for 10 dB (S+N)/N at greater than 1/2-watt of audio output
    • Selectivity: AM: 6 dB @ 3 KHz, 50 dB @ 9 KHz
    • Image Rejection: More than 65 dB
    • IF Frequency: AM: 10.695 MHz 1st IF, 455 KHz 2nd IF
    • Adjacent-Channel Rejection: 60 dB AM
    • RF Gain Control: 45 dB adjustable for optimum signal reception
    • Automatic Gain Control (AGC): Less than 10 dB change in audio output for inputs from 10 to 1,000mV
    • Squelch: Adjustable; threshold less than 0.5 microV
    • ANL: Switchable
    • Noise Blanker: RF type
    • Audio Output Power: 4 watts into 8 ohms
    • Frequency Response: 300 to 2800 Hz
    • Built-in Speaker: 8 ohms, round
    • External Speaker (Not Supplied): 8 ohms; disables internal speaker when connected
• Contents:
  • 10 Meter Galaxy DX 66V2 Radio

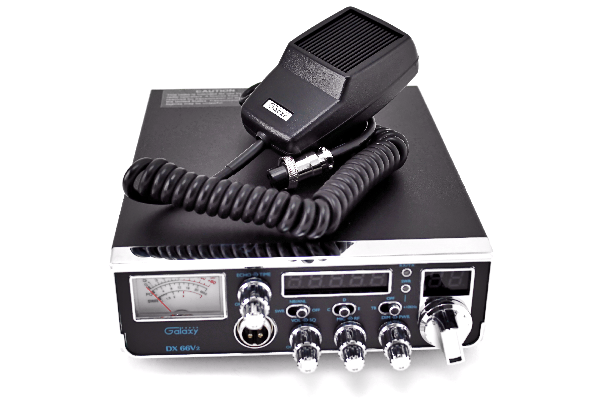

  • 4 Pin Stock Microphone

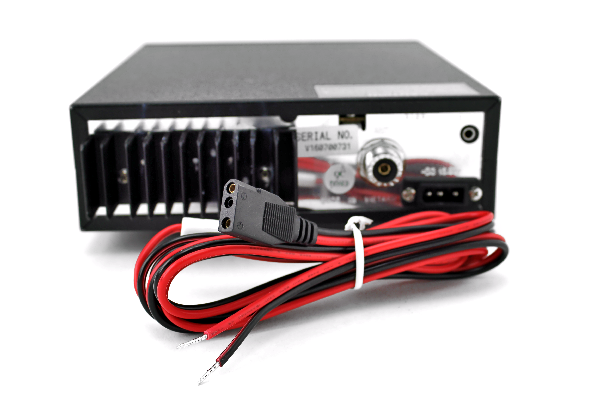

  • DC Power Cord
  • Mounting Bracket with Hardware
  • Microphone Hanger with Hardware
  • User's Manual
• UPC 0656955500661
• Color: Black
• Manufacturer's Limited Warranty - 2 Year(s)
• Sold: Each

Galaxy DX 66V2 - 10 Meter Amateur Radio

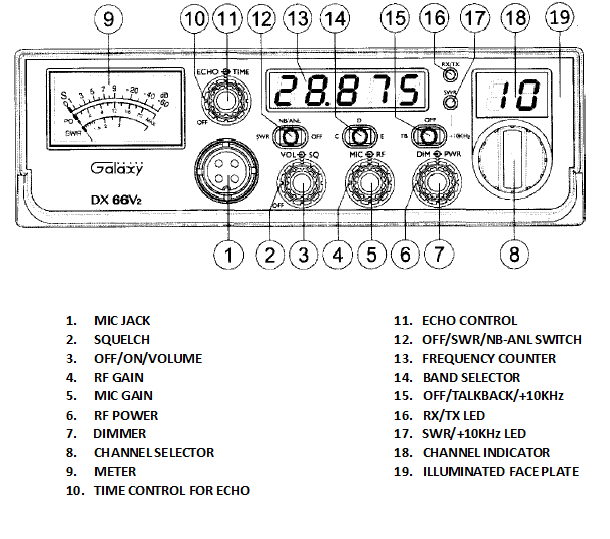

Galaxy DX 66V2 - Operation's Guide

The DX 66V2 Manual
