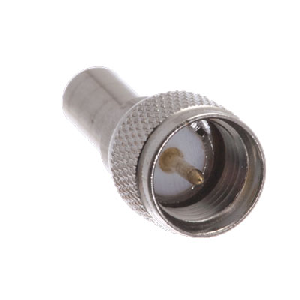

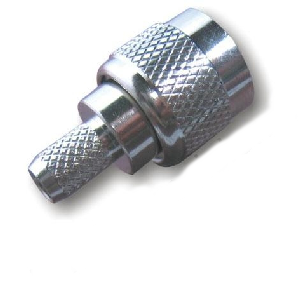

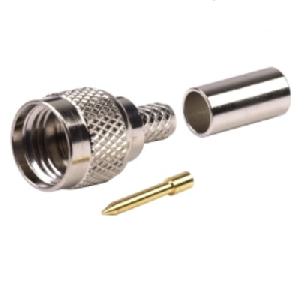

Bob's CB (MU-03Z-DGN IP) - Mini-UHF Male Crimp For RG-8X Cable Size, Straight, Each, Connectors


Product ID:   PID3743
Status: Available To Order



Bob's CB (MU-03Z-DGN IP) - Mini-UHF Male Crimp For RG-8X Cable Size, Straight, Each, Connectors



Price:
Quantity:









Bob's CB (MU-03Z-DGN IP) - Mini-UHF Male Crimp For RG-8X Cable Size, Straight, Each


Description:

UHF connectors are designed for general purpose. They are low cost and economical connectors that operate from DC to 300 Mhz. UHF connectors are generally usable through what is now known as the VHF and HF frequencies and can handle RF power levels over 1 KW.

Mini-UHF connectors are miniaturized versions of UHF connectors, designed primarily for use in bag-type mobile phones and similar applications where size, weight, and cost factors are an important consideration. Introduced in the 1970s, Mini-UHF has a 3/8-24 thread size and operates up to 2.5 GHz.

A male Mini-UHF connector is a threaded RF connector commonly used in RF applications. The threaded design makes a Mini-UHF connector a secure and reliable connection providing excellent RF performance. Mini-UHF connectors come in male and female variations.


Bob's CB



Features and Specifications:

  • Mini-UHF Male Crimp
  • Connector Type: Mini-UHF
  • Gender: Male
  • Cable Type: LMR240, RG-8X
  • Form Factor: Straight
  • Style: Crimp
  • Insulation: Delrin
  • Contact Plating: Gold
  • Body Plating: Nickel
  • Frequency: 0 - 2.5 GHz
  • Impedance: 50 Ohms
  • Sold: Each

Bob's CB (MU-03Z-DGN IP) - Mini-UHF Male Crimp For RG-8X Cable Size

Please Note:
  • This Selection Is For Bob's CB (MU-03Z-DGN IP) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Available To Order
