Wilson Electronics (301126) - Dual Band Mini Magnet Mount Antenna with SMA Male Connector, 800-1900MHz, 10ft Coax Coax

Description:

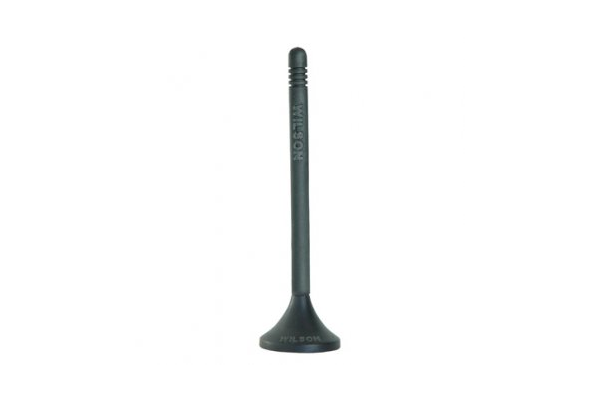

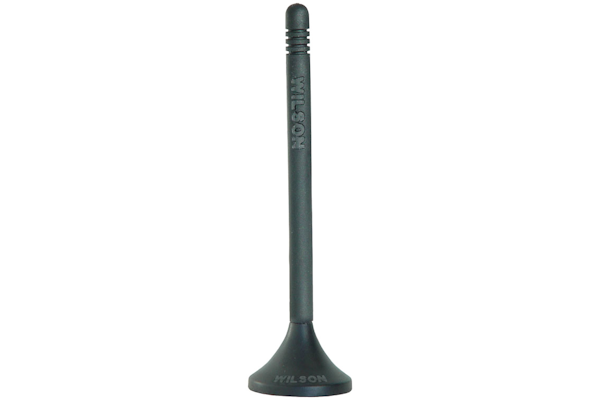

This low profile magnetic antenna is transferable between vehicles.

It is made by earth magnet and requires a metal ground plane. (Minimum 3.5 inch diameter).

Wilson Electronics - Improving your cellular signal.

Features and Specifications:

• Compact/Low Profile Mini Magnet Antenna
• SMA Male Connector
• Easy to Install
• Removable - Transfers From One Vehicle to Another
• Rare Earth Magnet
• Metal Ground Plane Required (Minimum 3.5 in. Diameter)
• UPC 0813986004876
• Color: Black
• Manufacturer's Limited Warranty - 2 Year(s)
• Sold: Each

Product Number	301113	301126
700-800 MHz Gain	1.7 dBi	1.7 dBi
824-894 MHz Gain	2.12 dBi	2.12 dBi
880-960 MHz Gain	1.5 dBi	1.5 dBi
1710-1880 MHz Gain	3.12 dBi	3.12 dBi
1850-1990 MHz Gain	3.12 dBi	3.12 dBi
2110-2170 MHz Gain	1.4 dBi	1.4 dBi
Impedance	50 ohms
Radiation	Omni
Polarization	Vertical
Ground Plane	Metal ground plane required
Connector	FME Female	SMA Male
Material	Whip - Plastic Coated Steel Wire
Coax Cable	RG174 - 10 feet / 3.05 meters
Height	4.175 inches / 10.6 cm
Mount	Rare earth magnet

Wilson Electronics (301126) - Dual Band Mini Magnet Mount Antenna with SMA Male Connector
