~weBoost (472105) - Connect 3G Omni, In-Building 3G Dual-Band Booster Kit, 800-1900MHz, Cell Phone Base Amplifiers

Product ID:   PID3649
Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.

~weBoost (472105) - Connect 3G Omni, In-Building 3G Dual-Band Booster Kit, 800-1900MHz, Cell Phone Base Amplifiers

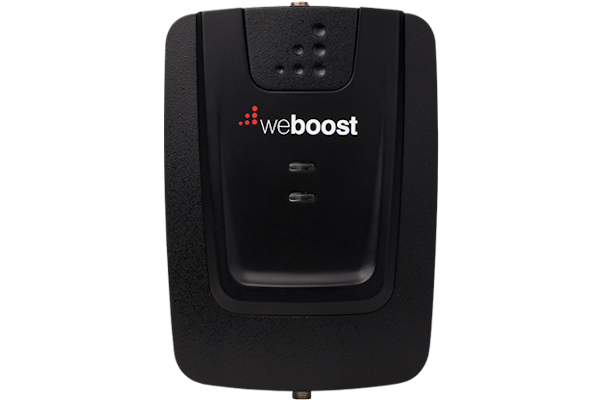

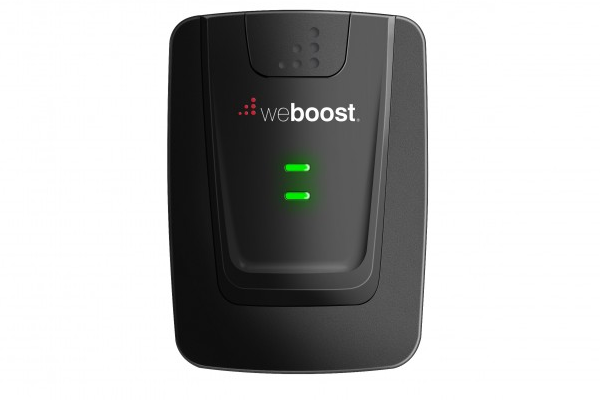

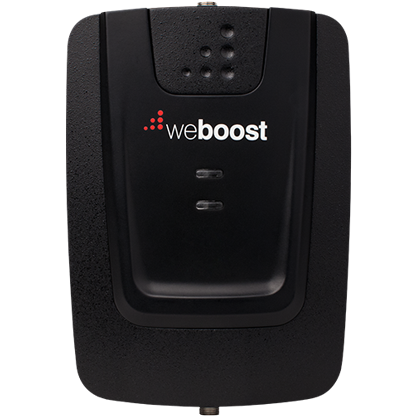

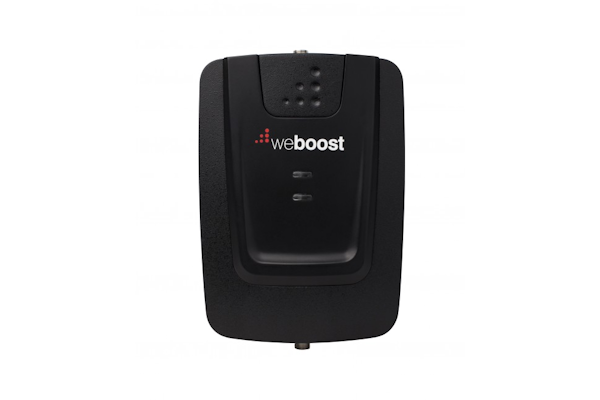

weBoost (472105) - Connect 3G Omni, In-Building 3G Dual-Band Booster Kit, 800-1900MHz


The weBoost Connect 3G with Omni Antenna gives you the reliable coverage you need throughout your home or workplace, whether you're using your smartphone, tablet or laptop to stay connected.

You rely on your cellular devices every day to stay connected-to text, email, share and entertain. Connect 3G with Omni Antenna can significantly improve your coverage when and where you need it. The Connect 3G will amplify a cellular signal throughout your entire home or workplace and on all cellular-connected devices, including tablets and laptops. Designed to meet your specific needs, Connect 3G features dynamic, self-adjusting gain controls that automatically customize the gain level on each frequency band as conditions require.

The Connect 3G Omni cellular signal booster improves coverage - including 3G and 2G data downloads - for subscribers of all North American cellular networks. For specific information about frequency bands, see the table below.

The Connect 3G Omni kits feature easy installation without compromising performance. Each kit features the adjustable-gain Connect 3G Omni dual-band signal booster. The adjustable gain controls allow the installer to optimize the unit's gain to match the requirements of the building in which it's deployed.

This kit includes the omni-directional outside antenna. The inside panel antenna, which rebroadcasts the amplified cell signal inside the building, is designed for optional flush mounting in the ceiling or wall. Components are connected using standard TV (RG-6) coax cable, which is often pre-wired in buildings.

With the Connect 3G Omni, you'll see fewer dropped calls, faster downloads and a stronger, more reliable cellular signal indoors.

At weBoost, we connect people.

Features and Specifications:

  • Building Booster Kit
  • Boosts Signal for All U.S. and Canadian Cell Carriers
  • Friendly, U.S.-Based Customer Support
  • FCC and Industry Canada Certified

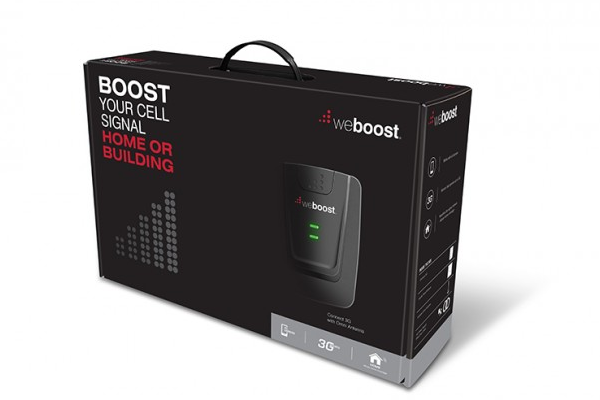

  • All Components Needed for Installation in One Package:
    • Connect 3G Omni Booster
    • AC/DC Power Supply - 6V/2.5A (859912)
    • Omni Directional Outside Antenna Kit (311201-0620)
    • with 20' White RG6 Coax Cable
    • Wall Panel (Inside) Antenna Kit (311155)
    • with 30' White RG6 Coax Cable
    • Wall Mount Bracket and Hardware
    • Omni Antenna Mount Bracket and Hardware
  • Benefits:
    • Improved Indoor Cellular Voice and Data Signal
    • Reliable Cell Signal and More Consistent Data Speeds
    • Faster Data Downloads
    • Up to 2 Hours Additional Talk Time in Weak-Signal Areas
  • UPC 0811815024491
  • Color: Black
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each

Product Number 472105
Band 5
Band 2
Max Gain 65 dB
Power Requirements 110-240 V AC, 50-60 Hz, 8 W

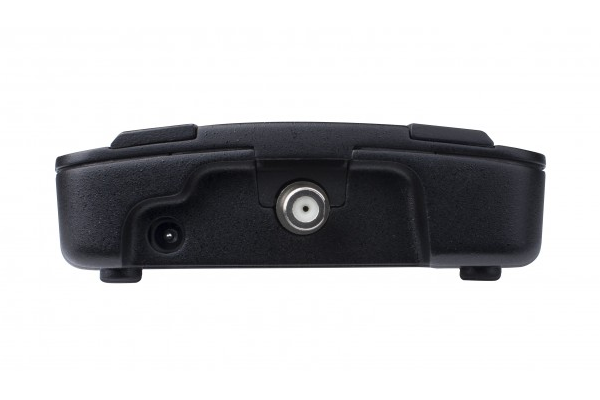

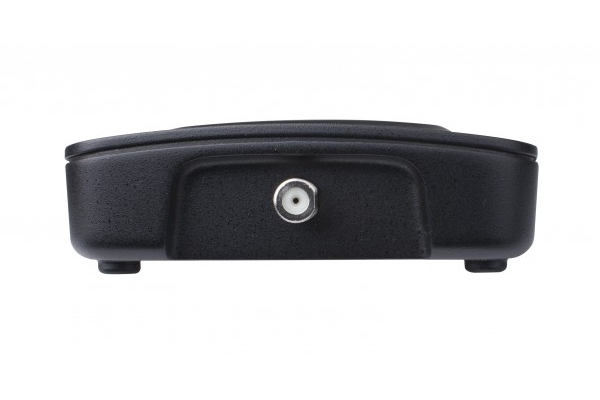

Connectors F-Female
Dimensions 6.3 x 4.2 x 1.4 in / 11.0 x 5.2 x 14.3 cm
Weight 0.47 lbs / 0.21 kg (Signal Booster Only)

weBoost Connect 3G Omni - In-Building 3G Dual-Band Booster Kit
weBoost Connect 3G Omni - In-Building 3G Dual-Band Booster Kit

weBoost Connect 3G Omni Features and Specs

weBoost Connect 3G Omni Installation Guide

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device. Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards.

weBoost (472105) - Connect 3G Omni

Please Note:
  • This Selection Is weBoost (472105) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each

Inventory Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.
