JL Audio (XD-PCS8-1B) - Premium 8 AWG 12 V Power
Connection Kit, For Single Amplifier
Description:
Premium 8 AWG 12V Power Connection System for One
Amplifier
Everything you need to make secure, high-integrity power
connections to a single amplifier with up to a 40A fuse
rating. Our compact Maxi Master Fuse Block is easy to
install and allows you to accurately fuse your amplifier.
A beefy self-tapping ground screw is also included to
help you achieve a solid ground. As with all our Premium
kits, the power wire is true AWG-spec, pure OFC copper.

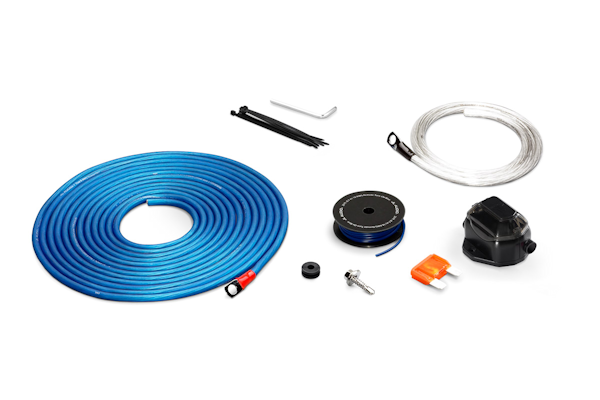

What's in the kit?
- XD-MFBW-MAXI Fuse Holder with Genuine 40A Maxi Fuse
- 19 ft. (5.8 m) Blue 8 AWG Premium Power Wire,
terminated with ring
- 3 ft. (0.9 m) Clear 8 AWG Premium Ground Wire,
terminated with ring
- 20 ft. (6.1 m) Blue Remote Turn-On Lead Wire
- Self-Tapping Ground Screw
- Rubber Firewall Grommet
- Nylon Wire Ties
- Hex Wrench for Fuse Holder
Note: This kit is appropriate for single amplifiers with
fuse ratings from 20A to 40A. Depending on the specific
fuse rating of your amplifier, you may need to purchase
an appropriate Maxi fuse separately.
Technology:
OmniSert - (Patent Pending)
Summary:
This unique block terminal design results in better
mechanical and electrical contact between the wire and
the block.
Detailed Information:
Conventional captured wire block designs use a narrow
screw that only contacts the center of the inserted wire.
When tightened, the screw digs a depression into the wire
and only applies full pressure in a relatively small
contact patch. Additionally, when smaller wires are
inserted into the block, the screw does a poor job of
gripping the smaller wire, increasing the possibility of
an unreliable connection.
JL Audio's patent-pending OmniSert technology uses a
large diameter screw with a domed contact area that
precisely matches the contour of the wire bore. This
oversized domed surface evenly applies pressure to the
wire over a larger contact area in the body of the block.
The design also does an excellent job of capturing
smaller wires in the block, eliminating the need for
ferrules or sleeves to achieve proper mechanical
integrity.
JL Audio - Ahead of the curve.
Features and Specifications:
- Premium Amplifier Connection Kit
- Fuse Holder with 40A Fuse
- 19 ft. (5.8 m) Blue 8 AWG Premium Power Wire -
Terminated with Ring
- 3 ft. (0.9 m) Clear 8 AWG Premium Ground Wire -
Terminated with Ring
- 20 ft. (6.1 m) Blue Remote Turn-On Lead Wire
- Self-Tapping Ground Screw
- Rubber Firewall Grommet
- Nylon Wire Ties
- Hex Wrench for Fuse Holder
- UPC 0699440903561
- Color: Blue/White
- Manufacturer's Limited Warranty - 2 Year(s)
- Sold: As a Kit
JL Audio (XD-PCS8-1B) - Premium 8 AWG 12 V Power
Connection Kit
Please Note:
- This Selection Is JL Audio (XD-PCS8-1B) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: As a Kit
