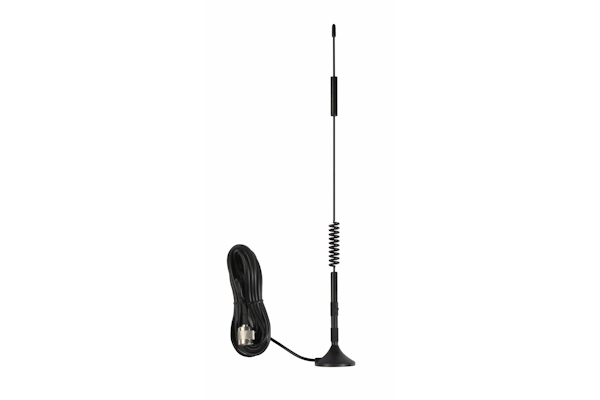

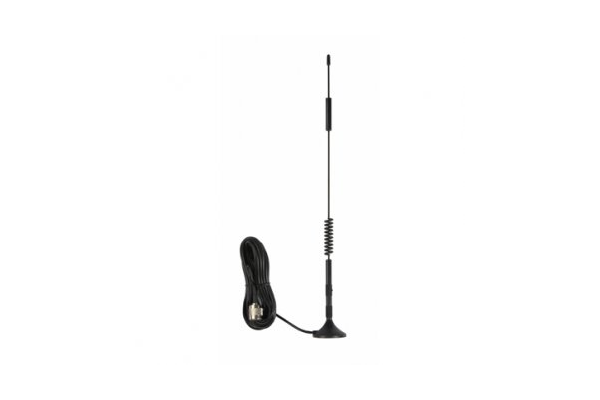

Wilson Electronics (311125) - Dual Band Omni Directional Magnet Mount Antenna with SMA Male Connector, 800-1900MHz, 12.5ft Coax

Description:

Wilson's best-selling magnet mount antennas install in seconds and are transferable between vehicles.

This antenna is made by earth magnet and requires a metal ground plane (Minimum 3.5 in. diameter).

Wilson Electronics - Improving your cellular signal.

Features and Specifications:

• Easy to Install
• Removable - Transfers From One Vehicle to Another
• Rare Earth Magnet
• Metal Ground Plane Required (Minimum 3.5 in. Diameter)
• UPC 0811815022572
• Color: Black
• Manufacturer's Limited Warranty - 2 Year(s)
• Sold: Each

Product Number	311125	311128	311703
700-800 MHz Gain	1.9 dBi	1.9 dBi	-1.9 dBi
824-894 MHz Gain	5.12 dBi	5.12 dBi	5.12 dBi
880-960 MHz Gain	3.1 dBi	3.1 dBi	4.6 dBi
1710-1880 MHz Gain	-4.0 dBi	-4.0 dBi	0.3 dBi
1850-1990 MHz Gain	6.12 dBi	6.12 dBi	6.12 dBi
2110-2170 MHz Gain	2.3 dBi	2.3 dBi	0.6 dBi
Impedance	50 ohms
Radiation	Omni
Polarization	Vertical
Ground Plane	Metal ground plane required
Connector	SMA Male	TNC Male	SMA Male
Material	Whip - Stainless Steel
Coax Cable	RG174 - 12.5 feet
Height	12.25 inches / 31.12 cm
Mount	Rare Earth Magnet

Wilson Electronics (311125) - Dual Band Omni Directional Magnet Mount Antenna with SMA Male Connector
