Del City (255385) - Ring Terminal, 3/8in Stud, 6 Gauge, Each, Connectors


Product ID:   PID3594
Status: Available To Order

Del City (255385) - Ring Terminal, 3/8in Stud, 6 Gauge, Each, Connectors



Price:
Quantity:

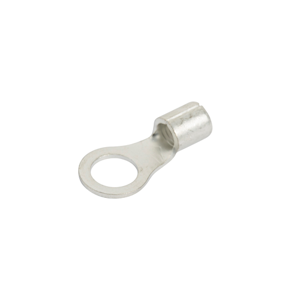

Del City (255385) - Ring Terminal, 3/8in Stud, 6 Gauge, Each


Description:

Non-insulated ring terminals are connectors that are used to mate, connect, or terminate a single wire, while allowing a connection to a screw or stud type electrical connection. Non-insulated ring terminals are best suited when special performance or installation characteristics are not needed. Non-insulated ring terminals are commonly used in automotive and marine vehicles, but can be used in various other electrical applications.

  • The barrel on this series can be crimped anywhere on the barrel surface.
  • The brazed seam will not separate under pressure or operating stress.
  • Stranded wire cannot escape the confines of the sealed barrel during or after crimping.
  • Rated to 600 volts maximum, building wire; 1000 volts maximum, signs and fixtures.
  • Temperature rating: 105C (221F).

Del City - World-class electrical and transportation supplies.


Features and Specifications:

  • Ring Terminal, 3/8" Stud, 6-Ga
  • Product Group: Ring Terminals
  • Product Type: Non-Insulated Ring Terminals
  • Insulation Material: Non-Insulated
  • Termination Type: Crimp
  • Size/Diameter: 3/8" Stud
  • Temperature Range: 230 F
  • Wire Range: 6 Ga
  • Standards: UL, CSA
  • Sold: Each


Del City (255385) - Ring Terminal

Please Note:
  • This Selection Is Del City (255385) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Available To Order
