McMaster-Carr (92147A031) - Stainless Steel Split Lock
Washer, 3/8in Screw Size, .68in OD, .09in min Thick
Description:

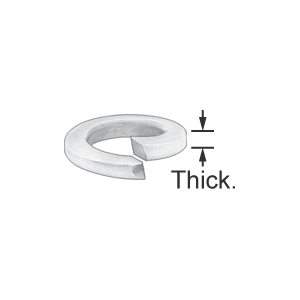

Type 316 Stainless Steel Split Lock Washer
Compared to regular flat washers, split lock (or spring
lock) washers reduce the likelihood that your fastened
joint will loosen under shock or vibration.
Under compression, spring tension forces the split ends
to dig into mating surfaces and hold tight.
Type 316 stainless steel provides better corrosion
resistance than 18-8 stainless steel. 18-8 stainless
steel offers excellent corrosion resistance.
Both materials may be mildly magnetic and have a minimum
Rockwell hardness of C35.
McMaster-Carr - Over 550,000 Products
Features and Specifications:
- Split Lock Washer
- Type 316 Stainless Steel
- 3/8" Screw Size

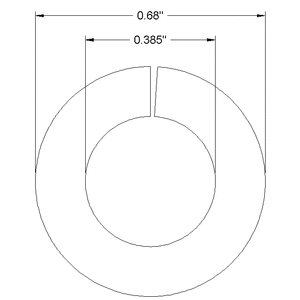

- 0.68" Outer Diameter

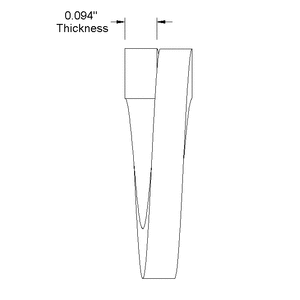

- 0.09" min Thick
- 0.38" Inner Diameter
- Sold: Each
McMaster-Carr (92147A031) - Stainless Steel Split Lock
Washer
Please Note:
- This Selection Is McMaster-Carr (92147A031) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
