JL Audio (C2-570x) - 5 x 7in / 6 x 8in (125 x 180mm) Coaxial Speaker System, JL Audio Mobile Audio


Product ID:   PID3540
Status: Available To Order


JL Audio (C2-570x) - 5 x 7in / 6 x 8in (125 x 180mm) Coaxial Speaker System, JL Audio Mobile Audio



Price:
Quantity:









JL Audio (C2-570x) - 5 x 7in / 6 x 8in (125 x 180mm) Coaxial Speaker System


Description:

Coaxial Speaker System: 5 x 7 / 6 x 8-inch (125 x 180 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter

The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.

Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.

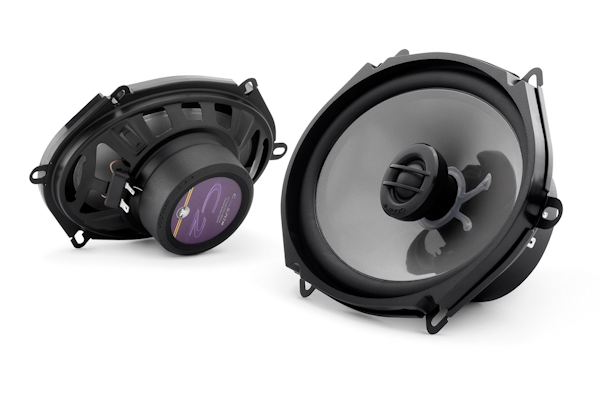

The C2-570x system features 5 x 7 / 6 x 8-inch (125 x 180 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.

Grilles are not available for this speaker system.

Sonic character: Clean and Dynamic


Technology:

Silk Dome Tweeter - Light, fast moving silk dome material promotes high-frequency accuracy.

Silk is a natural material with inherently good characteristics as a tweeter diaphragm. In addition to being very light in weight, silk exhibits excellent damping properties, which reduces ringing and resonances in the tweeter's passband, leading to a smooth, pleasing high-frequency character free from unnatural sibilance or exaggerated brightness. Compared to a harder material dome, a silk tweeter does not exhibit as much ultra-high frequency extension, but is preferred by many audiophiles for its overall balance.


JL Audio - Ahead of the curve.


Features and Specifications:

  • Coaxial Speaker System: 5 x 7 / 6 x 8-inch (125 x 180 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter
  • Continuous Power Handling (RMS): 60 W
  • Peak Music Power: 225 W
  • Recommended RMS Amplifier Power (per Ch.): 15 - 100 W
  • System Efficiency: 89.0 dB @ 1 W / 1 m
  • System Nominal Impedance: 4 Ohm
  • System Frequency Response: 53 Hz - 22 KHz +/- 3 dB
  • UPC 0699440996143
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: As a Pair

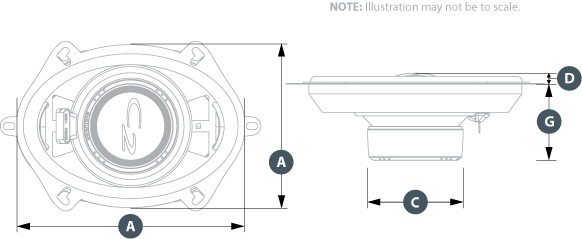

C2-570x - Physical Specifications
C2-570x - Physical Specifications

Frame Outer Diameter* (A) 5.47 x 7.68 in / 139 x 195 mm
Grille Tray Outer Diameter (B) N/A
Magnet Outer Diameter (C) 2.76 in / 70 mm
Frontal Coaxial Tweeter Protrusion** (D) 0.47 in / 12 mm
Frontal Grille Protrusion*** (E) N/A
Mounting Hole Diameter (F) N/A
Mounting Depth (G) 2.43 in / 62 mm
* Does not take into account mounting tabs
** Frontal coaxial tweeter protrusion measured from mounting surface


The C2-570x Product Manual


JL Audio (C2-570x) - 5 x 7in / 6 x 8in (125 x 180mm) Coaxial Speaker System

Please Note:
  • This Selection Is JL Audio (C2-570x) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: As a Pair





Inventory Status: Available To Order
