JL Audio (C2-525x) - 5.25in (130mm) Coaxial Speaker System, JL Audio Mobile Audio


Product ID:   PID3539 Specials
Status: Out of Stock - Can Not Order At This Time


JL Audio (C2-525x) - 5.25in (130mm) Coaxial Speaker System, JL Audio Mobile Audio



Price:
Quantity:

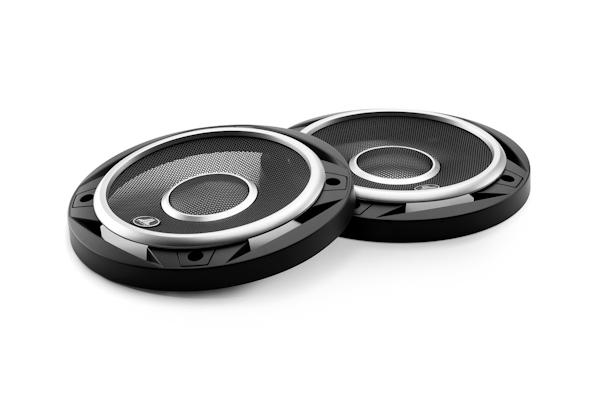

JL Audio (C2-525x) - 5.25in (130mm) Coaxial Speaker System


Description:

Coaxial Speaker System: 5.25-inch (130 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter

The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.

The C2-525x system features 5.25-inch (130 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.

Speaker grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Dynamic


Technology:

Silk Dome Tweeter - Light, fast moving silk dome material promotes high-frequency accuracy.

Silk is a natural material with inherently good characteristics as a tweeter diaphragm. In addition to being very light in weight, silk exhibits excellent damping properties, which reduces ringing and resonances in the tweeter's passband, leading to a smooth, pleasing high-frequency character free from unnatural sibilance or exaggerated brightness. Compared to a harder material dome, a silk tweeter does not exhibit as much ultra-high frequency extension, but is preferred by many audiophiles for its overall balance.


JL Audio - Ahead of the curve.


Features and Specifications:

  • Coaxial Speaker System: 5.25-inch (130 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter
  • Continuous Power Handling (RMS): 60 W
  • Peak Music Power: 225 W
  • Recommended RMS Amplifier Power (per Ch.): 15 - 100 W
  • System Efficiency: 89.0 dB @ 1 W / 1 m
  • System Nominal Impedance: 4 Ohm
  • System Frequency Response: 63 Hz - 22 KHz +/- 3 dB
  • UPC 0699440996136
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: As a Pair

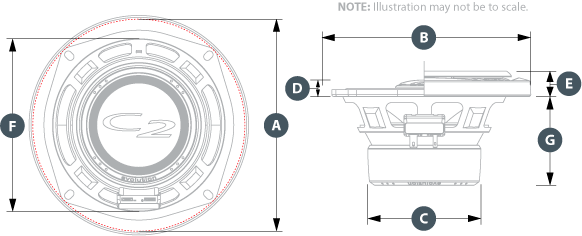

C2-525x - Physical Specifications
C2-525x - Physical Specifications
Frame Outer Diameter* (A) 5.20 in / 132 mm
Grille Tray Outer Diameter (B) 6.01 in / 153 mm
Magnet Outer Diameter (C) 2.76 in / 70 mm
Frontal Coaxial Tweeter Protrusion** (D) 0.46 in / 12 mm
Frontal Grille Protrusion*** (E) 0.72 in / 18 mm
Mounting Hole Diameter (F) 4.56 in / 116 mm
Mounting Depth (G) 2.50 in / 64 mm
* Does not take into account mounting tabs
** Frontal coaxial tweeter protrusion measured from mounting surface
*** Frontal grille protrusion measured from mounting surface


The C2-525x Product Manual


JL Audio (C2-525x) - 5.25in (130mm) Coaxial Speaker System

Please Note:
  • This Selection Is JL Audio (C2-525x) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: As a Pair





Inventory Status: Out of Stock - Can Not Order At This Time
