Galaxy (DX 47HP) - AM/FM/PA, 7-Color Changing Display, Black, 10 Meter Mobile Amateur Radios


Product ID:   PID3249
Status: Out of Stock - Can Not Order At This Time


Galaxy (DX 47HP) - AM/FM/PA, 7-Color Changing Display, Black, 10 Meter Mobile Amateur Radios



Price:
Quantity:





"Optimum Performance" Upgrade Option:





Galaxy (DX 47HP) - AM/FM/PA, 7-Color Changing Display, Black


Description:

The Galaxy DX 47HP features 100 watt maximum power output, a seven (selectable) color backlight display, front mic jack, and a large easy-to-read Galaxy meter.

Galaxy - Amateur and CB Radios


Features and Specifications:

  • 10 Meter Mobile Amateur Radio
  • AM/FM/PA
  • 100 Watts Peak Power / 40 Watt Carrier
  • Large Galaxy Meter with Scales for Signal Strength, Power Output, and SWR Level
  • 14 Amps Maximum Current Usage
  • Bottom Mounted Heat Sink
  • Internal Cooling Fan
  • Seven Selectable Backlight Colors
  • Echo with Dual Controls
  • Front Mic Jack
  • +10Khz Circuit
  • Blue Channel Digits
  • Variable Dimmer Control Pot
  • Modulation Lamp with On/Off Switch
  • Automatic SWR Circuit
  • High SWR Alert LED
  • Talkback Circuit with On/Off Switch
  • Roger Beep Circuit
  • Variable Power Output Pot
  • Indicator Lights for:
    • +10KHz Indicator
    • Roger Beep/SWR Warning Indicator
    • RX/TX Indicator
  • Specifications:
    • General:
      • Model: DX 47HP
      • Frequency Range: 28.015 to 28.465 MHz
      • Emission: AM/FM
      • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
      • Frequency Tolerance: 0.005%
      • Frequency Stability: 0.001%
      • Temperature Range: -20C to +50C
      • Antenna Impedance: 50 Ohms
      • Antenna Connectors: Standard SO-239 type
      • Input Voltage: 13.8V DC nominal, 15.9V max, 11.7V min.
      • Current: Transmit: AM/FM Hi Power - 13A; Receiver: Squelched, - 0.3A; Maximum Audio output, - 0.7A.
      • Size: 2-7/8" (H) x 7-3/4" (W) x 10-1/4" (D)
      • Weight: 6 lb.
      • Meter: Illuminated; indicates relative output power, received signal strength and SWR
    • Transmitter:
      • Power Output: AM/FM - 50 watt
      • Modulation: AM - Variable capacitance 90% +/- 10%; FM - 4KHz +/- 1KHz
      • Spurious Emission: 50 dB
      • Frequency Response: AM and FM: 300 to 2500 Hz
      • Microphone: Plug-in dynamic; with push-to-talk switch and coiled cord
      • Output Impedance: 50 ohms, unbalanced
      • Output Indicators: Meter- shows relative RF output power. Transmit LED glows red when transmitter is in operation
    • Receiver:
      • Sensitivity: AM: 0.5 microV for 10 dB (S+N)/N at greater than 1/2-watt of audio output; FM: 1.0 microV for 20 dB (S+N)/N at greater than 1/2-watt of audio output
      • Selectivity: AM/FM: 6 dB @ 3 KHz, 50 dB @ 9 KHz
      • Image Rejection: More than 65 dB
      • IF Frequency: AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
      • Adjacent-Channel Rejection: 60 dB AM
      • RF Gain Control: 45 dB adjustable for optimum signal reception
      • Automatic Gain Control (AGC): Less than 10 dB change in audio output for inputs from 10 to 1,000mV
      • Squelch: Adjustable; threshold less than 0.5 microV
      • ANL: Switchable
      • Noise Blanker: RF type
      • Audio Output Power: 4 watts into 8 ohms
      • Frequency Response: 300 to 2500 Hz
      • Built-in Speaker: 8 ohms, round
      • External Speaker (Not Supplied): 8 ohms; disables internal speaker when connected
  • Contents:
    • 10 Meter Galaxy DX 47HP Radio
    • 4 Pin Stock Microphone
    • DC Power Cord
    • Mounting Bracket with Hardware
    • Microphone Hanger with Hardware
    • User's Manual
  • UPC 0656955100472
  • Color: Black
  • Manufacturer's Limited Warranty - 3 Year(s)
  • Sold: Each

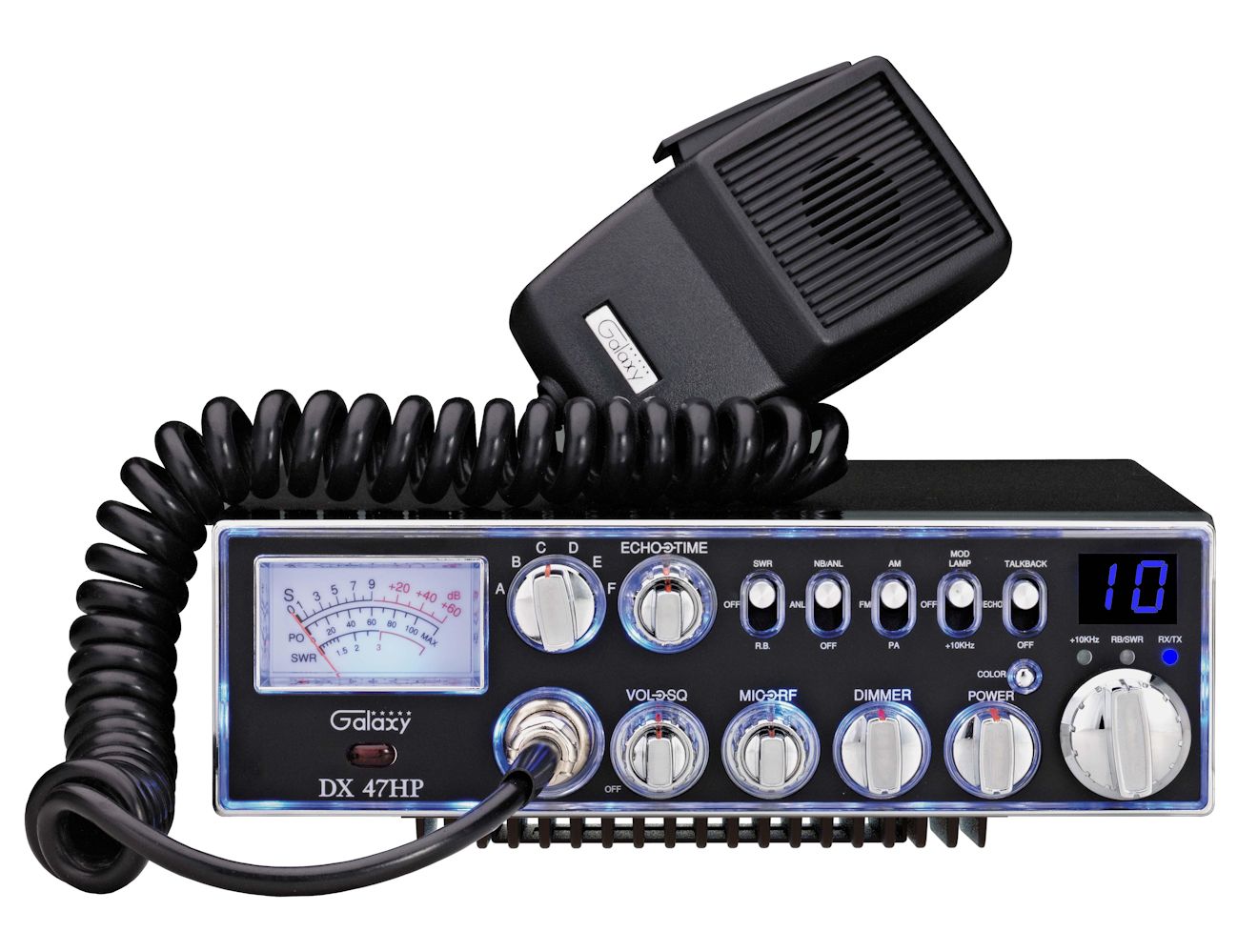

Galaxy DX 47HP - 10 Meter Amateur Radio

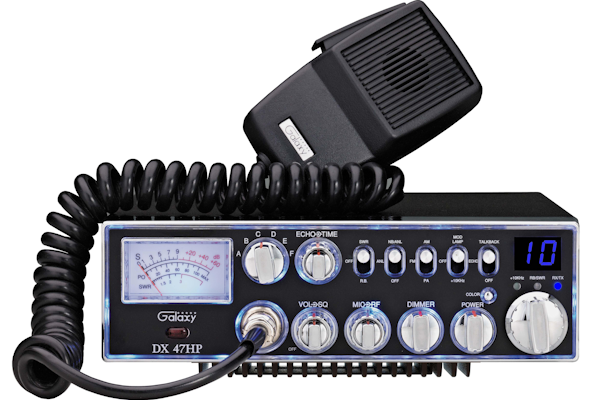

Galaxy DX 47HP - 10 Meter Amateur Radio

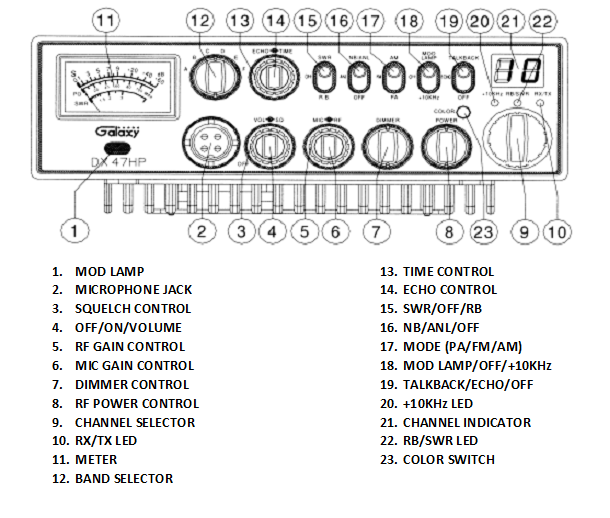

Galaxy DX 47HP - Operation's Guide
Galaxy DX 47HP - Operation's Guide


The DX 47HP Manual


Galaxy (DX 47HP) - AM/FM/PA

Please Note:
  • This Selection Is Galaxy (DX 47HP) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
