FireStik (2M-CKB) - 2-Meter Base Antenna, 144-148MHz, 45in White Fiberglass Radiating Element, Four 20in Aluminum Radials, 49in Height, 44in Diameter, 5/8 Wave, Amateur Base Antennas


Product ID:   PID3122
Status: Out of Stock - Can Not Order At This Time

FireStik (2M-CKB) - 2-Meter Base Antenna, 144-148MHz, 45in White Fiberglass Radiating Element, Four 20in Aluminum Radials, 49in Height, 44in Diameter, 5/8 Wave, Amateur Base Antennas



Price:
Quantity:




Shipping Information:





FireStik (2M-CKB) - 2-Meter Base Antenna, 144-148MHz, 45in White Fiberglass Radiating Element, Four 20in Aluminum Radials, 49in Height, 44in Diameter, 5/8 Wave


Description:

The radiating element of this 2-Meter amateur base antennas is a 6dBi 5/8 wave design. The core material is 3/8" (9.5mm) solid fiberglass that is wound with 19ga heavy insulated copper wire. The radiating element is approximately 45" long (114cm). All of this is covered with white, UV stabilized PVC shrink tubing. The antenna base threads are 3/8"-24.

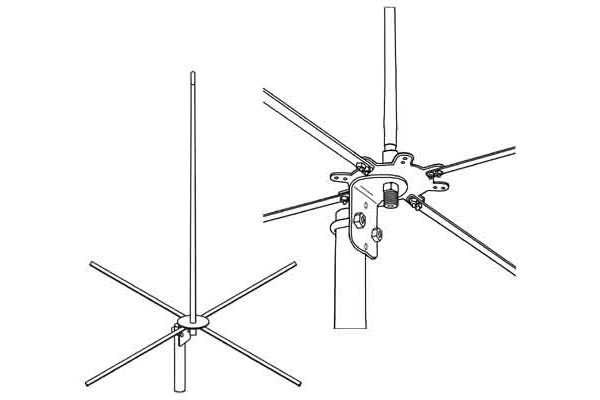

A combination angle bracket, u-bolt, hub plate and antenna stud is central to the assembly of the base antenna. This assembly will mount to the top of any mast up to 1.5" (38mm) in diameter. The kit comes with four (4) structural aluminum (6061) radials that measure 1/8"x1/2"x20" (3mm x 13mm x 51cm). Each is pre-drilled to mount to the hub plate. The antenna stud utilizes a standard SO-239 base for easy hook-up with any UHF (PL-259) terminated coaxial cable. For static and electrical discharge concerns, see in-line AR-10 arrestor connector.

The hub plate is a unique item that was designed to bring this base antenna together as a commercial kit. For the hobbyist, it will offer numerous opportunities to be creative.

The top to bottom height of the entire assembly is a mere 49" (124cm) and the diameter of the radial circle is 44" (112cm). All mounting and assembly hardware is included.


FireStik Antenna Company - Manufacturer of FireStik brand CB Antennas, Safety Flags and accessories.


Features and Specifications:

  • 2-Meter Amateur Base Antenna
  • 144-148 MHz
  • Radiating Element:
    • 6 dBi 5/8 Wave
    • Solid Fiberglass Wound with Heavy Insulated Copper Wire
    • 45" Long
    • 3/8" -24 Standard Threading
  • (4) Structural Aluminum Radials
  • Top to Bottom Height is 49"
  • Diameter of Radial Circle is 44"
  • Included Angle Bracket, U-Bolt, Hub Plate and Antenna Stud are Central to the Assembly
  • UPC 0716414500301
  • Color: White
  • Manufacturer's Limited Warranty - 1 Year
  • Sold: Each


FireStik (2M-CKB) - 2-Meter Base Antenna

Please Note:
  • This Selection Is FireStik (2M-CKB) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each
