FireStik (2M-4) - 2-Meter Antenna, Tunable Tip, 144-148MHz, Fiberglass, 4ft, Black, 5/8 Wave, Amateur Mobile Antennas


Product ID:   PID3121
Status: Out of Stock - Can Not Order At This Time

FireStik (2M-4) - 2-Meter Antenna, Tunable Tip, 144-148MHz, Fiberglass, 4ft, Black, 5/8 Wave, Amateur Mobile Antennas



Price:
Quantity:




Shipping Information:





FireStik (2M-4) - 2-Meter Antenna, Tunable Tip, 144-148MHz, Fiberglass, 4ft, Black, 5/8 Wave


Description:

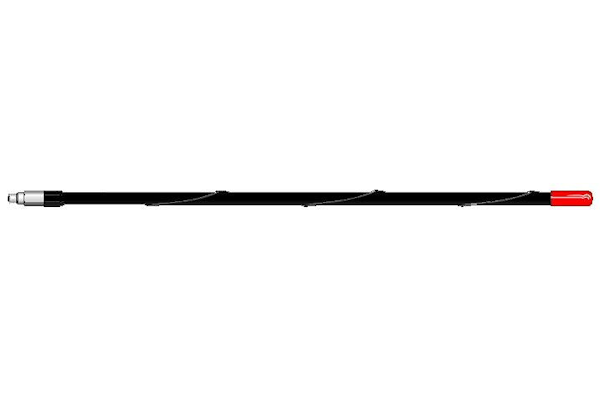

This FireStik 2-Meter antenna is an omni-directional antenna for the 144 to 148 MHz, 2 meter amateur band. It offers the lowest angle of radiation of any mobile VHF antenna and may very well be the best kept secret among those in the know. This 5/8 wave (physical & electrical) antenna has a nominal impedance of 50-52 ohms and can achieve average tuned SWR of 1.5 to 1 over 4 MHz. The over all length is 48.2" (122.4cm). Gain over isotropic is 6 dB. Gain over 1/4 wave is 3 dB. The antenna is rated at 400 watts AM, 800 P.E.P.

Other important features besides the wide bandwidth and low angle of radiation, is the fact that they are static noise resistive and may be tuned to higher frequencies - test bench results showed the frequency raising 300 KHz for every 0.125" of fiberglass/wire removed from the antenna.

The core is 3/8" (0.375" or 10mm) solid fiberglass (special FireStik formula for balance of ruggedness and flexibility). The conductor is that of double insulated 19 gauge copper wire. The covering is made of high quality PVC with added UV and pigment stabilizers. The antenna base is chrome plated machine brass with standard 3/8"-24 threads for full compatibility with all FireStik mounts and accessories.


FireStik Antenna Company - Manufacturer of FireStik brand CB Antennas, Safety Flags and accessories.


Features and Specifications:

  • 2-Meter Amateur Mobile Antenna
  • 144-148 MHz
  • Solid Fiberglass for Ruggedness and Flexibility
  • 5/8 Wave
  • 400 Watts
  • Tunable-Tip
  • 4' Long
  • 3/8"-24 Threaded Base
  • UPC 0716414500257
  • Color: Black
  • Manufacturer's Limited Warranty - 5 Year(s)
  • Sold: Each


FireStik (2M-4) - 2-Meter Antenna

Please Note:
  • This Selection Is FireStik (2M-4) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
